16
* When connecting the power cable, make sure the direction of OT terminal is
correct. Don’t stack two OT terminals on one power port

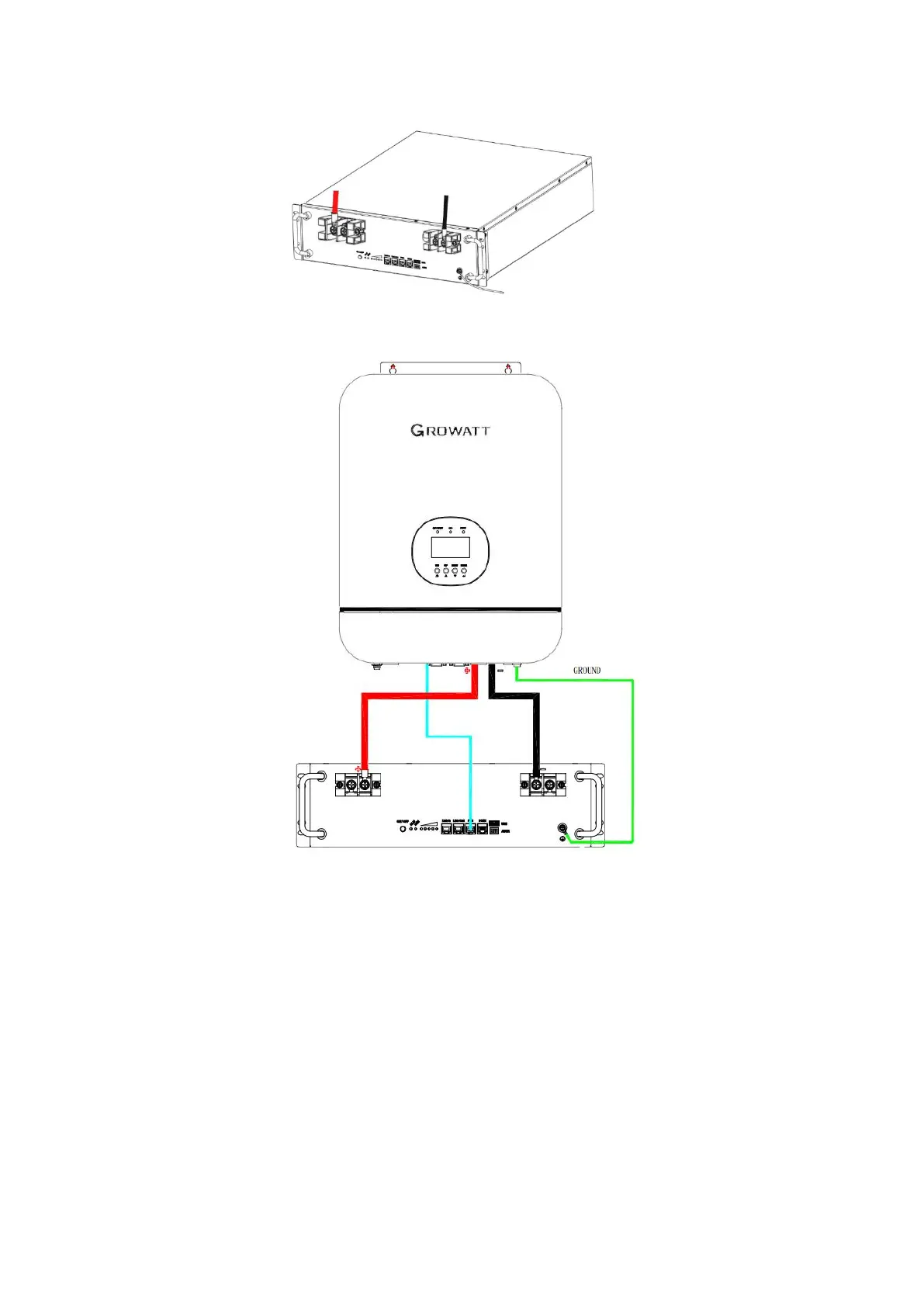

Figure 6：Single Battery Installation Diagram
1) The battery is not allowed to be wired in the running state, and the battery should all be off
before installation
2) Please install the communication line first, then protect the unused ports and USB ports against
dust, and finally install the power cable
3) To ensure the safety, don't forget to connect ground wire
4) We recommend installing a circuit breaker between the inverter and the battery. For the
specifications of the circuit breaker, we recommend using a molded case circuit breaker with a
rated operating voltage greater than 80Vdc and a rated operating current greater than 200A.
