GRILL MEISTER GGW 84 B1
8 - English

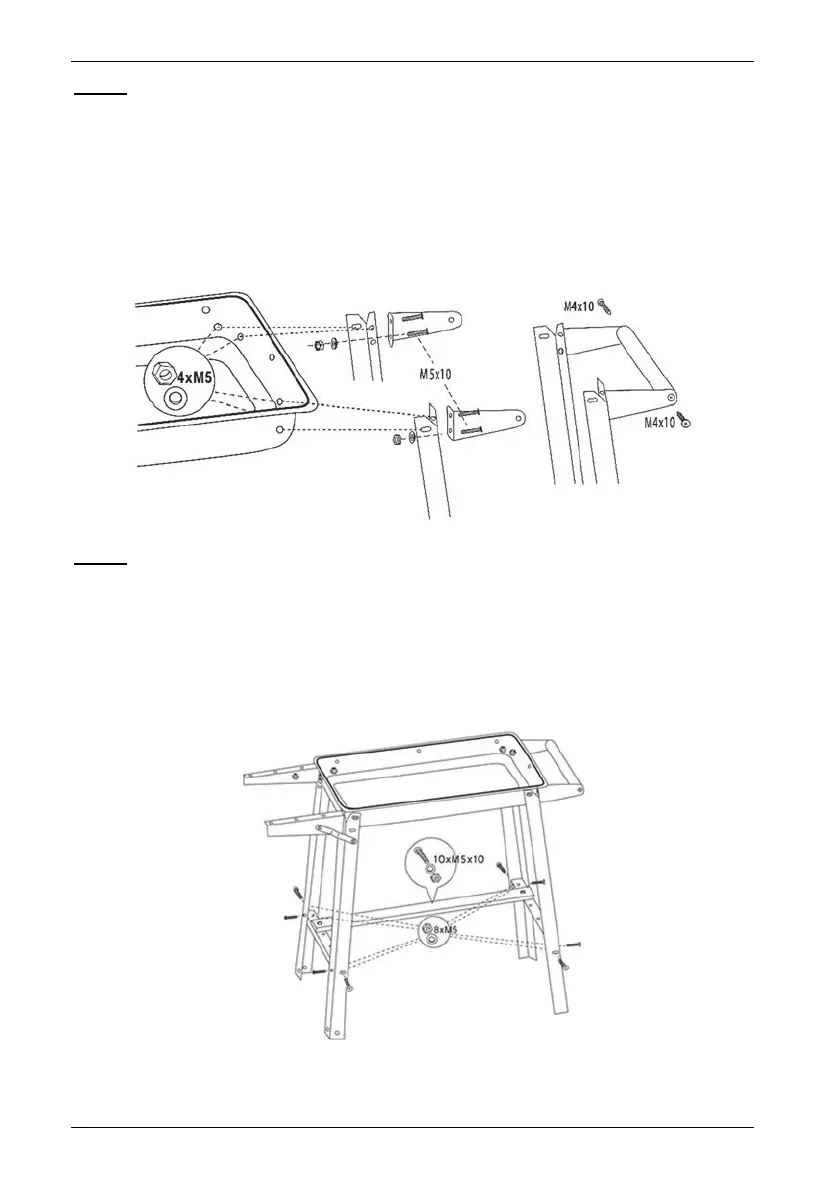

Step 2
Hand-screw the handle brackets (7) to the legs (8). Use the bottom hole of the handle bracket
(7) for this. You will need a screw (19), a washer (23) and a nut (21) in each case.
Fasten the legs (8) and mounted handle brackets (7) to the right side of the charcoal basket
(5). To do this, use the top hole of the legs (8). You will need two screws (19), two washers
(23) and two nuts (21) for each leg (8).
Screw the handle (6) between the handle brackets (7). You will need two screws (20).
Now tighten all the screws.
Step 3
Screw the two cross-supports (9) between the legs (8) and the wheel
legs (13). The five holes on the cross-supports (9) should be facing upwards. You will need four
screws (19), four washers (23) and four nuts (21) for each cross-support (9).
Hand-screw the five shelf slats (10) to the cross-supports (9). You will need ten screws (19), ten
washers (23) and ten nuts (21).
Now tighten all the screws.
