The Instrument

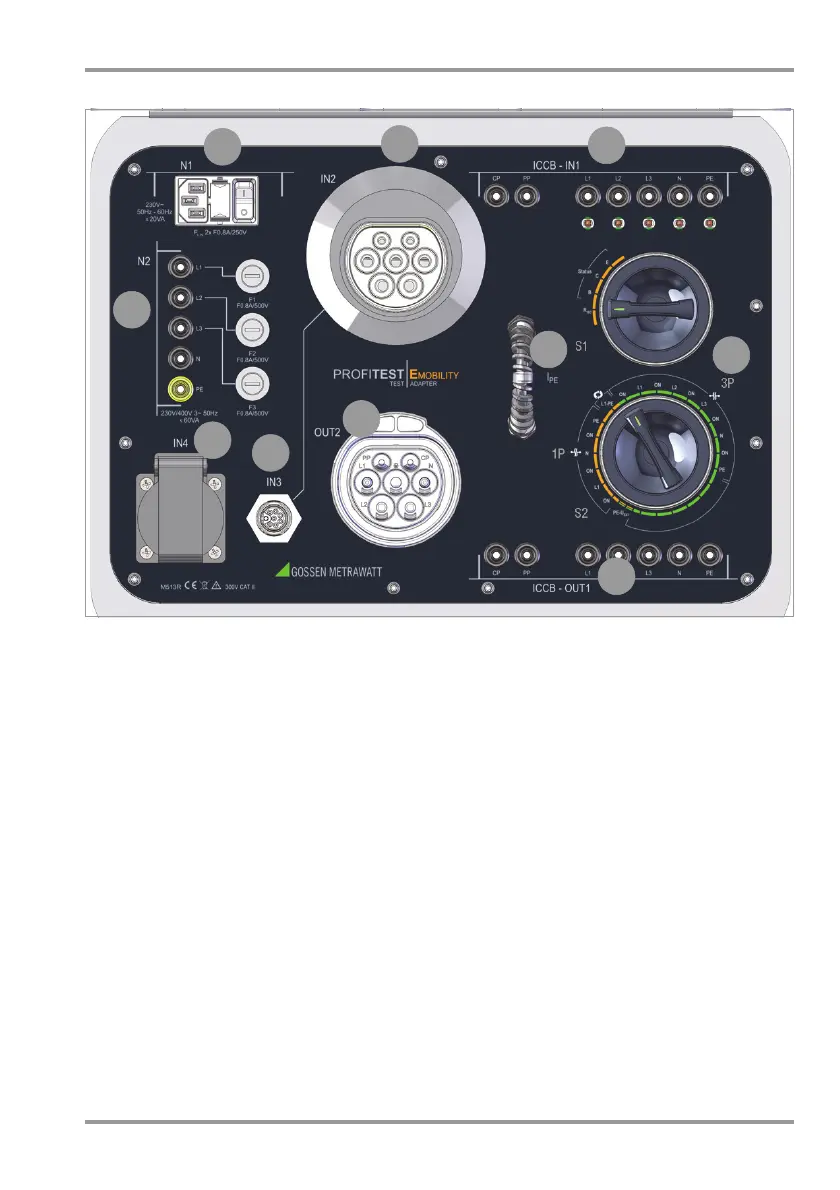

4.4 Connections Overview

1 N2: Input sockets for 3-phase mains

connection with the help of a CEE

adapter (16 A, 32 A with five 4 mm

safety sockets) and mains connection

fuses F1, F2 and F3 for the 3 phases

2 N1: Inlet plug for mains connection,

mains connection fuses F

for L and N

3 IN2: Socket (MENNEKES) for connecting

a 3-phase, mode 3 charging cable

(charging station end) via a type 2

charging plug

4 ICCB-IN1*: Input sockets wired parallel to

connection sockets IN2, IN3 and IN4 for

connecting a test instrument for protec-

tive conductor and insulation measure-

ment

5 Rotary selector switches (S1 and S2):

See description on page 3.

6 ICCB-OUT1*: Charging cable output sock-

ets wired parallel to OUT2 for connecting

a test instrument for protective conduc-

tor and insulation measurement

7 OUT2: Socket (MENNEKES) for connect-

ing a mode 2 charging cable (vehicle

end) via a type 2 charging plug

8 IN3: Input socket in order to be able to

connect a charging cable with specific

plug per IEC 62196 or CEE plug

(charging station end) via adapter

9 IN4: Earthing contact input socket for

connecting the supply plug of a single-

phase, mode 2 charging cable (charging

station end)

: Loop for measuring protective conduc-

tor current with a current clamp trans-

former

*ICCB = in-cable control box: control box inside the mode 2 charging cable
