Fault Simulation

6 Fault Simulation

Mode 2 and 3 charging cables can be tested

with the test adapter with simulation of faults.

Attention!

In any case, comply with the manu-

facturer’s recommendations con-

cerning measurements/tests to be

conducted in accordance with

DGUV, regulation 3.

The following faults can be simulated for

mains power supply to a mode 2 charging

cable:

• Reversed wires

• Interruption of individual conductors

(undervoltage detection)

• PE to phase (interference voltage in the

protective conductor due to connection

of the phase conductor to the protective

conductor)

The evaluation of the test object’s reaction to

each respective fault is strictly visual:

• ICCB active or inactive

(indicator lamp on the ICCB)

• Fault indication by means of LEDs on the

test adapter

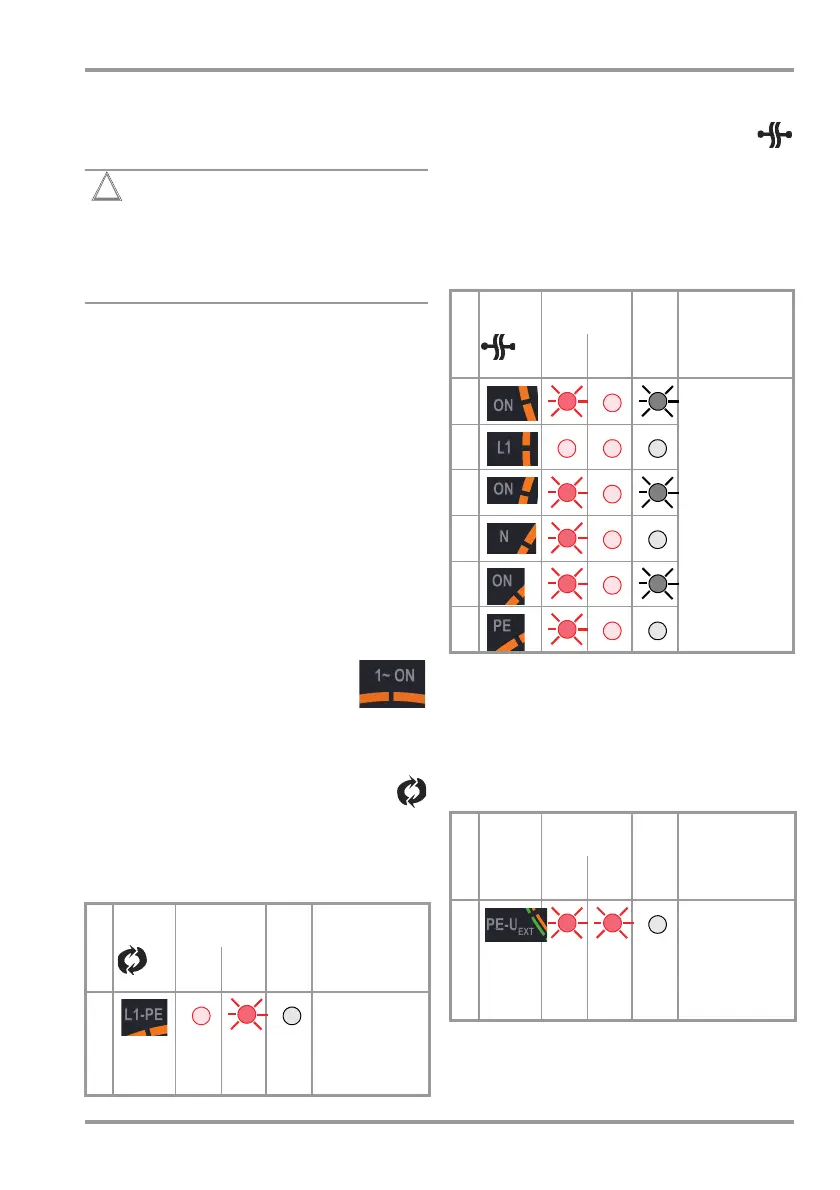

6.1 Mode 2 Charging Cable

(Single-phase)

➭ Switch mains power on by

turning the top rotary selector switch (S1)

to the Status C position.

6.1.1 Simulation of Reversed Wires

➭ Turn the bottom rotary selector

switch (S2) to the L1-PE position in

the orange area for single-phase wire re-

versal.

Instead of the

L1 LED

, the

PE LED

must light up.

6.1.2 Simulated Interruption

➭ Start with the bottom rotary selec-

tor switch (S2) in the first ON position in

the orange area for single-phase inter-

ruption.

➭ Switch through the positions, one after

the other, in the clockwise direction (ta-

ble from top to bottom):

6.1.3 Simulation of PE to Phase (PE-U

EXT

)

➭ Set the bottom rotary selector switch

(S2) to the PE-U

EXT

position.

Interference voltage is switched to PE with

touch protection.

The L1 LED and the PE LED light up.

Step

Rotary

switch

Test

Adapter

ICCB

Action

LED

The test object’s

correct reaction to

the simulated fault

can be found in the

manufacturer’s op-

erating instructions.

Step

Rotary

switch

Test

Adapter

ICCB

Action

LED

The test object’s

correct reaction to

the simulated fault

can be found in

the manufac-

turer’s operating

instructions.

Step

Rotary

switch

Test

Adapter

ICCB

Action

LED

The test object’s

correct reaction to

the simulated fault

can be found in the

manufacturer’s op-

erating instruc-

tions.
