Connecting the cooking hob to the power mains
• Power mains protection must conform to the relevant regulations.
• Before connecting the appliance, make sure the voltage specified on the rating plate conforms to
the voltage of the power mains.
• There should be a switching device in the electrical installation that can disconnect all poles of
the appliance from the power mains, with a minimum clearance of 3 mm between the contacts
when open. Suitable devices include fuses, protective switches etc.
• The connection should be adjusted to the current and fuses.
• After installation, the parts carrying electrical current and insulated parts shall be protected against
contact.
WARNING!
The appliance may only be connected by an authorised expert. False connection can destroy
parts of the appliance. In such case, there is no right to warranty! Disconnect the appliance from
the power mains before any repair or maintenance operation.

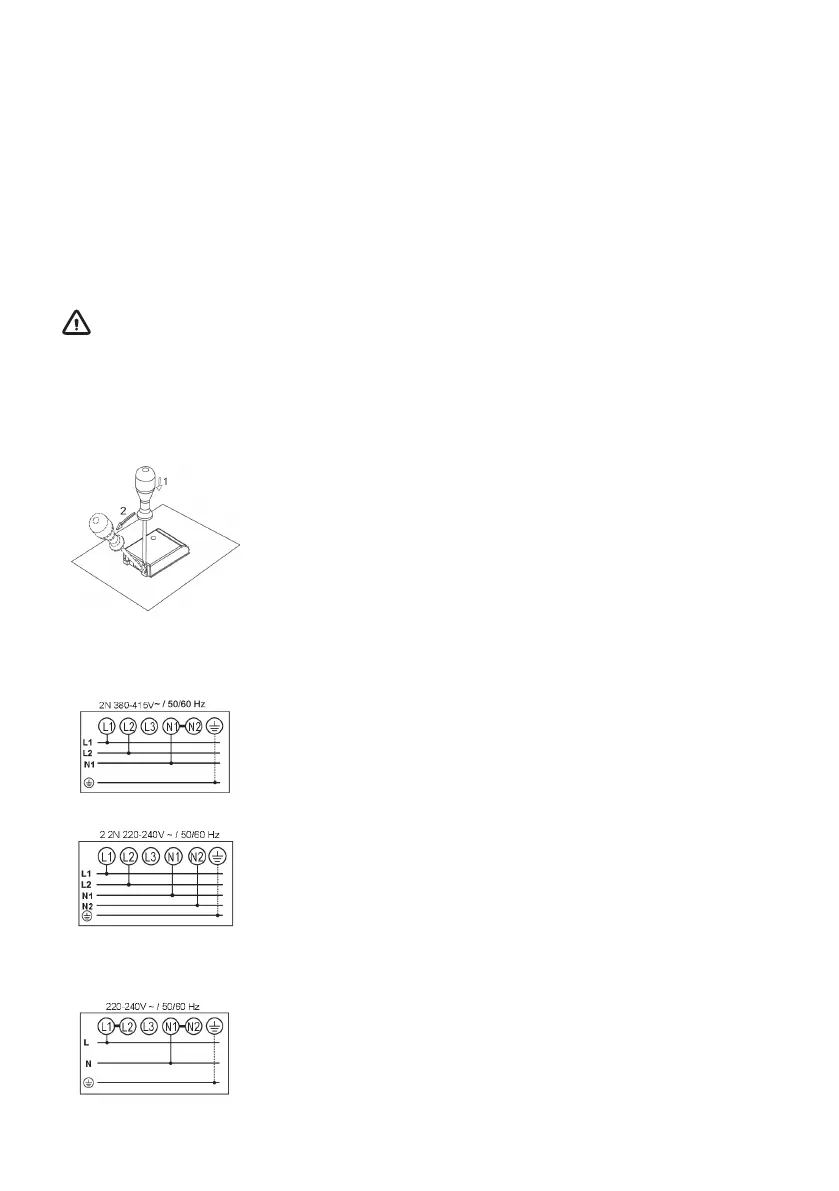

Connection diagram
Jumpers (connecting bridges) are placed in the dedicated slot on the
clamp.
The following may be used for connection:
• PVC insulated connection cables type H05 VV-F or H05V2V2-F with
yellow-and-green protective conductor, or other equivalent or superior
cables.
• Exterior cable diameter should be at least 8.00 mm.
Normal connection:
2 phases, 1 neutral conductor (2 1N, 380-415 V~/50/60 Hz):
• Voltage between phases and neutral conductor is 220-240 V~.
• Voltage between the two phases is 380-415 V~. Install a jumper
between the terminals 4–5. The group should include at least two
16-ampere fuses. Diameter of the power cord core should be at least
2.5 mm².
2 phases, 2 neutral conductors (2 2N, 220-240V~/50/60 Hz):
• Voltage between phases and neutral conductors is 220- 240 V~.
• The group (installation) should include at least two 16-ampere fuses.
Diameter of the power cord core should be at least 2.5 mm².
Special connection:
Single-phase connection (1 1N, 220-240 V~/50/60 Hz):
Voltage between phase and neutral conductor is 220-240 V~. Install
jumpers between the terminals 1–2 and 4–5. The group (installation)
should be fitted with a fuse of at least 32 A. Power cord core diameter
should be at least 4 mm².
