6. PRODUCT INSTALLATION
Selection of Installation Equipment

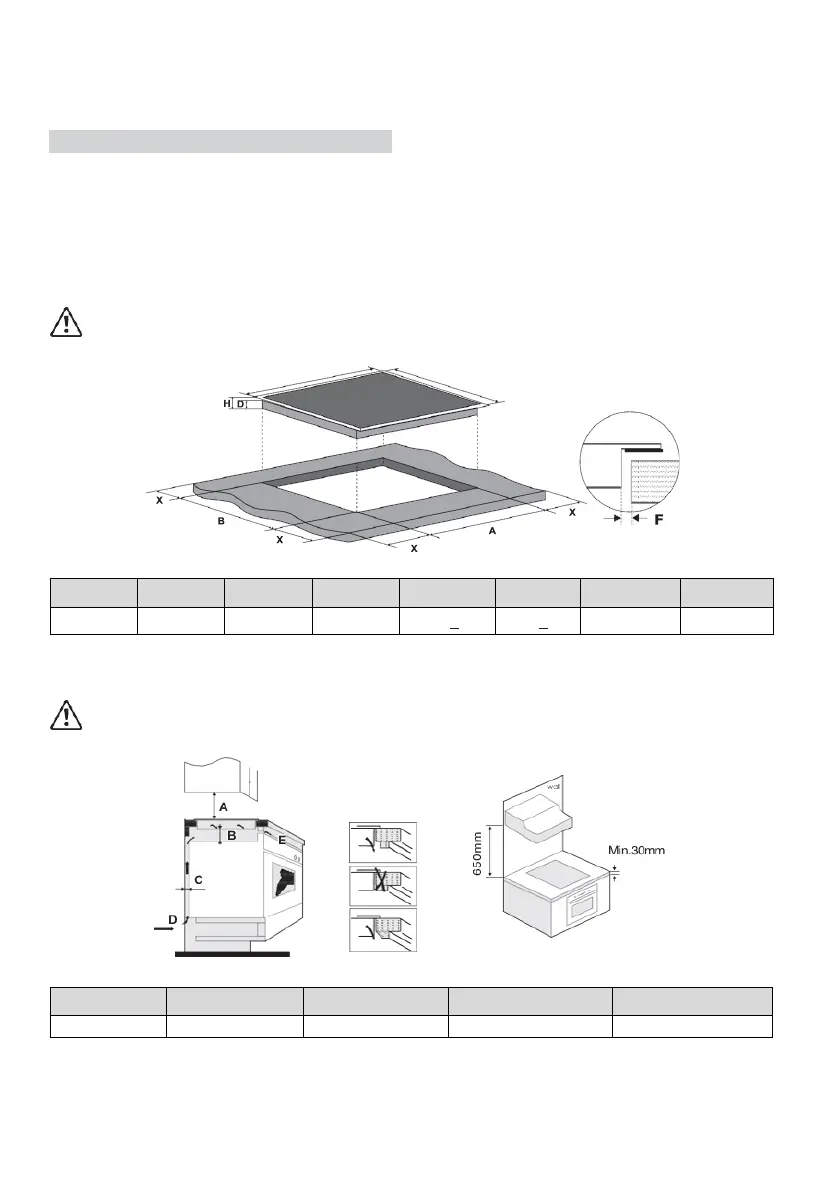

Cut out the work surface according to the dimensions shown in the drawing.
A minimum clearance of 5 cm must be maintained around the hole for installation and use. Ensure
that the thickness of the work surface is at least 30 mm. Choose a heat-resistant and insulated
material for the work surface (wood and similar fibrous or hygroscopic materials must not be used
as work surface material unless they are impregnated) to avoid electric shock and major
deformation due to heat radiation from the heating plate. As shown below:
Note
: The safety distance between the sides of the hob and the inner surfaces of the worktop
should be at least 3mm.
L(mm)
W(mm)
H(mm)
D(mm)
A(mm)
B(mm)
X(mm)
F(mm)
590
520
53
49
560+1
480+1
50 min
3 min
Under all circumstances, make sure that the induction hob is well ventilated and that the air inlets and
outlets are not blocked. Make sure that the induction hob is in good working order. As shown below
Note: The safety distance between the hob and the cupboard above the hob should be at least
650 mm.
A(mm)
B(mm)
C(mm)
D
E
650 min
15 min
20 min
Air intake
Air exit 2mm
WARNING: Ensuring Adequate Ventilation
L
W
SEAL
Min. 3 mm
