BMT-P2/144A(550W)P18
STANDARD INSTALLATION MANUAL FOR POLARIS 580W (HOOP INSTALLATION)
FIGURE 19
FIGURE 20

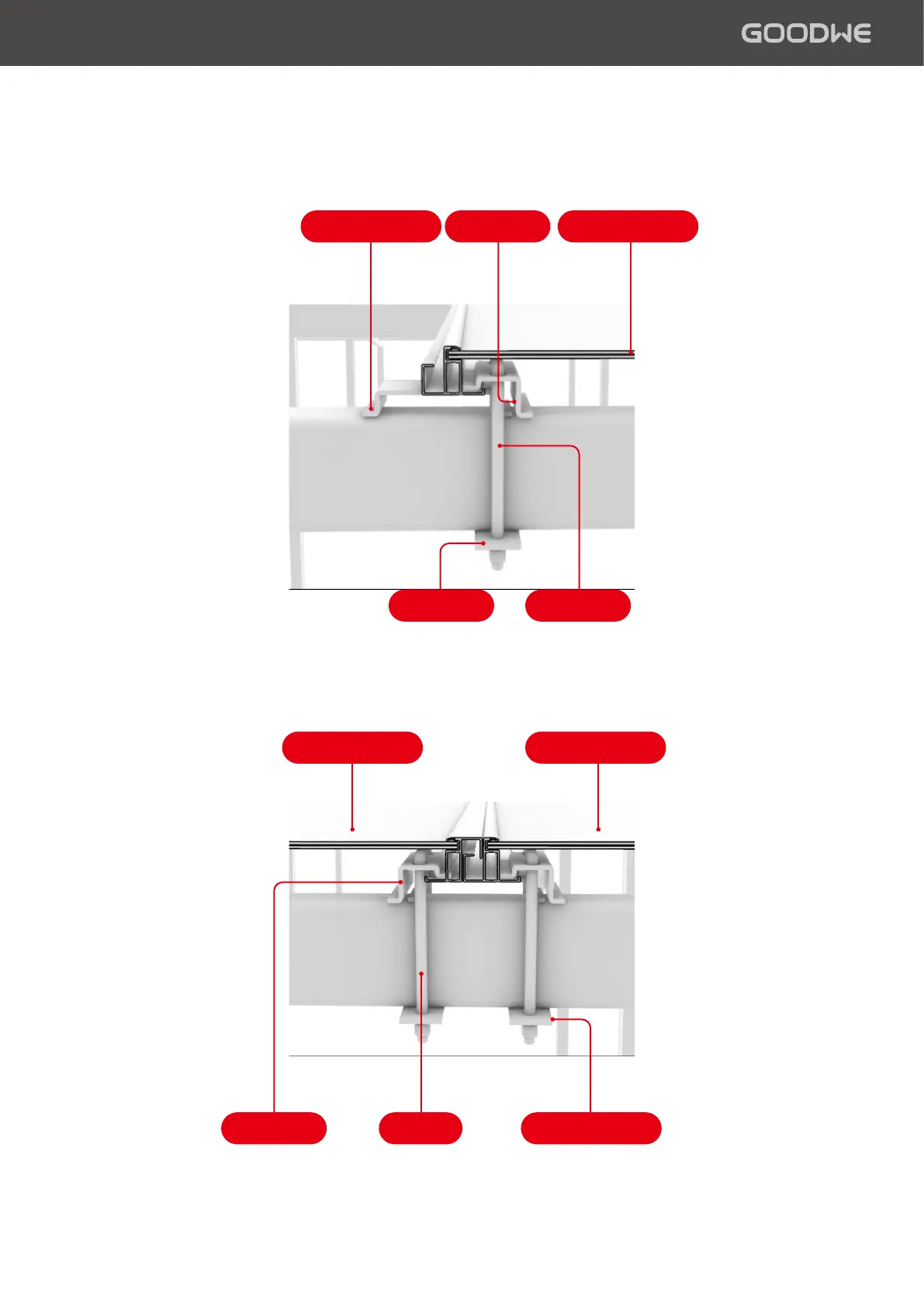

● Install the upper fastener assemblies on the upper right side of the second product, as
shown in the section view in Figure 18；
● Refer to the installation steps of the rst product and x the Mounting suppo on the lower
left of the second product. The section view is as Figure 19.
● Fix the ttings on the lower right of the product and the section view is as shown in Figure
20.
Mounting suppo The second product
The second product
Hoop Square plateTall clip
The rst product
Tall clip
Square plate Hoop
