06 Electrical Connection
User Manual V1.2-2024-10-30
WARNING
• The PE cable on the top wiring board cannot replace the PE cable connected to the AC
output port. Make sure that both of the two PE cables are securely connected.
• Make sure that all the grounding points on the top wiring board are equipotential
connected when there are multiple inverters.
• To improve the corrosion resistance of the terminal, you are recommended to apply silica
gel or paint on the ground terminal after installing the PE cable.
• The PE cable should be prepared by the customer.
6�4 Connecting the PE cable
WARNING
• Do not connect loads between the inverter and the AC switch directly connected to the
inverter.
• The residual current monitoring unit (RCMU) is integrated into the inverter. When the
leakage current exceeds the allowable limit, the inverter will disconnect from the grid
quickly.
• When the inverter is powered on, the BACK-UP AC port is live. Power o the inverter rst
if maintenance is required for the loads connected with BACK-UP ports. Otherwise, it may
cause electric shock.
6�5 Connecting AC Output Cable, Load Output Cable, Battery Cable, and
PV Input Cable
Safety Precautions - AC Output Cable

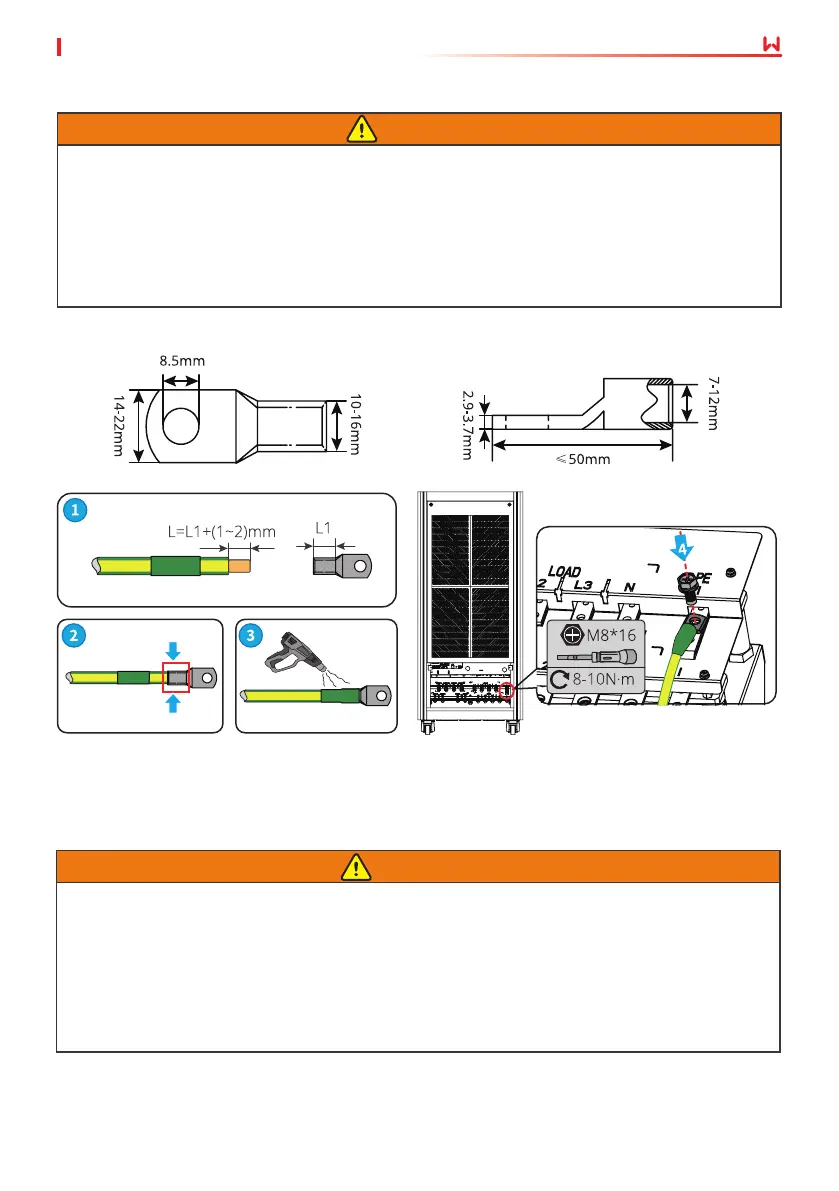

PE terminals need to be provided by customer, and the reference specications are as follows:
