06 Electrical Connection
28
User Manual V1.2-2025-01-16

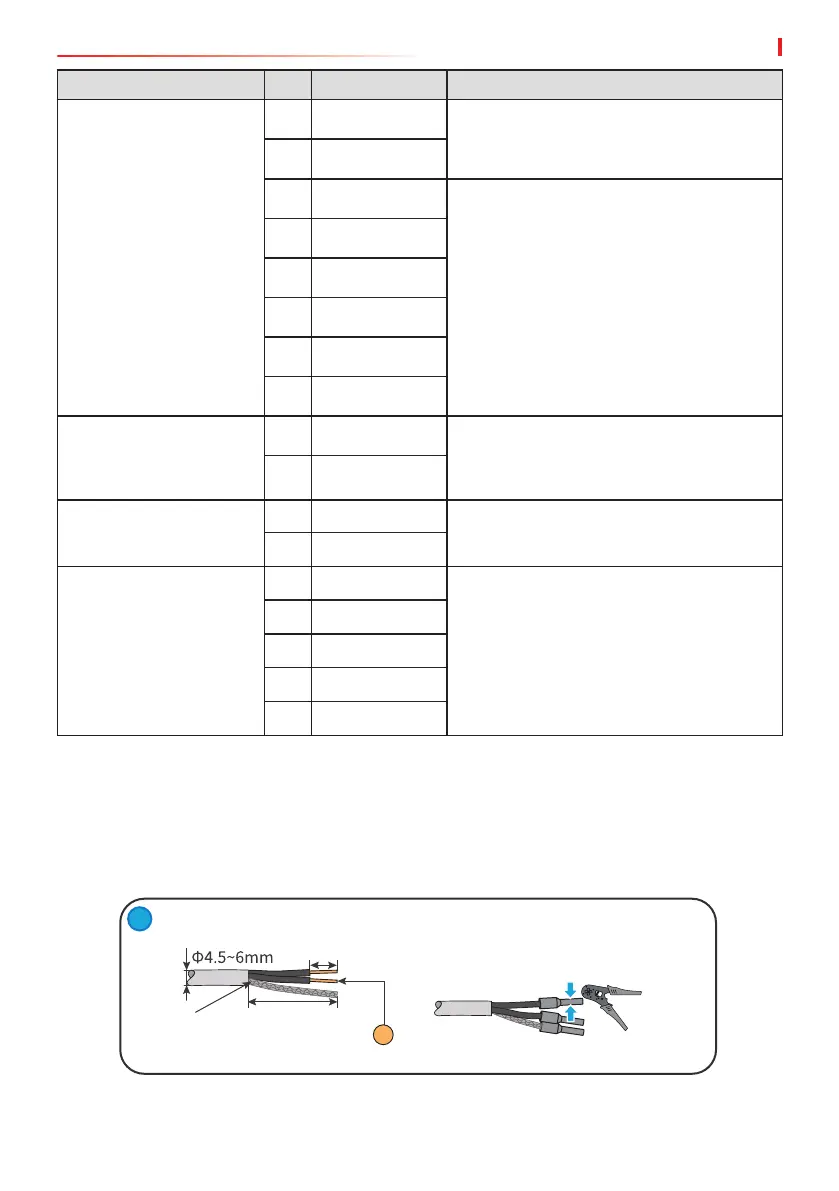

Step 1: Prepare the communication cable.
Step 2: Lead the communication cable through the communication connector in sequence,
insert communication wires to the communication terminal, and assemble the communication
terminal into the communication connecter.
Step 3: Connect the communication connector into the communication port on the inverter.
1
shielded twisted
pair cable
13-15mm
Cu, 0.2~0.5mm
2
50mm
Function No. Denition Description
RS485
1 RS485_B2
To connect with a smart meter.
2 RS485_A2
3 Ground
To connect with multi inverters, the smart
DataLogger (Ezlogger 3000C) or terminal
resistance.
4 RS485_B1
5 RS485_A1
6 Ground
7 RS485_B1
8 RS485_A1
Remote Shutdown/ EPO
(Emergency Powero)
1 DI1+
• To connect with Remote Shutdown
device (for European models only).
• To connect with EPO device (for Indian
models only).
2 DI1-
Dry Contact
3 DO+
Reserved
4 DO-
RCR
3 5V
To connect RCR device. (For European
models only)
4 DI_4 (K1)
5 DI_5 (K2)
6 DI_6 (K3)
7 DI_7 (K4)
