● The length of the suppo tube is 2390mm, which is the same length as the gluing of the
substrate underneath. The length of the structural adhesive between the square tube and the
upper product is 767mm, and the two ends are indented 5mm from the long side of the
Galaxy Plus; (Figure 12)
● There is a grounding hole on the tube, and one side of the grounding hole should not
face the backplane to prevent the burrs on the grounding hole from scratching and piercing
the backplane. The two tubes in the middle (Figure 13) are erected and installed at a higher
installation height, and the other tubes on both sides (Figure 14) are installed at and installed
at a lower height, as shown below (Figure 15) ;

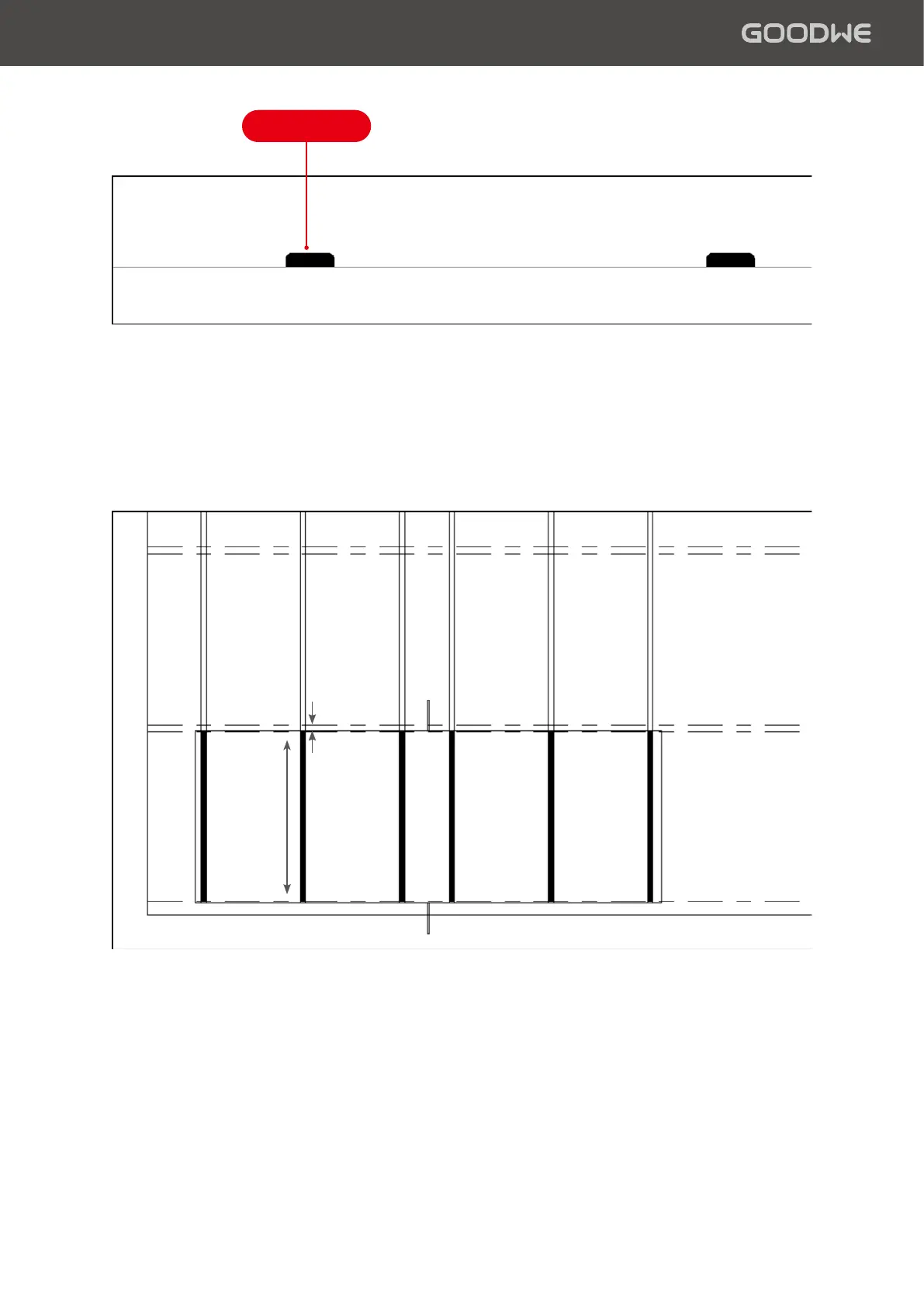

FIGURE 12
FIGURE 11
Adhesive
767mm
5mm
