German Light Products®
11 Rev. 20220607-1
3. Open the storage compartment door and note the positions of the two camlock
fasteners (arrowed in Figure 4) in the top of the stand.
4. Place the Santinel onto the stand as shown in Figure 4, passing the camlock
fasteners into the receptacles in the bottom of the Santinel. Turn both camlock
fasteners a full 90° clockwise to lock.
5. Check that the Santinel and stand are secure before locking the storage
compartment door and using the Santinel.
Mounting on the Santinel Wall Mount Bracket
The Santinel Wall Mount Bracket optional accessory lets you mount the Santinel
securely on a vertical surface. It is possible to remove and reinstall the Santinel on the
bracket in seconds.
To install the Santinel using a Wall Mount Bracket:
1. Hold the bracket up to the mounting surface in the
position where it will support the Santinel and mark
up the position of holes for four fasteners.
2. Drill holes for the fasteners and prepare them with
suitable screw plugs or similar anchoring hardware if
necessary.
3. Fasten the bracket securely to the surface with four
suitable fasteners in high-tensile steel or similar
strength material.
4. See Figure 5. Hang the Santinel on the bracket by
passing the two cutouts (arrowed) in the rear of the
Santinel housing over the hooks in the bracket and
lowering the Santinel until both hooks engage in the
cutouts and hold the Santinel on the bracket.
5. Check that the Santinel is held securely and cannot
fall before using it.
Installing batteries
You can use the Santinel with no need for mains power using 6 x D-size 1.5 V batteries.
We recommend that you either use good-quality alkaline batteries or protect the
environment and save money long-term by using NiMH rechargeable batteries with a
spare set of batteries and suitable charging equipment.
To install batteries:
1. See ‘Product overview’ on page 7. Unlock and open the flap on top of the Santinel.
2. Place six D-size 1.5 volt batteries into the battery bays in the top of the Santinel.
Respect the battery polarity that is marked on the Santinel carefully. Incorrect
battery installation may cause damage.
3. Switch on the Santinel and check that it starts up correctly, then close and lock the
flap.
When operating on batteries, remember to shut down the Santinel by pressing and
holding the standby button on the left-hand side of the housing each time the Santinel
is not being used. This will save energy and maximize battery life.

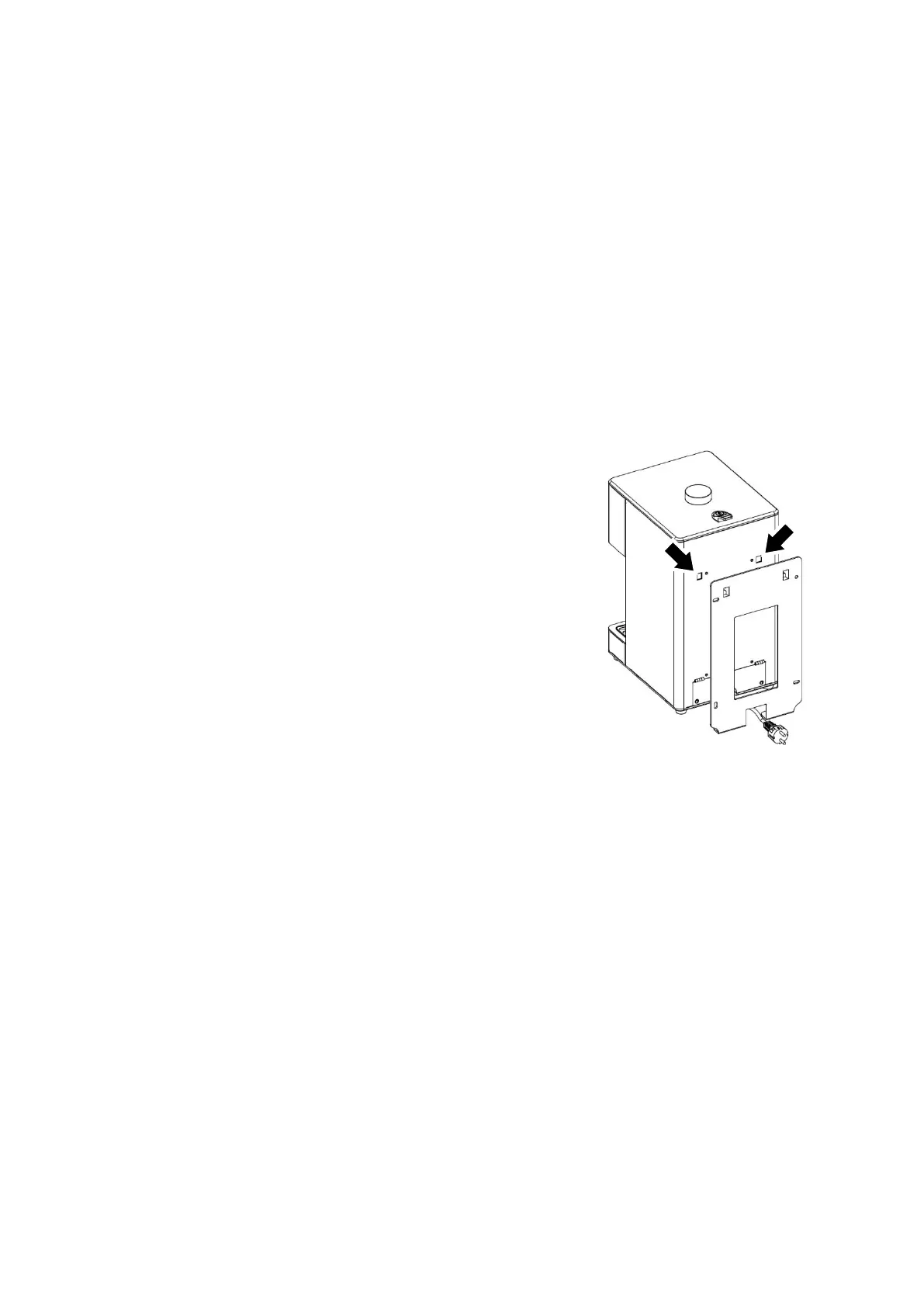

Figure 5. Wall Mount
Bracket
