L – Quarter-turn fastener attachment points for 89 mm GLP Omega Bracket
M – Threaded hole for M10 mounting bolt
N – Safety cable / rigging clamp attachment point (Ø13 mm)
O – Safety cable attachment point
P – Mounting plate screw (6 x Phillips head screws total)
The PSU’s mounting plate (the plate with the attachment points shown in Figure 4) can
be repositioned by unscrewing the six mounting plate screws P, moving the mounting
plate around to the side of the PSU that is opposite the control panel and reinstalling
the six screws in the corresponding holes in that side.
L
L
M

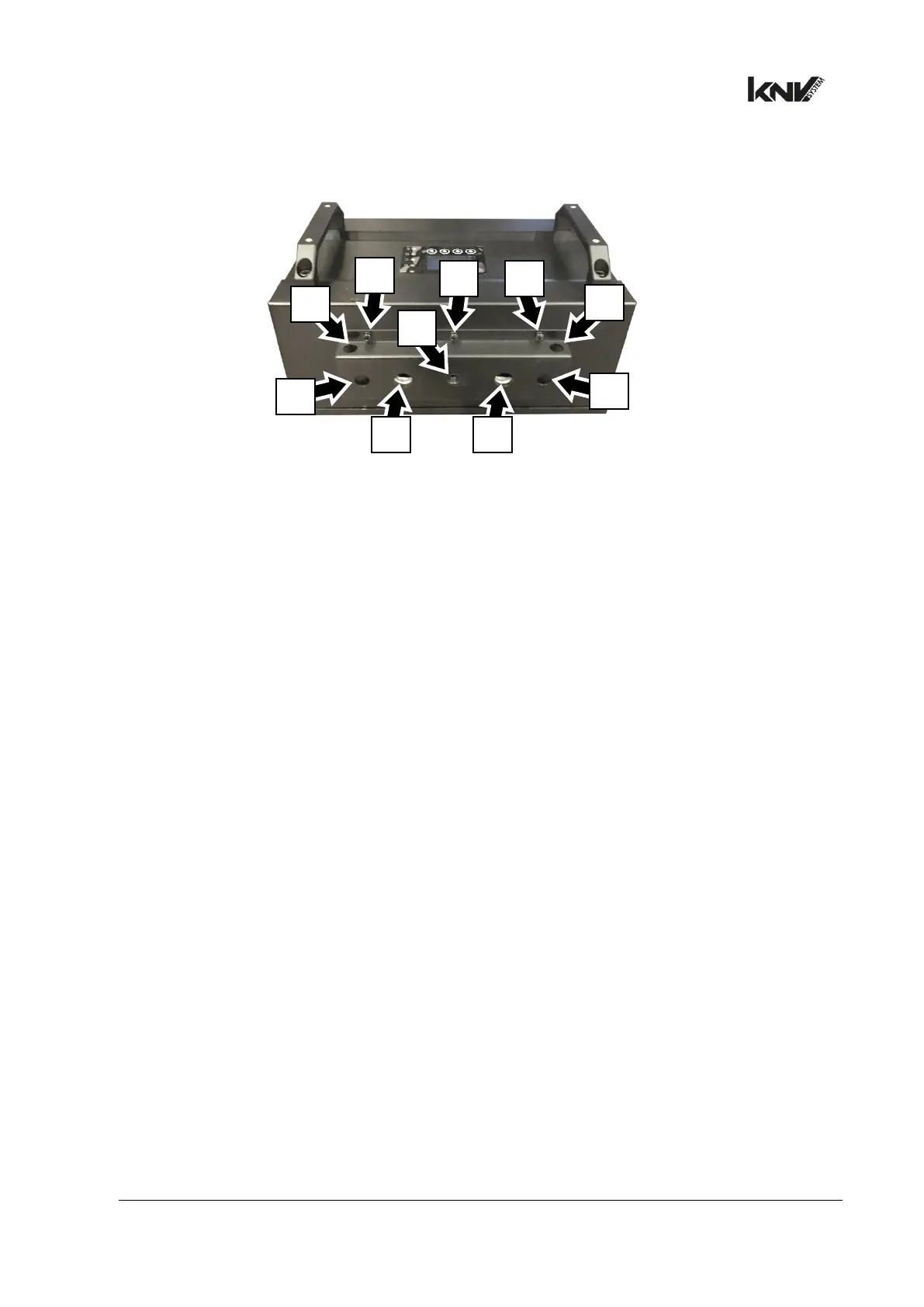

Figure 4. PSU mounting points
O
N
O
N
P
P
P
