German Light Products®
Fusion FS 16Z User Manual Rev. 20240625-01 17
1. See figure 4. Push the bracket into the fastener mounting holes on the rear of the
fixture.
2. Turn both quarter-turn fastener handles on each bracket through a full 90 degrees
clockwise to lock the brackets to the fixture. Ensure the fasteners are fully locked in
position before rigging the fixture.

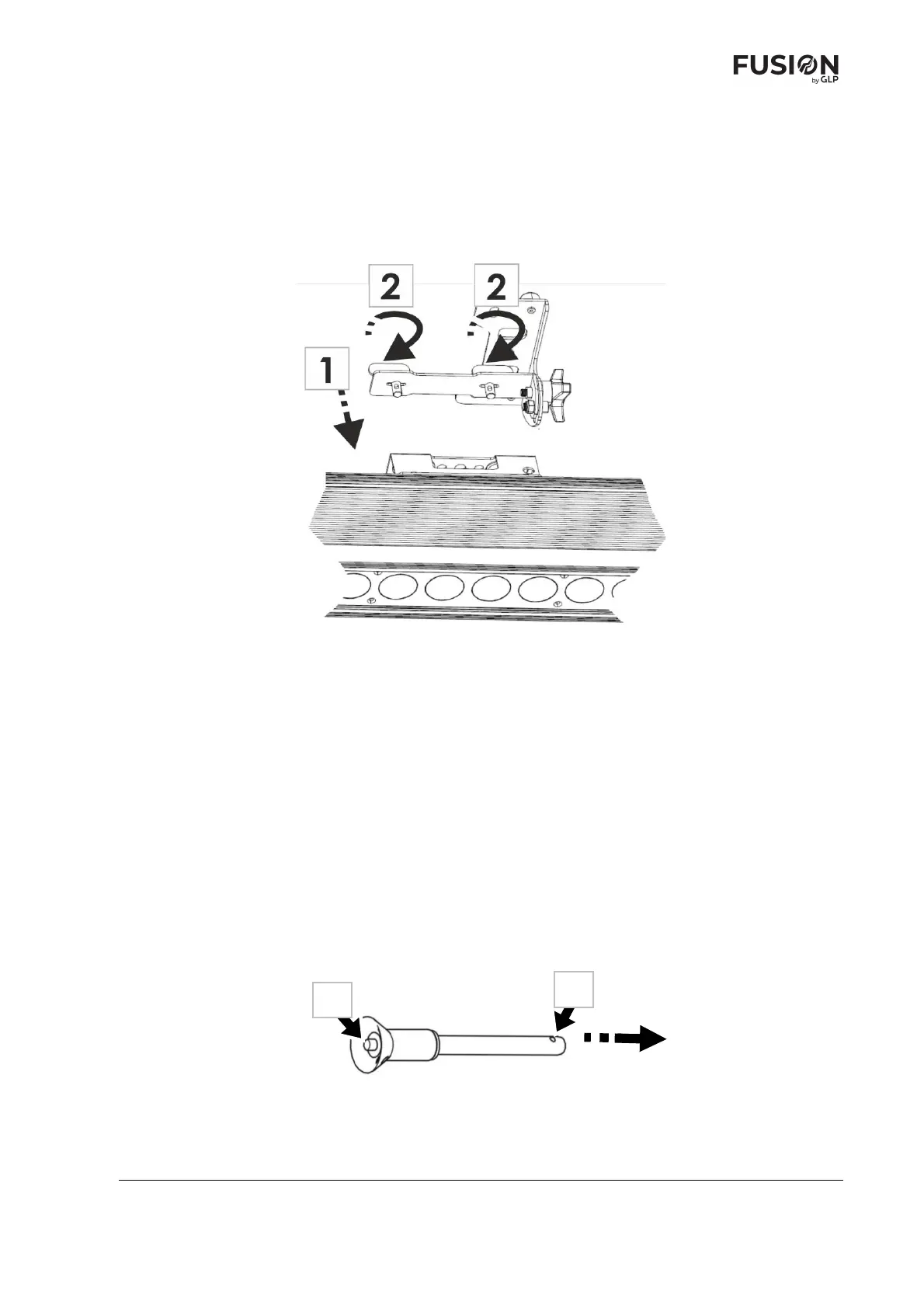

Figure 4. Attaching adjustable bracket to fixture
Using FS 16Z Locking Pins
The FS 16Z system includes Locking Pins that can be pushed into channels in the ends
of fixtures to lock them to each other or to installation hardware.
To install a Locking Pin:
1. See Figure 5. Push button A and keep it pressed in while you insert the pin into the
channels.
2. When the pin is fully inserted, release button A. This will lock the retaining ball B in
the ‘out’ position and prevent the pin from sliding or being pulled out of the
channels.
3 To remove the pin, press button A and pull the pin out using the flange.
A
B
Figure 5. Locking Pin
