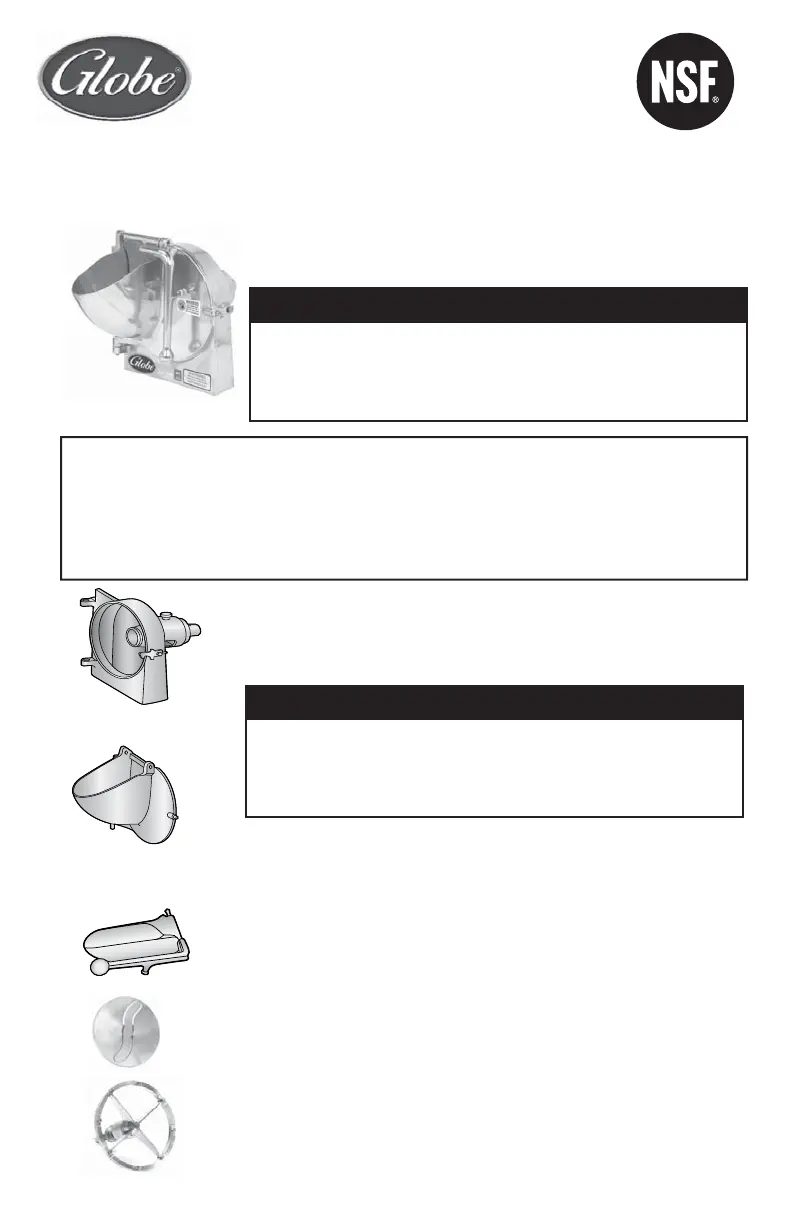

INSTRUCTIONS FOR OPERATION AND CARE
XVSGH GRATER/SHREDDER HOUSING
AND ATTACHMENTS
Our slicer attachments can be used for slicing potatoes (from 1/16'' to 5/8''
thickness); cutting vegetables for salads and coleslaw; or for slicing fruits and
nuts.
Our versatile grater/shredder attachments can be used to grate and shred cheeses, raw vegetables, nuts,
breadcrumbs, etc. depending on the plate or disc selected. Our S/S discs are available with 3/32'', 3/16'', 1/4'',
5/16'', or 1/2'' size holes and a special grating disc for breadcrumbs & hard cheeses is available.
WARNING
Sharp rotating knives are behind the hopper; do not place hands in hopper and
use only the pusher plate to push food product. Always turn off, disconnect
or unplug machine before removing parts, cleaning, or servicing this unit. If
pusher plate is broken or not in position, immediately discontinue use and
call for service.
XVSGH
The XVSGH is made up of the following three basic components:
1. XVSH Housing
2. XVSD Door or Hopper
3. XVSP Pusher Plate
Plate Holder or Adjustable Slicer Plate units
• XASP Adjustable Slicer Shaft with S/S “S” knife
• XPH Plate Holder with Shaft
PLATE HOLDER WITH SHAFT
Shredder discs are available with 3/32'', 3/16'', 1/4'', 5/16'', or 1/2'' hole sizes. These
plates have keyhole slots for attaching to shouldered studs on the plate hubs.
HOPPER
The door is a hopper and lever feed design. It hinges onto the back case and is held
closed with an adjustable latch. To remove door, lift latch and swing door open while
lifting it from the hinge holes.
PUSHER PLATE
The pusher plate has an integrated handle to push the food into the rotating disc or
slicer knife. It has pins at both sides of the top and hinges into door. The pusher plate
has a rubber-tipped stop screw under the handle that can be adjusted to prevent the
pusher plate from coming in contact with the disc or blade.
HOUSING OR BACK CASE
The housing or back case mounts into the attachment socket of a mixer, food cutter or
power drive unit. The housing is held on with the pointed thumbscrew that goes through
the attachment hole into the indentation on neck of the machine.
ADJUSTABLE SLICER PLATE WITH STAINLESS STEEL “S” KNIFE AND SHAFT
Stainless steel “S” knife is ideal for slicing vegetables.
1. XVSH
2. XVSD
3. XVSP
XASP
XPH
WARNING
Serious injury can result if this product is used improperly. Proper training
is important to prevent injury. It is important to read the manual completely
prior to use. Never put your hand or fingers inside the hopper. Sharp knife will
cause serious injury. Only trained and qualified persons 18 years and older
should use these attachments.
