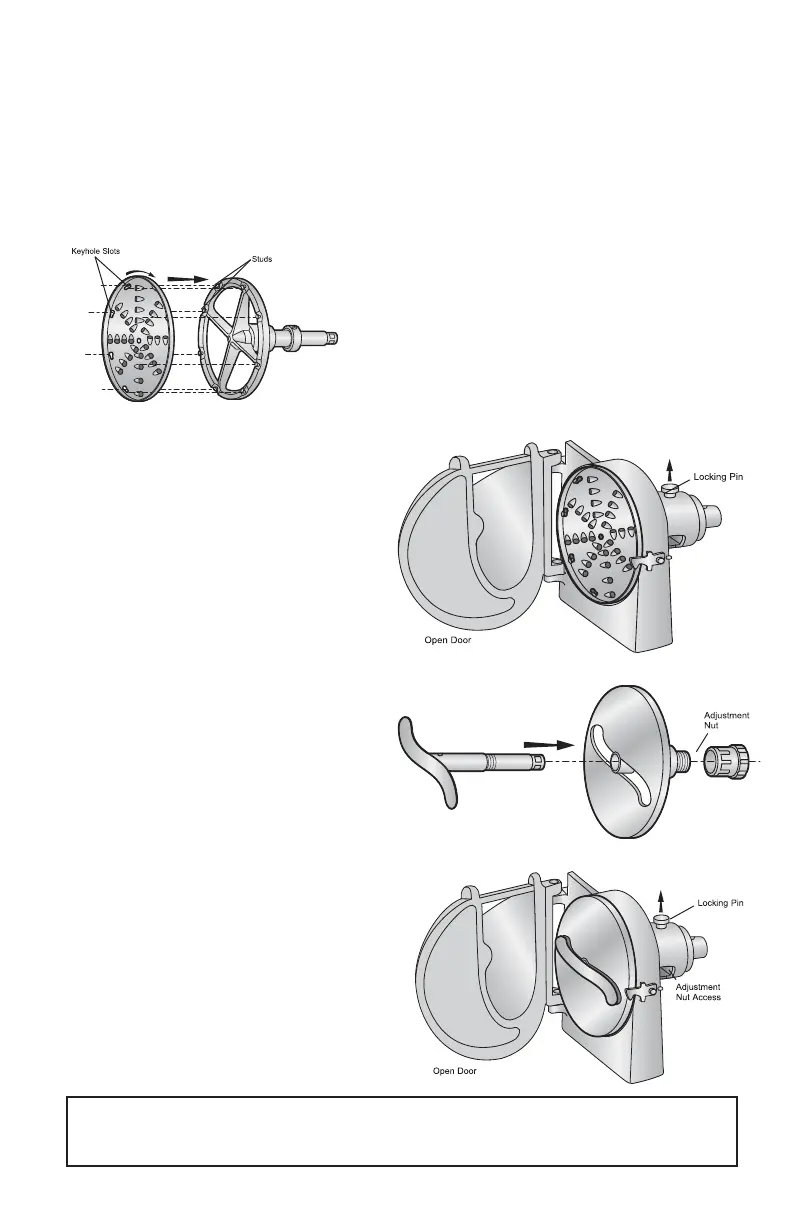

TO INSTALL SHREDDER OR GRATER DISCS
Stop the machine. Point disc with cutting edge away from shaft assembly. Engage keyhole slots on plate
and slide the wide part of keyhole slots over studs on plate holder. When plate is flush with plate holder,
rotate it clockwise to lock it in position. It is possible to loosely assemble the disc to hub (sharp edge out),
then put it on a work surface (the “teeth” on plate will mar a finished table). Press down and turn hub
until plate locks into position. The sharp “teeth” must face out on plate holder. To detach plate from hub,
reverse the installation procedure. A safe method is to use protective gloves and press the palm of one
hand against the disc to rotate it.
Note: The discs are slightly bent to supply holding pressure when in position.
SHREDDER DISC
The coarse plates are normally used for making
chopped slaw, cutting vegetables for soup stock, salad
blends or “hash brown” potatoes. The medium and finer
plates are for fine shredding of carrots, beets, turnips,
etc., and for salads. See our application chart at the end
of these instructions.
GRATER DISC
The grater plates can be used for crumbling hard
cheese or grating hard vegetables.
TO INSTALL PLATE HOLDER ASSEMBLY
Stop the machine. With door open, pull locking
pin up and put plate holder assembly in until the
square end of shaft fits snugly into power unit.
Release locking pin to hold plate holder assembly
in correct position. Close door.
ADJUSTABLE SLICER PLATE ASSEMBLY &
INSTALLATION
Turn off and unplug the machine. Adjust the
slicing thickness from approximately 1/16'' to 5/8''
by turning adjustment nut. Lift the locking pin on
top of housing. Open door and slide adjustable
slicer plate assembly back into operating position.
The square end of shaft can be manually rotated
to seat into machine socket correctly. Tighten
adjustable slicer plate assembly to machine with
locking pin on top of housing. Attach pusher plate
and close door before turning on machine.
TO ADJUST THICKNESS OF SLICES
Stop the machine. Remove adjustable slicer plate
assembly from housing and turn adjustment nut
while carefully holding adjustable slicer plate
assembly.
Note: Thickness of slices can be adjusted with
slicer plate assembly in position. Turn adjustment
nut, accessed through the adjustment nut access
in rear housing to adjust thickness of slices. Globe
recommends that the adjustable slicer plate is
removed to adjust slice thickness.
Caution: The adjustment nut turns with shaft. Adjustments must not be attempted unless the unit is
turned off and unplugged.
