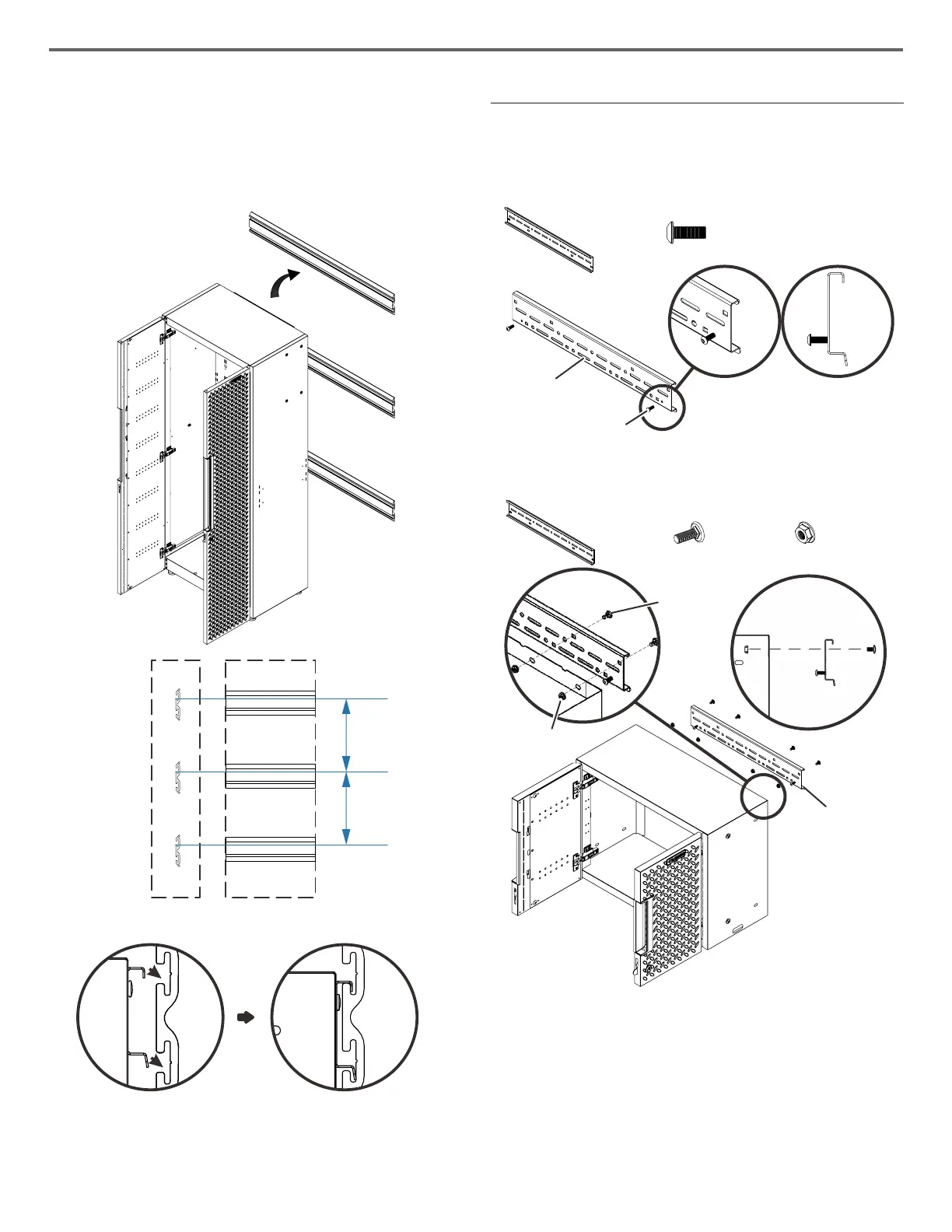

ASSEMBLY INSTRUCTIONS
2. Hang the tall cabinet onto the GearTrack
®
channels.
■ Make sure all three brackets (P1) are fully engaged in the
slots as shown.
NOTE: For installation of the Gladiator
®
GearTrack
®
channels, please refer to the manual instructions included
with the Gladiator
®
GearTrack
®
channels.
30"
30"
The GearTrack
®
channels should be installed
with the spacing as shown.
Install the 24'' Flex Wall Cabinet
NOTE: Flex Brackets are sold individually and Gladiator
®
GearTrack
®
channels sold separately.
1. Attach two M6 x 16 hex socket head screws (F3) to the
bracket (P1) as shown.
Pt: Bracket (1) F3: M6 x 16 hex socket head
screws (2)
2. Attach the bracket (P1) to the wall cabinet's back top.
Pt: Bracket (1) F1: M6 round head square
neck bolts (4)
F2: M6 hex ange nuts (4)
■ Attach the bracket (P1) to the wall cabinet's back top with
four M6 round head square neck bolts (F1) and four M6 ange
nuts (F2).
P1
X
1
F1
X 2
P6
F1
P1
X 1
F5
X 4
F3
X 4
P1
F3
F5
One bracket
required as
shown
