7

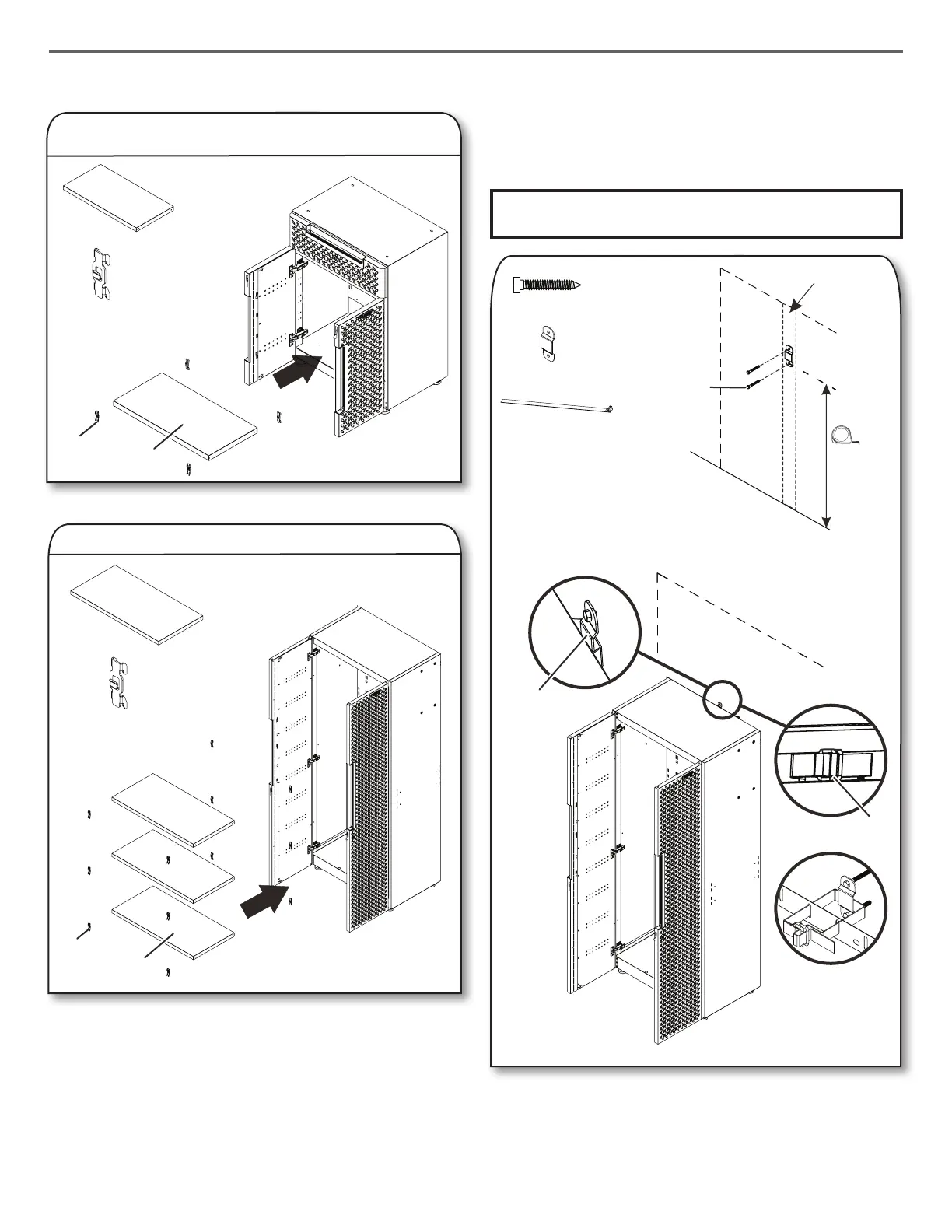

ASSEMBLY INSTRUCTIONS
3c. Install the shelf in the 1-drawer 2-door
base cabinet.
P3
X 1
X 4
P13
P3
P13
3d. Install the shelves in the tall cabinet.
X 12
X 3
P11
P3
P11
P3
4. Connect the Tall Cabinet to the Wall
NOTE: This instruction is for attaching the cabinets directly to
the wall. For attaching the cabinets to Gladiator
®
GearTrack
®
Channels, please refer to page 12.
F2
P4
P1
X 2
X 1
X 1
02
P4
P1
73-13/16 in.
IMPORTANT: The M6 x 40 hex tapping bolts should be drilled
into a wall stud.
■ Bolt the wall bracket with two M6 x 40 hex tapping bolts (F2)
to a wall stud. Fasten the tall cabinet by using the wall strap
to tie the tall cabinet and wall bracket together.
Stud
Wall
oor
View from cabinet top
View from inside
of cabinet
73- 13/16"
(187.48 cm)
