12
To avoid damages to the power cord, do not step on it.
Do not immerse the motor unit in water or other liquids;
clean it with a damp cloth.
Do not turn it upside down especially when there are
some liquids inside the container.
Do not use the unit without filters: this can seriously
damage the motor avoiding the warranty.
DESCRIPTION AP45
1 – Handle 2 – Motor unit/Cover 3 – Power button
4 – Fabric filter 5 – Suction hole 6 – Stainless-steel tank
7 – Accessories housing 8 – Wheels 9 – Locking tabs
10 – Sponge filter 11 – Floor brush 12 – Flexible hose
13 – 3 plastic tubes 14 – Nozzle with mini-brush
The spare part kit corresponding to model AP46 includes: 1 fabric filter (4) and 1 sponge filter (10).
ASSEMBLING
Start assembling the unit only when the appliance is disconnected to the electrical outlet.
- Before use, it is necessary to assemble the appliance, do not
connect it to the power outlet.

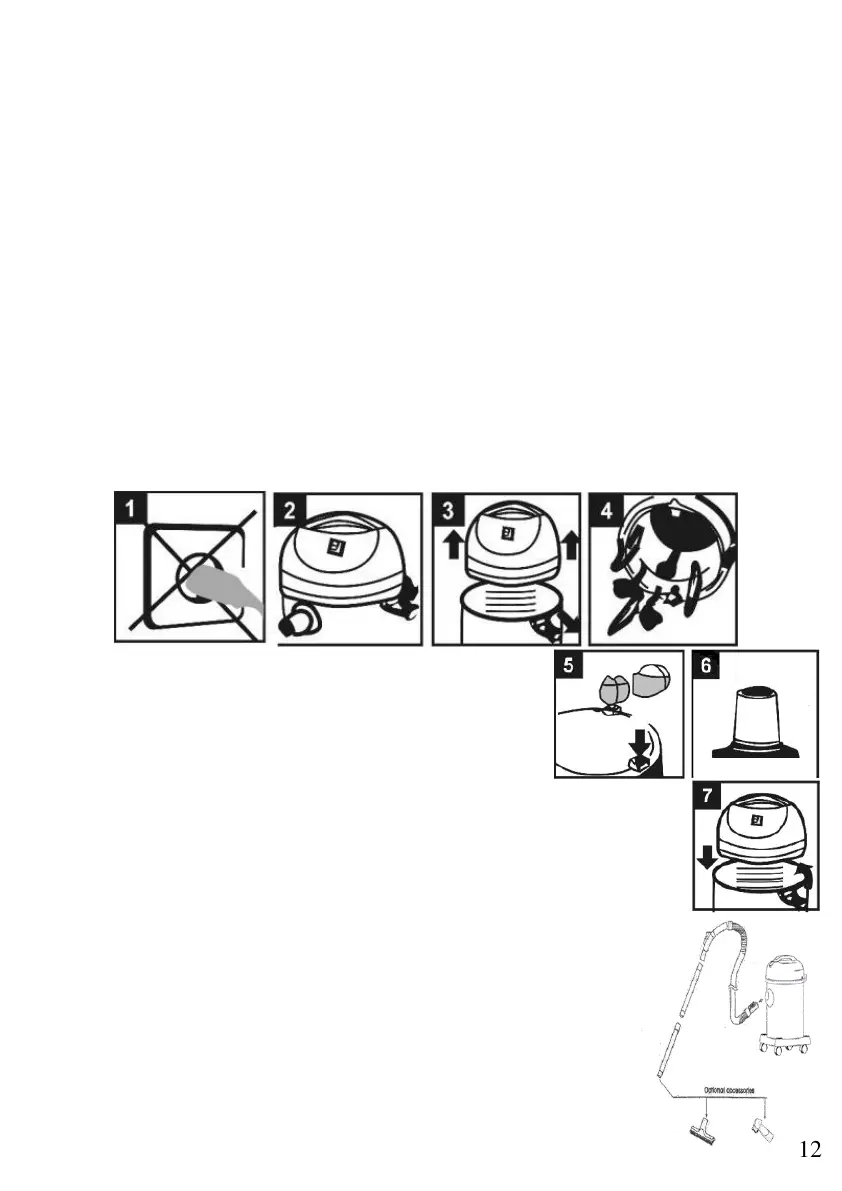

- Remove the motor unit (2) lowering the locking hinges (9) of the
cover (Figures 2 and 3).
- Take out all the components and accessories which are stored
inside the tank (Figure 4).
- Turn it upside down and mount the wheels supplied by entering
their pins in the base holes (Figure 5). Check that the sponge filter is properly
installed on the cone at the bottom of the cover (2) of the unit (Figure 6).
- Mount one of the 2 filters, based on the operation you have to do:
o In case of wet vacuuming, mount the sponge filter (10) to the cone at the
bottom of the cover (2) of the unit (Figure 6).
o In case of dry vacuuming, insert the fabric filter (4) in the stainless
steel tank (6), mounting to the internal part of the suction hole (5).
- Place the cover (2) on the container (6) of the vacuum cleaner (Figure 7),
aligning the hinges (9) with the notches on the lid and fasten the cover by
closing hinges.
Assembling the accessories by following the steps below:
- Fit the flexible hose (12) into the suction hole (5) by pushing the end of the
tube into the fill pipe and then turn it clockwise
- Insert the first plastic tube (13) into the free end of the flexible hose (12).
- Perform the same operation to attach the second rigid tube (13) to the first one.
- Insert the chosen tool, brush (11) or nozzle (14), at the end of the rigid tube.
