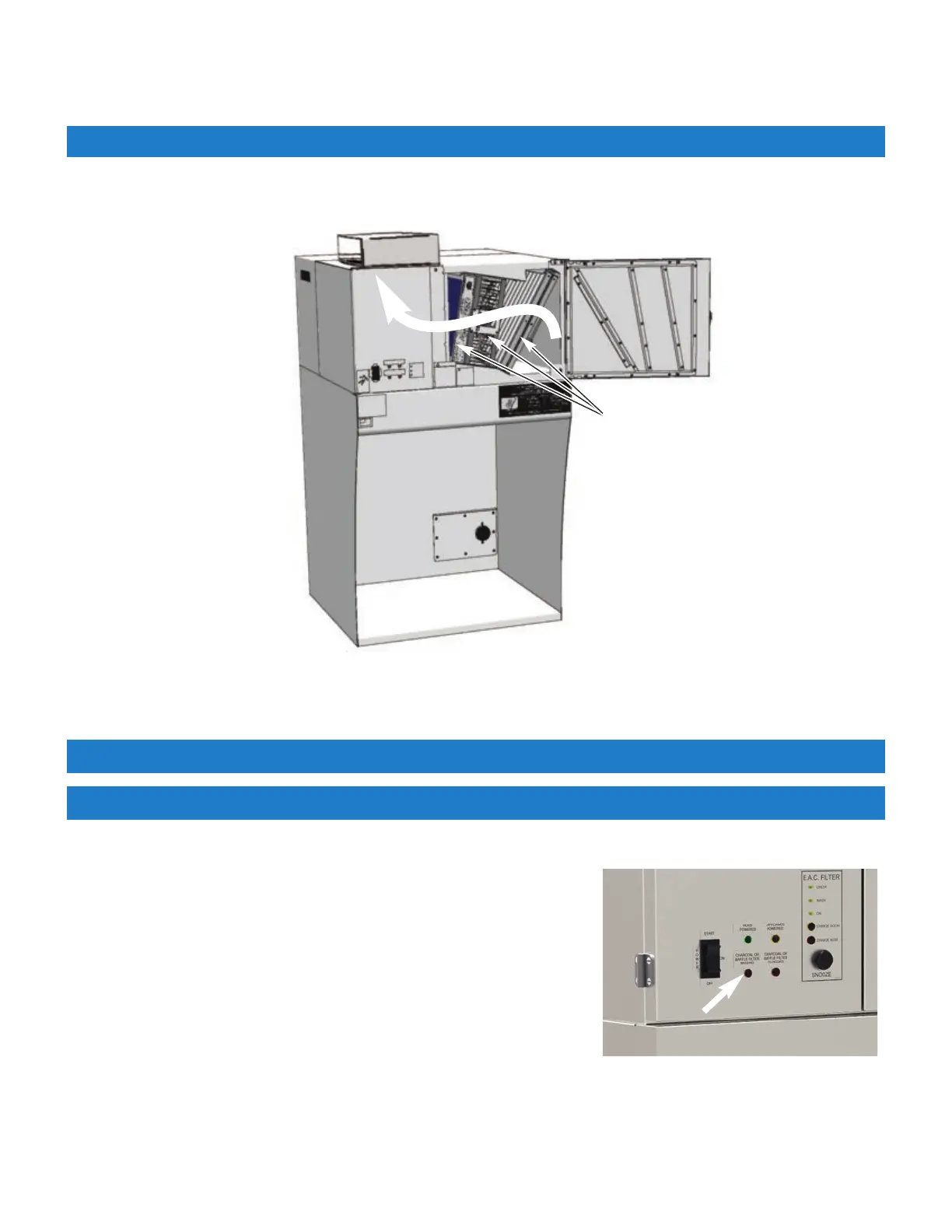

Model: GVHC & F Operation & Filter Maintenance
To reinstall filters, align with the
guide channels and slide straight into
compartment until filter hits a stop.
IMPORTANT! Handles of the baffle
filter must be positioned toward the
right‐hand side of hood.
Always position filters so that any
airflow direction arrows on the
filters align with the hood airflow
direction.
Close and latch access door
A
I
R
F
L
O
W
4.02.3 Filter Installation ‐ Baffle, E.A.C. Cell & Charcoal
If the charcoal and/or baffle filter is not in place, or not positioned properly, the red [CHARCOAL OR BAFFLE FILTER
MISSING] light will turn ON. Power supply to cooking appliances under
hood is turned OFF until the condition is corrected ... amber [APPLIANCE
POWERED] light turns OFF. No audible alarm will sound for this condition.
• Hood fan continues to run ... turn OFF hood power.
• Confirm that both filters are in place. See Sections 4.02.3, Filter
Installation.
• Inspect filter positioning. Remove and reinstall to ensure they are
seated properly in the guides and are pushed fully into the filter
compartment. Be sure access door closes and latches securely. Filters
must actuate a proofing switch located on the rear wall of the filter
compartment.
4.02.4 Hood Filter Alarms
4.02.4.1 Charcoal or Baffle Filter Missing
