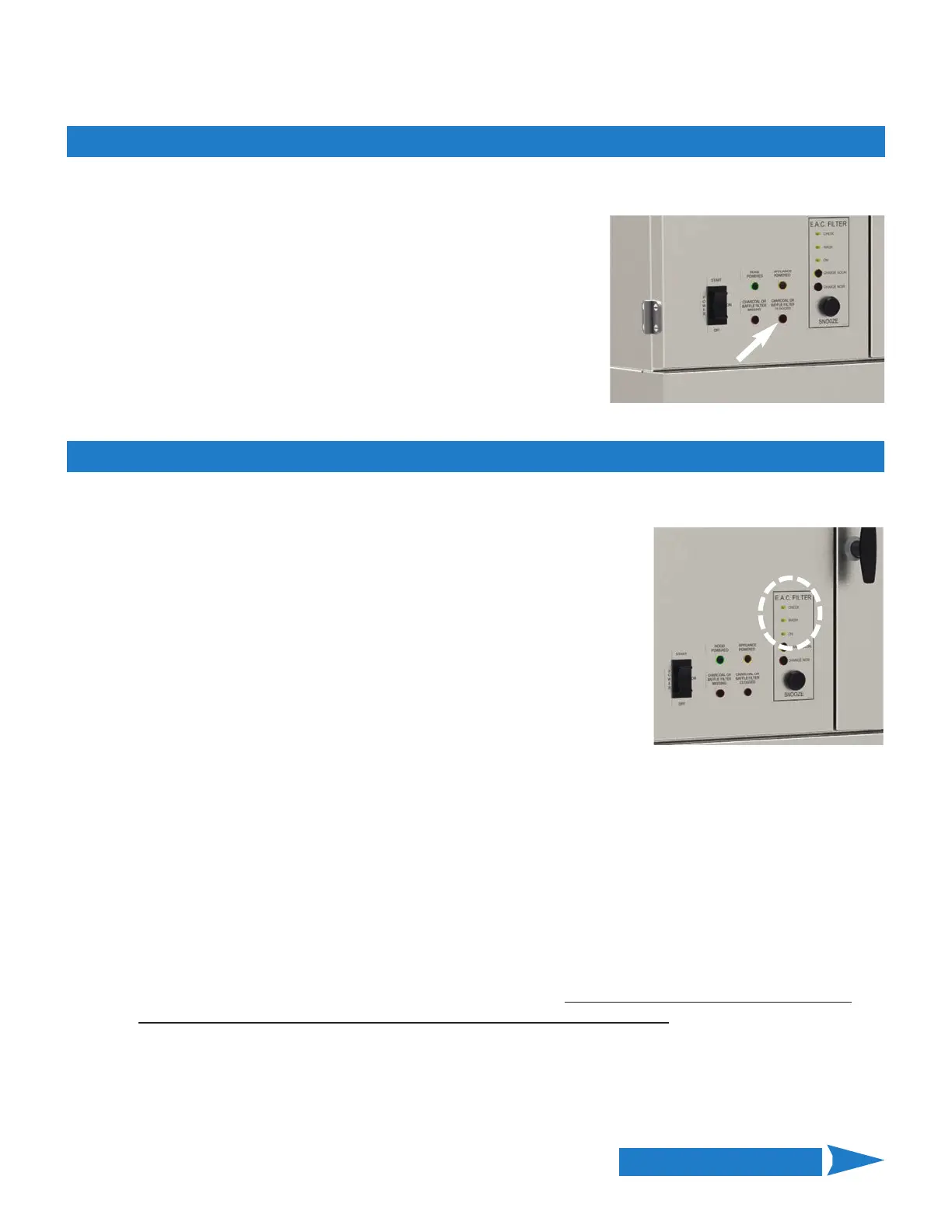

Model: GVHC & FOperation & Filter Maintenance
Alarm occurs when the baffle and/or charcoal filter become clogged, or other restrictions are present that reduce
airflow to a level below the minimum required for effective capture of cooking vapors. A continuous tone alarm
will sound and the red [CHARCOAL OR BAFFLE FILTER CLOGGED] light will
turn ON ... the amber [APPLIANCE POWERED] light turns OFF and power
supply to appliances under hood turns OFF until the condition is corrected.
• Hood fan continues running ... turn OFF hood power.
• Clean the baffle filter; see Section 4.03.1, Baffle Filter Cleaning.
• Replace charcoal filter with fresh new filter; 4.03.3, Charcoal Filter
Maintenance.
• Inspect the hood plenum to ensure there are no obstructions.
• Check the hood exhaust outlet ... be sure that nothing is significantly
obstructing airflow from the hood exhaust.
4.02.4.2 Charcoal or Baffle Filter Clogged
Three small LED indicator lights on the control panel show the operational status of the E.A.C. air cleaning system.
[ON] Indicates that the E.A.C. cell is installed, powered and operating. Will be
the only light ON when system is operating properly.
[WASH] light turns ON to indicate:
• Collector cell is not installed or is misaligned.
• Collection fins contain excessive amount of grease residue.
• Poor contact between filter cell & hood contact plate.
• Too many ionizer wires missing.
When [WASH] light is ON, an alarm condition exists and air cleaning is
not occurring. After approximately two (2) minutes, a beeping alarm
tone will begin sounding and shortly thereafter, supply power to cooking
appliances under hood is shutdown ... [APPLIANCE POWERED] light turns OFF.
[WASH] light is NOT intented to be the notification for routine cell cleaning ... DO NOT use as such.
Generally, the collection cell must be cleaned DAILY to ensure optimum performance. See Section
4.03.2, EAC Filter Cell Cleaning.
[CHECK] light turns ON to indicate:
• Ionizer wires are broken and shorted out against the cell frame.
• Cell is damaged and has shorted out to ground.
• Collection fins shorted out because excessive moisture has formed on them.
When [CHECK] light is ON, the hood will continue to run and cooking appliances remain powered,
however the system is no longer operating to clean the air . DO NOT CONTINUE OPERATIONS WHEN
THIS CONDITION EXIST ... STOP AND INSPECT! Call for service if necessary.
The following actions may clear the alarm condition:
1. Turn hood power switch OFF.
2. Remove the E.A.C. cell and clean as described in Section 4.03.2.
4.02.4.3 E.A.C. Filter Status & Alarm
Continued on Next Page
