Installation
GGF Series Gas Fryer

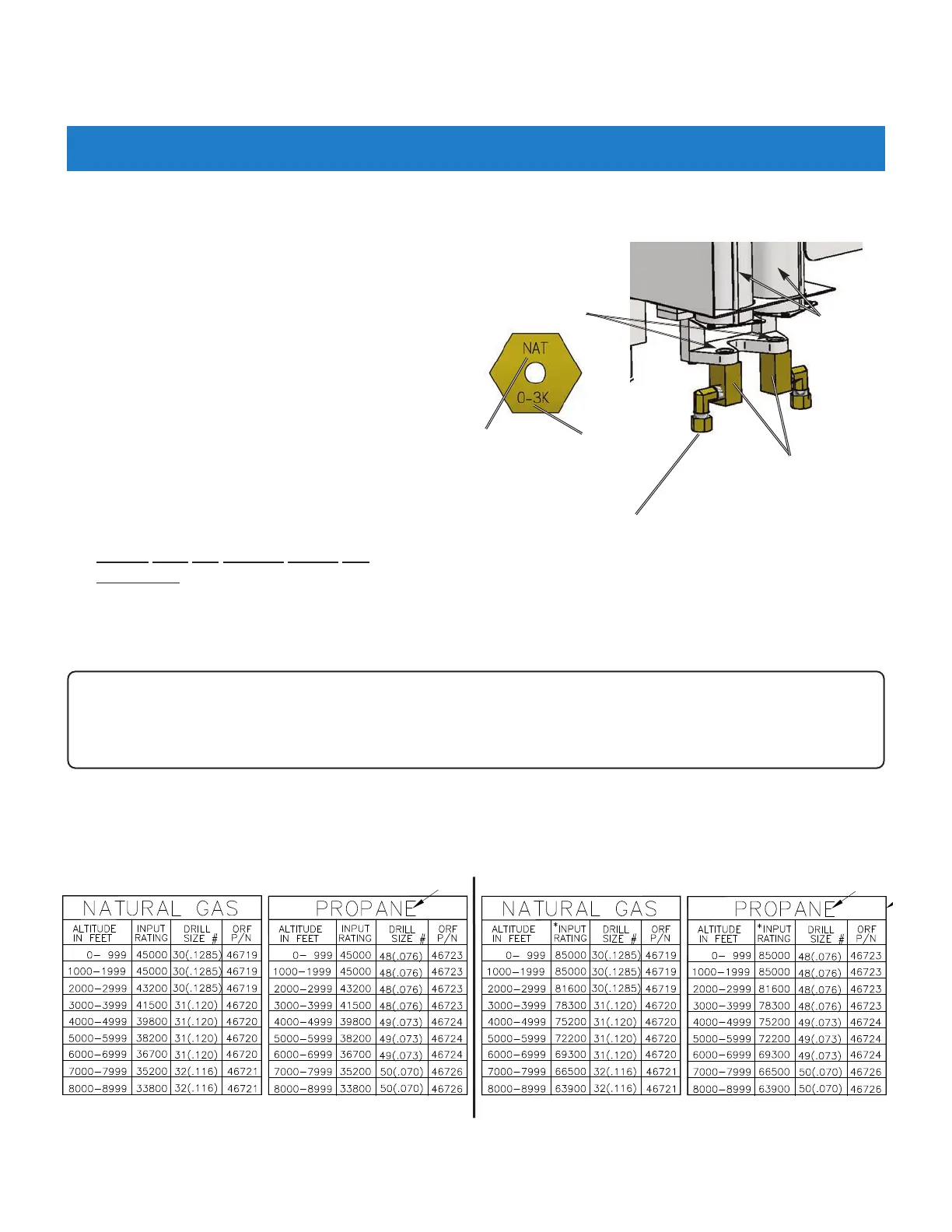

2.8. Gas Orifices: Information & Replacement Procedure − continued
1. Disconnect power plug from receptacle.
2. Ensure that all gas valves are OFF.
3. Remove rear fan guard & back cabinet panel.
4. It should be possible to examine the ID stamp on
orifice head without removing them.
5. If orifice is incorrect for actual installation
altitude, disconnect gas line and remove the gas
manifold.
6. Remove & replace orifice in manifold with the
proper size. See charts below.
7. Reinstall manifold & installed orifice, reconnect
gas line, and replace panel & guard. Proceed to
Section
2.10; Gas Pressure Setting and
Adjustment
.
IMPORTANT! Orifice size charts ... see label on rear of unit
GGF720 Fryer
Gas Line
connects at
this fitting
Gas Manifold
Burners
*Covered
Altitude
Range
Gas Type
Gas Orifice
IMPORTANT! [Model GGF720 with 2 Burners]
When removing & reattaching gas lines, for any service or maintenance event, be sure that they are reattached
to the same burner manifold from which they were removed. Inadvertently switching these lines will result in
ignition failures.
NOTE: The model GGF720 is equipped with (2) burners, orifices, gas manifolds & gas lines.
GGF400 Fryer
