4.02.2 Baffle Filter Installation
Hood Operation
Free Standing Ventless Hood
FSH-2 & FSH-2A-99
The baffle filter is fabricated from thin gauge sheet metal & can have sharp exposed edges, which may
cause cuts. Use due caution when handling and cleaning. Heavy duty rubber gloves are advised.
B
A
F
F
L
E
F
I
L
T
E
R
B
A
F
F
L
E
F
I
L
T
E
R
B
A
F
F
L
E
F
I
L
T
E
R
B
A
F
F
LE
F
IL
T
E
R
Switch arm
must be
actuated
by the
filter when
installed,
as shown
1
2
3
4

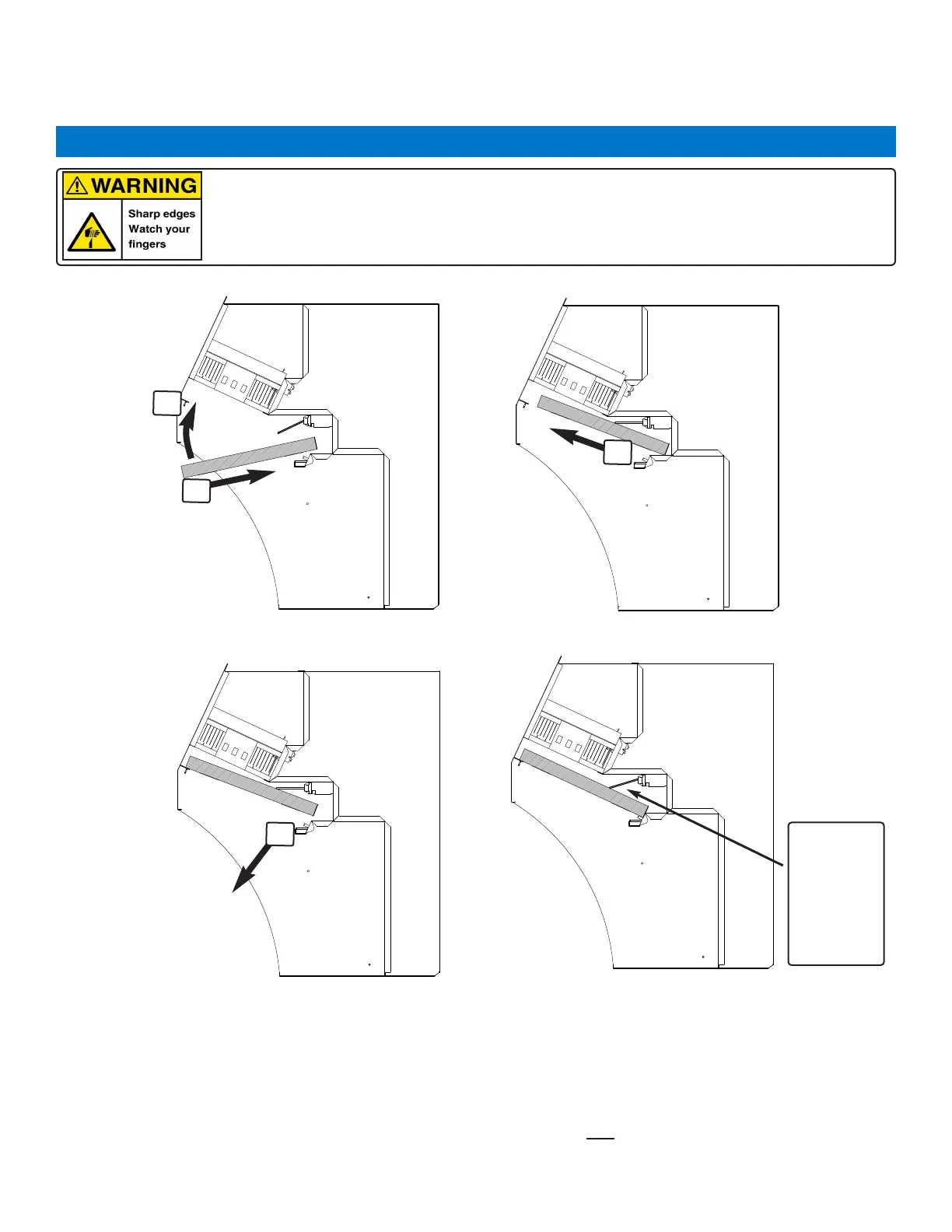

① Insert back edge of filter into hood (to the back wall).
② Lift front edge up behind front header.
③ Slide filter forward until front edge rests on support inside front header.
④ Allow back edge to drop down and rest on support studs.
IMPORTANT! As shown above, the filter body must engage & actuate the switch actuator lever located at the rear of hood, on
the right side. Filter must be installed so that the baffles are positioned vertically, NOT horizontal.
