- 23 -

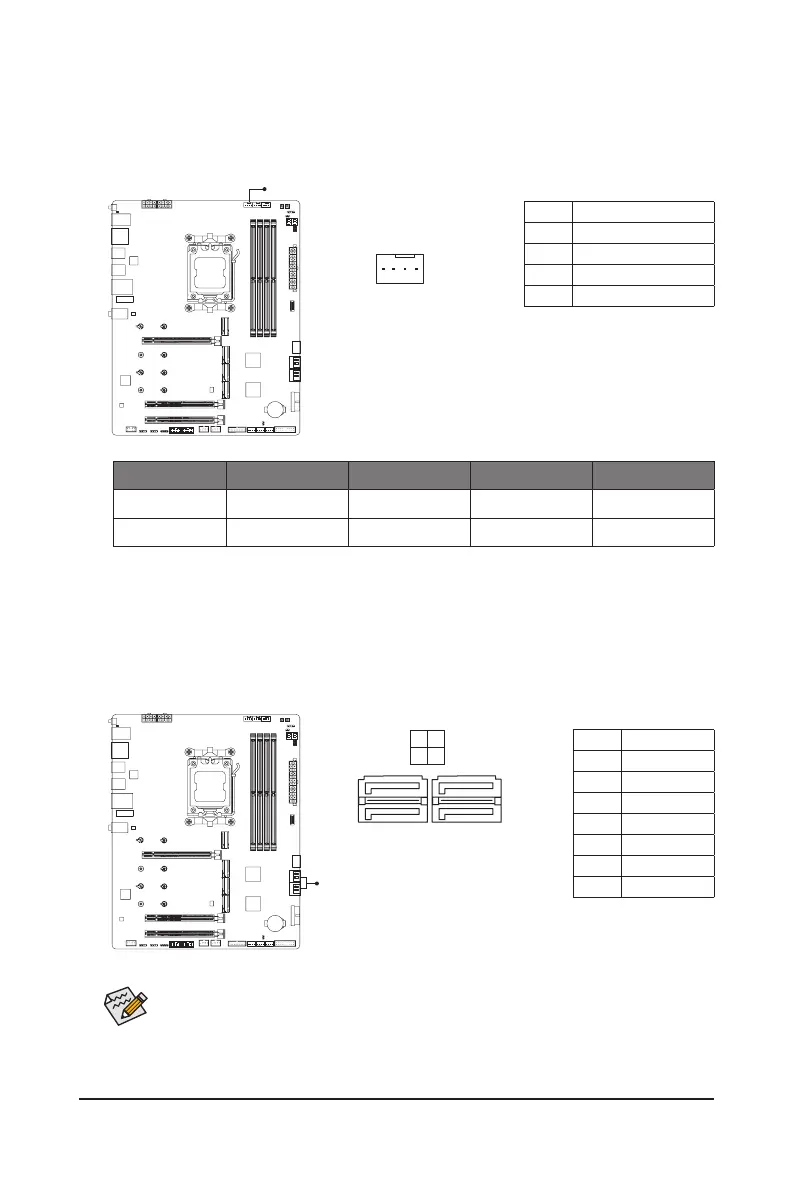

6) CPU_OPT (CPU Fan/Water Cooling Pump Header)

The fan/pump header is 4-pin and possesses a foolproof insertion design. Most fan headers possess a

foolproof insertion design. When connecting a fan cable, be sure to connect it in the correct orientation

(the black connector wire is the ground wire). The speed control function requires the use of a fan with fan

speed control design.

DEBUG

PORT

G.QBOFM

Pin No. Denition

1 GND

2 Voltage Speed Control

3 Sense

4 PWM Speed Control

Connector CPU_FAN SYS_FAN1~3 FAN4_PUMP CPU_OPT

Maximum Current 2A 2A 2A 2A

Maximum Power 24W 24W 24W 24W

CPU_OPT

7) SATA3 0/1/2/3 (SATA 6Gb/s Connectors)

The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA

1.5Gb/s standard. Each SATA connector supports a single SATA device. The SATA connectors support

RAID 0, RAID 1, and RAID 10. Please navigate to the "Conguring a RAID Set" page of GIGABYTE's

website for instructions on conguring a RAID array.

Pin No. Denition

1 GND

2 TXP

3 TXN

4 GND

5 RXN

6 RXP

7 GND

SATA3

2 0

3 1

To enable hot-plugging for the SATA ports, please navigate to the "BIOS Setup" page of GIGABYTE's

website and search for "SATA Conguration" for more information.

DEBUG

PORT

G.QBOFM

DEBUG

PORT

G.QBOFM

SATA3 0/1/2/3
