2-7 Onboard Buttons and LEDs

Quick Buttons

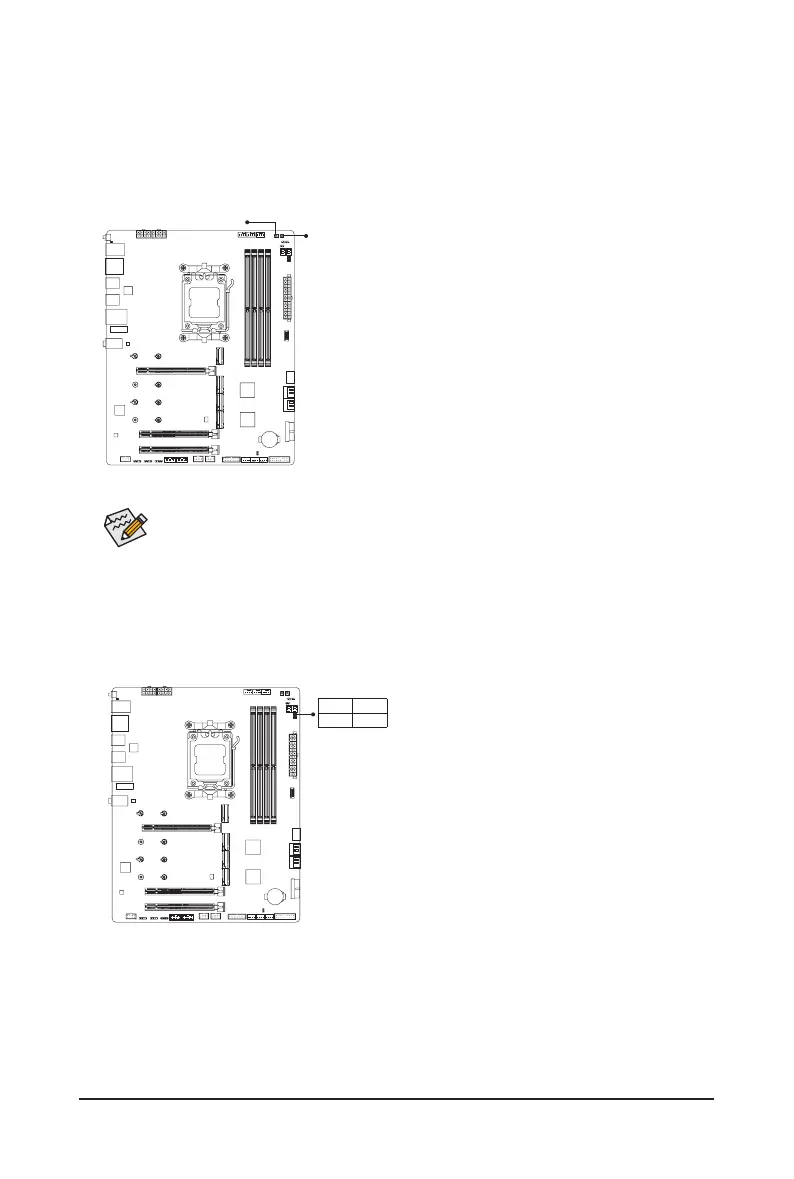

This motherboard has 2 quick buttons: power button and reset button. The power button and reset button allow

users to quickly turn on/off or reset the computer in an open-case environment when they want to change

hardware components or conduct hardware testing.

POWER: Power Button

RESET: Reset Button

RESET

POWER

The reset button provides you with several functions to use. To remap the button to perform different

tasks, please navigate to the "BIOS Setup" page of GIGABYTE's website and search for "RST

(MULTIKEY)" for more information.

Status LEDs

The status LEDs show whether the CPU, memory, graphics card, and operating system are working properly

after system power-on. If the CPU/DRAM/VGA LED is on, that means the corresponding device is not working

normally; if the BOOT LED is on, that means you haven't entered the operating system yet.

CPU: CPU status LED

DRAM: Memory status LED

VGA: Graphics card status LED

BOOT: Operating system status LED

CPU DRAM

VGA BOOT
