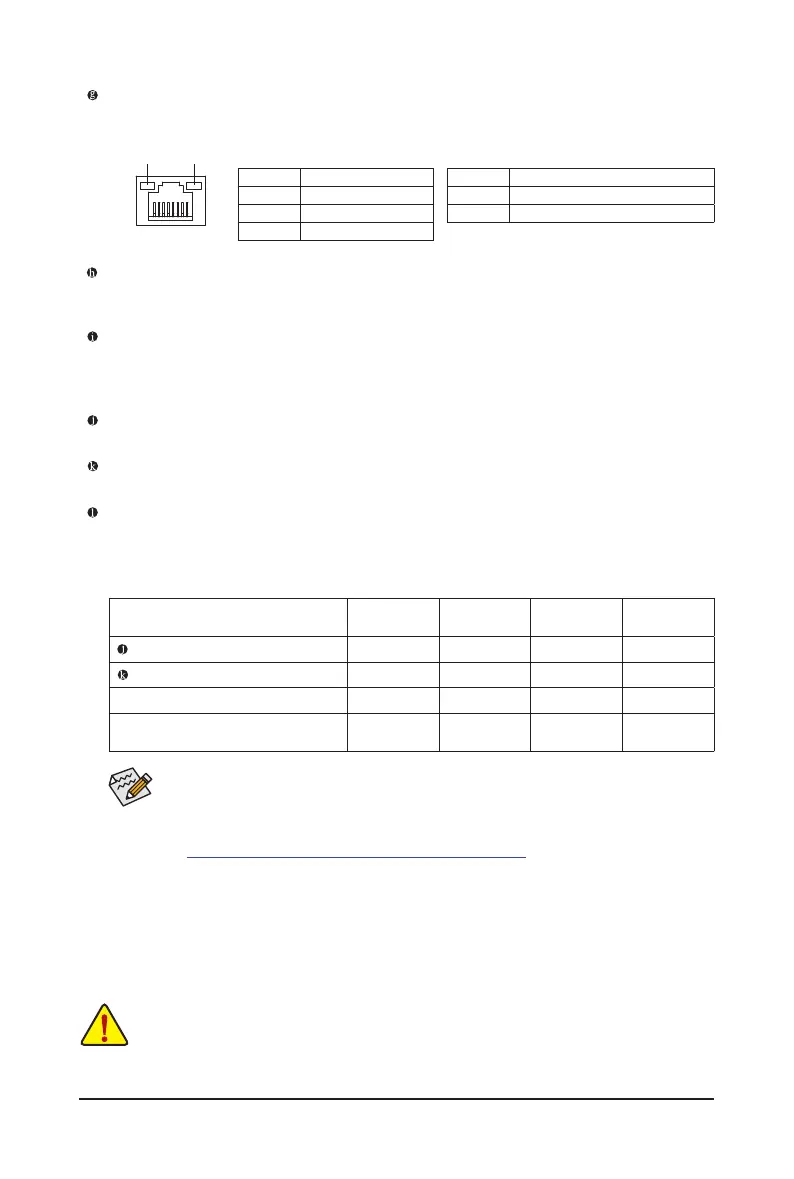

- 18 -

• When removing the cable connected to a back panel connector, rst remove the cable from your

device and then remove it from the motherboard.

• When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent

an electrical short inside the cable connector.

& Please visit GIGABYTE's website for details on conguring the audio software.

https://www.gigabyte.com/WebPage/698/realtek1220-audio.html

You can change the functionality of an audio jack using the audio software. To congure 7.1-channel

audio, access the audio software for audio settings.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 2.5 Gbps data rate. The following

describes the states of the LAN port LEDs.

Audio Jack Congurations:

Jack

Headphone/

2-channel

4-channel 5.1-channel 7.1-channel

Line Out/Front Speaker Out

a a a a

Mic In/Rear Speaker Out

a a a

Front Panel Line Out/Side Speaker Out

Front Panel Mic In/Center/Subwoofer

Speaker Out

a a

Activity LED

Speed LED

LAN Port

Speed LED:

State Description

Orange 2.5 Gbps data rate

Green 1 Gbps data rate

Off 100 Mbps data rate

Activity LED:

State Description

Blinking Data transmission or receiving is occurring

Off No data transmission or receiving is occurring

USB 3.2 Gen 2 Type-A Port (Red)

The USB 3.2 Gen 2 port supports the USB 3.2 Gen 2 specication and is compatible to the USB 3.2 Gen 1

and USB 2.0 specication. Use this port for USB devices.

USB 3.2 Gen 2 Type-A Port (Red) (Q-Flash Plus Port)

The USB 3.2 Gen 2 port supports the USB 3.2 Gen 2 specication and is compatible to the USB 3.2 Gen 1

and USB 2.0 specication. Use this port for USB devices. Before using Q-Flash Plus

(Note 1)

, make sure to insert

the USB ash drive into this port rst.

Line Out/Front Speaker Out

The line out jack.

Mic In/Rear Speaker Out

The Mic in jack.

Optical S/PDIF Out Connector

This connector provides digital audio out to an external audio system that supports digital optical audio.

Before using this feature, ensure that your audio system provides an optical digital audio in connector.
