- 17 -

Q-Flash Plus Button

(Note 1)

This button allows you to update the BIOS when the power connector is connected but the system is not

powered on.

Antenna Connectors (2T2R)

Use this connector to connect an antenna.

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices.

USB 3.2 Gen 1 Port

The USB 3.2 Gen 1 port supports the USB 3.2 Gen 1 specication and is compatible to the USB 2.0

specication. Use this port for USB devices.

HDMI Port

(Note 2)

The HDMI port is HDCP 2.3 compliant and supports Dolby TrueHD and DTS

HD Master Audio formats. It also supports up to 192KHz/24bit 7.1-channel

LPCM audio output. You can use this port to connect your HDMI-supported monitor. The maximum

supported resolution is 4096x2160@60 Hz, but the actual resolutions supported are dependent on the

monitor being used.

USB4

USB Type-C

Port (DisplayPort

(Note 2)

)

This port supports standard USB4

USB Type-C

and DisplayPort display output. You can connect a USB4

USB Type-C

monitor to this port or use an adapter cable to connect a standard DisplayPort monitor. The

maximum supported resolution is 3840x2160@240 Hz when using a DisplayPort monitor, but the actual

resolutions supported are dependent on the monitor being used. Also, the connector is reversible and

supports the USB4

specication and is compatible to the USB 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2

Gen 1, and USB 2.0 specications. You can use this port for USB devices, too.

Ensure the antenna is securely connected to the antenna connectors and then aim the antennas

correctly for better signal reception.

After installing the HDMI device, make sure to set the default sound playback device to HDMI.

(The item name may differ depending on your operating system.)

(Note 1) To enable the Q-Flash Plus function, please navigate to the "Unique Features" page of GIGABYTE's

website for more information.

(Note 2) Actual support may vary by CPU.

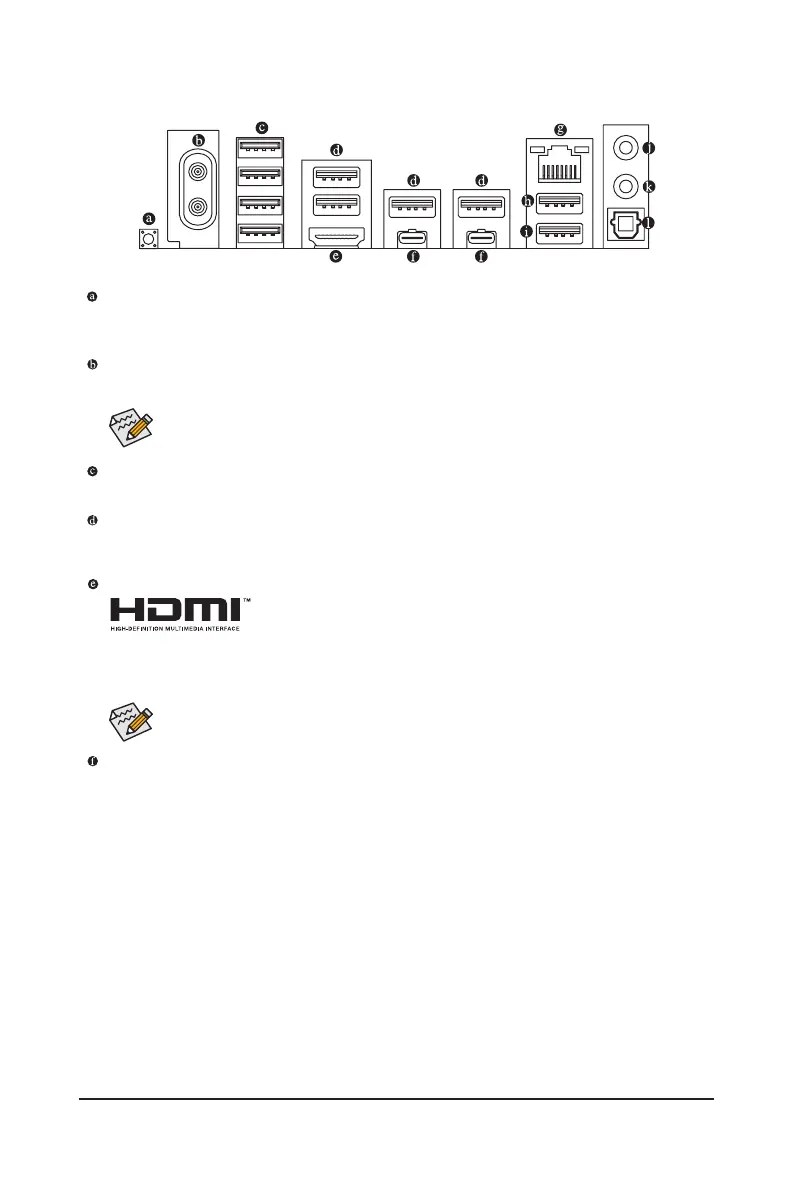

2-6 Back Panel Connectors
