page | 16
Appendix
Surface Mount Instructions

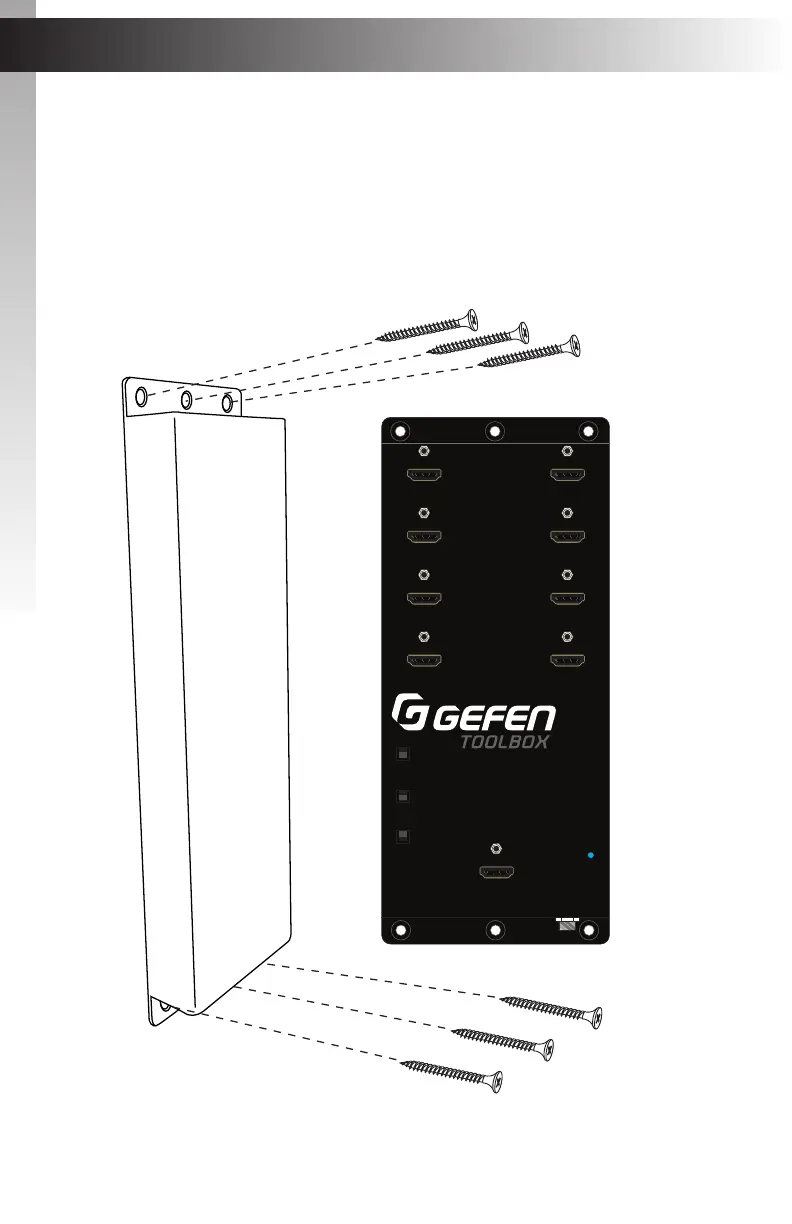

The 4K Ultra HD 1:8 Splitter for HDMI should be mounted vertically in a wall or cabinet
with wood/drywall screws as shown in the diagram above. There should be an inch or two
of clearance between the edges of the unit and any walls or vertical surfaces to allow for
enough clearance for insertion and retraction of cables at the HDMI connectors.
For installation on a drywall surface, use a #6 drywall screw. It is recommended when
installing on a drywall surface that studs be used to secure the splitter should undue stress
be applied when connecting and disconnecting HDMI cables.
4K Ultra HD
1:8 Splitter
for HDMI
Out 1
Out 2
Out 3
Out 4
Out 5
Out 6
Out 7
Out 8
In
Power
5V DCUSB
Int
Ext
EDID
Audio
FST
2ch
Multi-ch
Fast
Slow
Appendix
