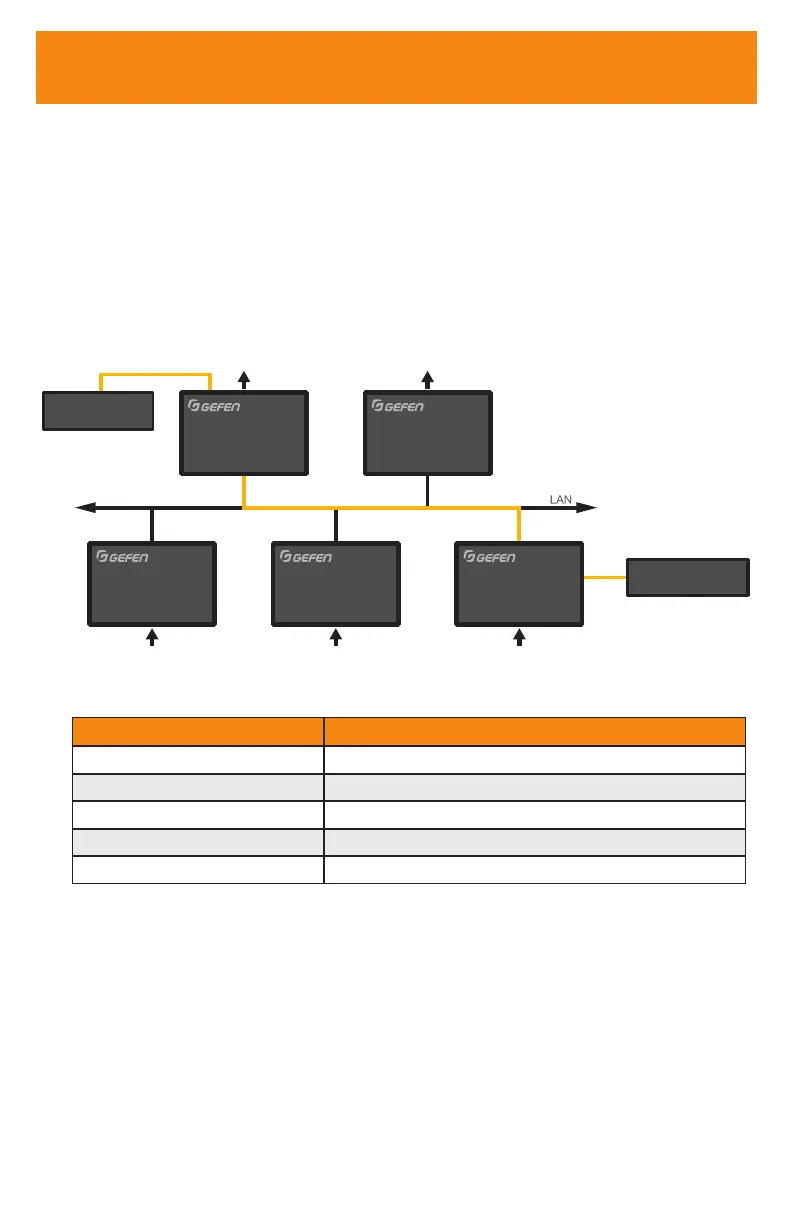

Using RS-232
The 4K Ultra HD HDMI & USB-C KVM over IP supports RS-232 pass-through, allowing
the control of remote RS-232 devices. The Sender and Receiver unit which are being
used to pass-through the RS-232 data must be set to the same baud rate as the RS-232
host and client.
In the example below, an RS-232 device has been connected to Receiver R1. We want
to control this product from Sender unit S3, using an automation control device. The
channel numbers are listed in blue.
R
2
S
1
IN
S
2
IN
S
3
IN
OUT
R
1
12 02
05 09 12
OUT
RS-232
DEVICE
AUTOMATION
CONTROL DEVICE
RS-232 settings for an arbitrary RS-232 device.
Description Setting
Baud rate 19200
Data bits 8
Parity None
Stop bits 1
Hardware ow control None
Conrm that the same RS-232 settings are assigned to both the Sender and Receiver
units. To do this, access the Web interface on both the required Sender unit and Receiver
unit to set the proper RS-232 settings. Follow the instructions on the next page.
1. Access the Web interface for the Sender unit and log in as “Administrator.”
2. Click the Functions tab.
Using RS-232
