OPERATING THE VGA EXTENDER SRN
Adjusting the Signal Quality
The Brightness and Focus adjustments are found on the Receiver Unit and will
help compensate for issues that can be introduced by outside interference and
cable skew variances.
If the outgoing image is too dark or too bright, the brightness trim pot can be
tuned to help brighten the image. If there is a ghosting or blurring effect on the
image, or if there is no output video or the image contains video artifacts such as
video noise / snow, use the steps below to adjust the Trim Pot.
1. Insert a small at head device, such as a screw driver into either the bright-
ness or focus trim pot hole.
2. Turn the trim pot in millimeter increments in either a clockwise or counter-
clockwise direction until the desired brightness and focus are reached.
3. Remove the adjustment device from the trim pot hole.

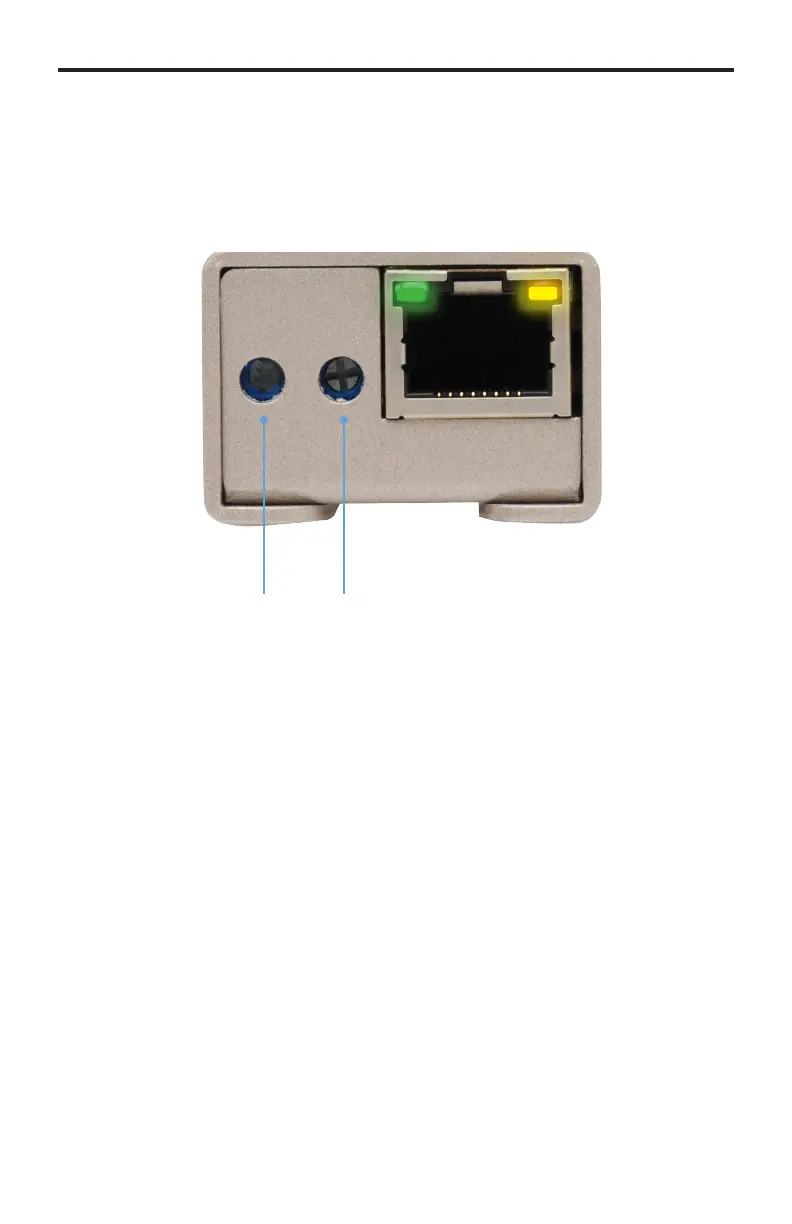

Focus trimpot Brightness trimpot
