3-1/8" Min.
1/4"
Max.
Required for Optimal
Handle Clearance
3-1/8"
3-1/8"
5/16"
5/16"
A
B
A
B
A
B
2-1/2"

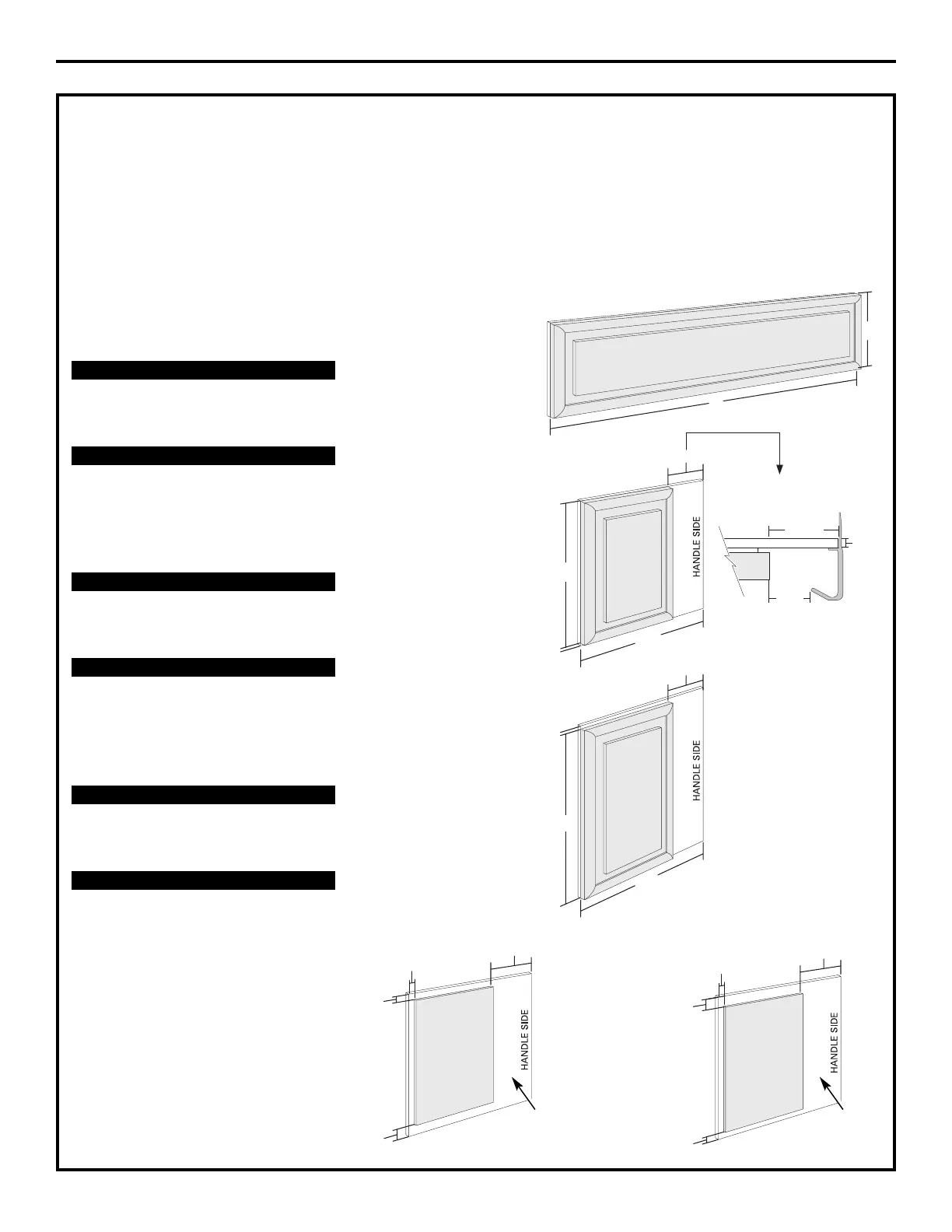

3/4″ FULL-WIDTH OVERLAY CUSTOM PANELS
This panel design provides a nearly trimless appearance.
Assemble the spacer panel onto the backer panel. Allow 1/2″ clearance on all four sides of the
grille spacer panel. Allow 1/2″ clearance on the top and hinge side, 15/16″ on the bottom and 3-5/8″
on the handle side of the upper freezer door panel. Allow 15/16″ on the top, 1/2″ clearance on the
bottom and hinge side and 3-5/8″ on the handle side of the lower freezer door panel. Secure the
panels with glue. Be sure to observe clearances on all sides.
Secure the appearance panel to the assembled backer/spacer panel. Use glue
and screws. Countersink screws into the backer panel.
Grille Panel
Lower Freezer Panel
Upper Freezer Panel
Installation Instructions
26
42″ Models A B
1/4″ Backer Panel 39-15/16″ 10-3/4″
0.10″ Spacer Panel 38-15/16″ 9-3/4″
3/4″ Overlay Panel 40-3/16″ 11″
48″ Models A B
1/4″ Backer Panel 45-15/16″ 10-3/4″
0.10″ Spacer Panel 44-15/16″ 9-3/4″
3/4″ Overlay Panel 46-3/16″ 11″
42″ Models A B
1/4″ Backer Panel 16-7/16″ 35-1/8″
0.10″ Spacer Panel 12-5/16″ 33-11/16″
3/4″ Overlay Panel 13-7/16″ 34-15/16″
48″ Models A B
1/4″ Backer Panel 18-7/16″ 35-1/8″
0.10″ Spacer Panel 14-5/16″ 33-11/16″
3/4″ Overlay Panel 15-7/16″ 34-15/16″
42″ Models A B
1/4″ Backer Panel 16-7/16″ 17-13/16″
0.10″ Spacer Panel 12-5/16″ 16-3/8″
3/4″ Overlay Panel 13-7/16″ 17-5/8″
48″ Models A B
1/4″ Backer Panel 18-7/16″ 17-13/16″
0.10″ Spacer Panel 14-5/16″ 16-3/8″
3/4″ Overlay Panel 15-7/16″ 17-5/8″
3-5/8"
15/16"
1/2"
1/2"
Spacer
Panel
Finished
Backer Panel
3-5/8"
1/2"
15/16"
1/2"
Spacer
Panel
Finished
Backer Panel
Upper Freezer Panel
Spacer Assembly
Lower Freezer Panel
Spacer Assembly
