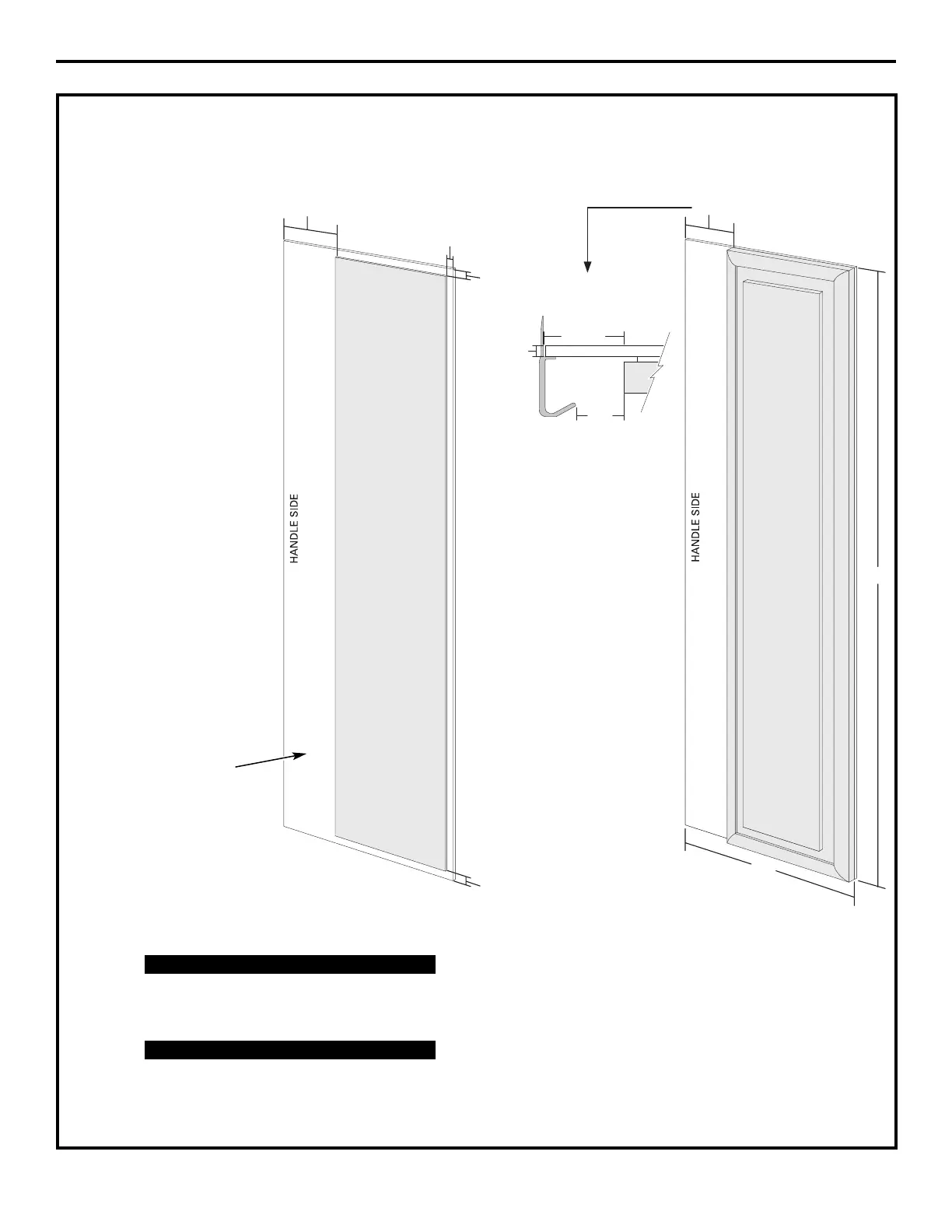

3/4″ FULL-WIDTH OVERLAY CUSTOM PANELS
This panel design provides a nearly trimless appearance.
Assemble the spacer
panel onto the finished
backer panel. Allow
1/2″ clearance on the
top, bottom and hinge
side. Allow 3-5/8″ on
the handle side. Secure
the panels with glue.
Be sure to observe
clearances shown on
all sides.
Secure the overlay
panel to the assembled
backer/spacer panel.
Use glue and screws.
Countersink screws
into the backer panel.
Installation Instructions
25
42″ Models A B
1/4″ Backer Panel 22-5/16″ 67-7/8″
0.10″ Spacer Panel 18-3/16″ 66-7/8″
3/4″ Overlay Panel 19-5/16″ 68-1/8″
48″ Models A B
1/4″ Backer Panel 26-7/16″ 67-7/8″
0.10″ Spacer Panel 22-5/16″ 66-7/8″
3/4″ Overlay Panel 23-7/16″ 68-1/8″
3-5/8"
1/2"
1/2"
1/2"
Fresh Food Panel
Spacer
Panel
Finished
Backer
Panel
