For multiple walk-through metal detector operation
(units within 25’ to 100’ of each other depending on
sensitivity setting), certain power requirements and
installation adjustments are necessary to avoid cross talk
(interference) among units.
ere are several ways to successfully install multiple
walkthroughs in close proximity with no crosstalk. e
following examples are aimed to help the installer deter-
mine an appropriate method for eliminating crosstalk.

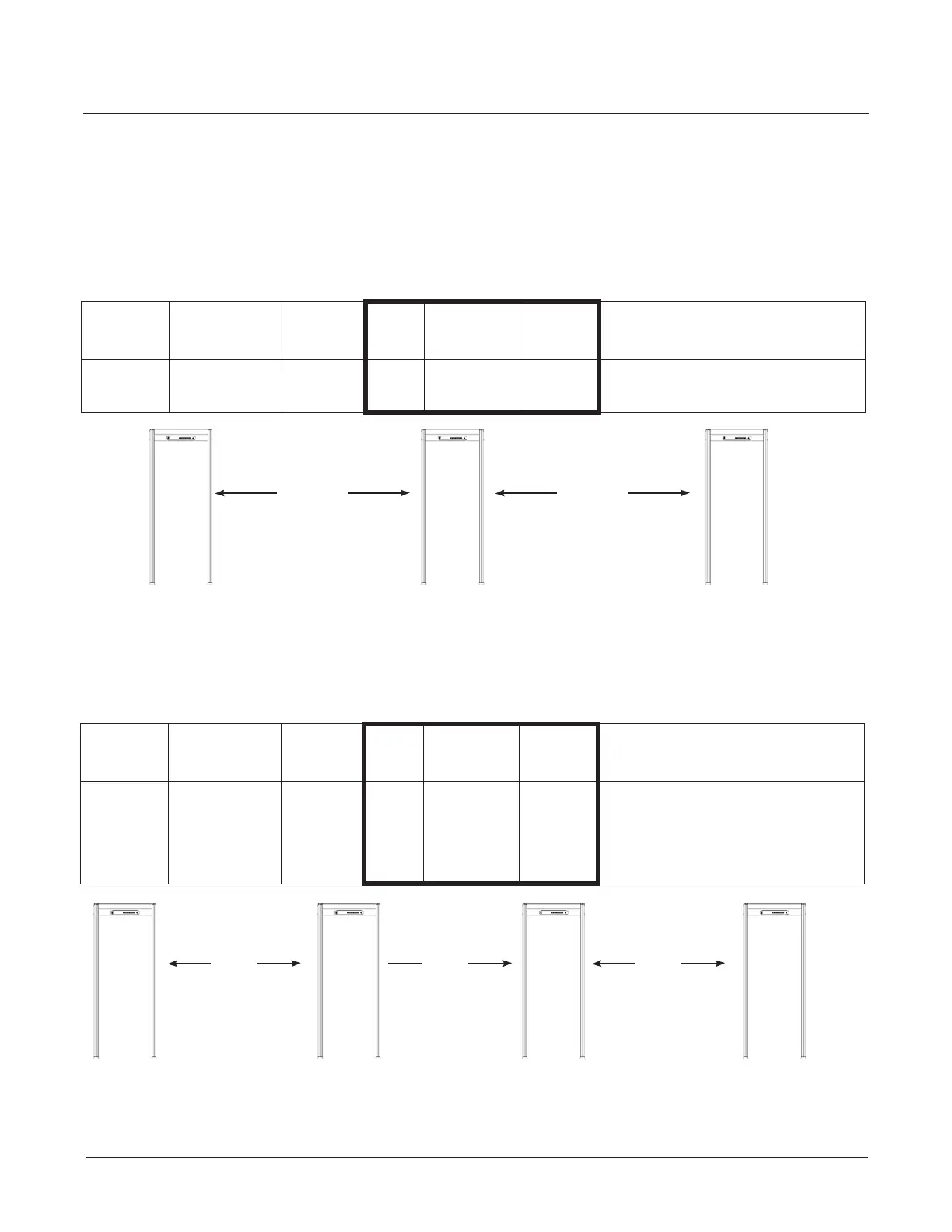

7. MULTIPLE WALK-THROUGH SITE INSTALLATION
7.1 CASE 1
All detectors are Paragons, separated by 100 feet or more, connected to the same AC-Line Phase.
Distance to
Adjacent
Unit
More than
100 feet
Sync Method
None
required
Detector
Location
Any
Multi-
Unit
Role
Solo
Frequency
Any
Channel
Any
Notes
Frequency Scan if bar graph is noisy.
7.2 CASE 2
Spacing between detectors is 25 feet to 100 feet.
Distance to
Adjacent
Unit Sync Method
Detector
Location
Multi-
Unit
Role Frequency Channel Notes
1. Begin with all units o.
2. Switch on one unit.
3. Perform Frequency Scan.
4. Leave unit on and repeat steps 2-4
for all other units, one unit at a time.
Paragon Paragon Paragon
More than
100’
More than
100’
Role: Solo
Frequency: Any
Channel: Any
Role: Solo
Frequency: Any
Channel: Any
Role: Solo
Frequency: Any
Channel: Any
……
Paragon Paragon
25’ to
100’
Role: Solo
Frequency: Perform Scan
Channel: Any
Paragon
25’ to
100’
Paragon
25’ to
100’
Role: Solo
Frequency: Perform Scan
Channel: Any
Role: Solo
Frequency: Perform Scan
Channel: Any
Role: Solo
Frequency: Perform Scan
Channel: Any
25 to 100
feet
Frequency
Oset
(in increments
of 39 units)
Any Solo
Perform
Auto
Frequency
Scan
Any
