12 1557900 REV B 1 Garrett Metal Detectors
PANEL A
PANEL B
CABLE
RECEPTACLE
POWER CORD
CONTROLLER
MODULE
POWER
MODULE
CABLE A
CABLE B
SPEAKER
BATTERY
3.2 Unit Assembly
Assemble the unit and position it at the checkpoint
location, connect to power, set the desired program / op-
erating procedures, check for interference, and perform
necessary tests.
• Assembly
e following steps will assist in the assembly of Paragon
including the mechanical assembly and electrical con-
nections. For additional documentation, please visit our
Sharele website at https://garrett.sharele.com.
1. Verify that the following contents are included:
• Panel A
• Panel B (MOTION sensor panel)
• Detection unit (head)
• Beacon Crosspiece (support brace)
• 2’ AC jumper cord
• 10’ power cord
• Eight 1/4 -20x3.29” screws
• Eight nishing washers
Tools:
• Drill or electric screwdriver w/
No. 3 screwdriver bit
Accessories:
• Quick Start Guide
• Pocket item container (coin tray)

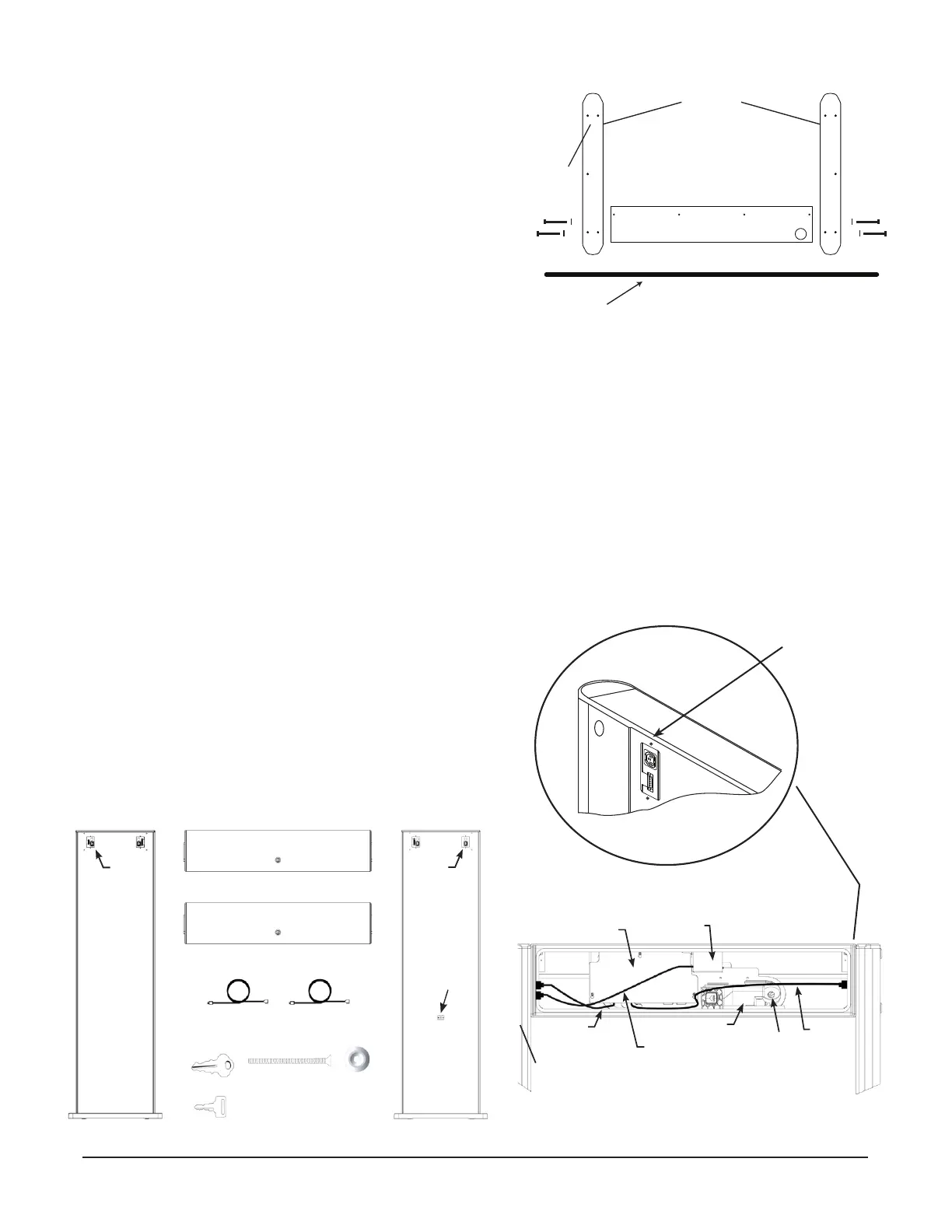

2. Arrange the major components as shown in
Figure 3–4.
3. Place the packing insert on oor as shown in
Figure 3–5. Lay detection unit (with keypad
panel facing down) on packing insert. Place the
panels as shown with Panel A (no MOT 1000
sensor) on the left side. Make sure the lip on
the spacer that is mounted to the detection unit
ts inside the opening on the panel. is helps
hold the unit in place and ensures the screws are not
cross-threaded and inserted properly. Use a No. 3
Phillips bit or screw-driver to connect detection
unit to the panels with four screws and nishing
washers. Do not tighten!
4. Connect Panel Cables
Open the door of the detection unit. Connect
cables A (44-pin) and B (44-pin) into the
corresponding panels. (See Figure 3–6.)
FIGURE 3-4
FLOOR
Bubble wrap
Packing Insert
DETECTION UNIT
PANELS
FIGURE 3-5
CABLE
RECEPTACLE
FIGURE 3-6
Installation
PANEL B
PANEL BPANEL A
2’ AC
Jumper Cord
10’ Power Cord
Brass Key
Silver Key
Custom 1/4–20
Phillips head (8)
Beacon Crosspiece
Detection Unit
Motion
Sensor
Dust
cover
Dust
cover
Washer (8)
