3. INSTALLATION
9

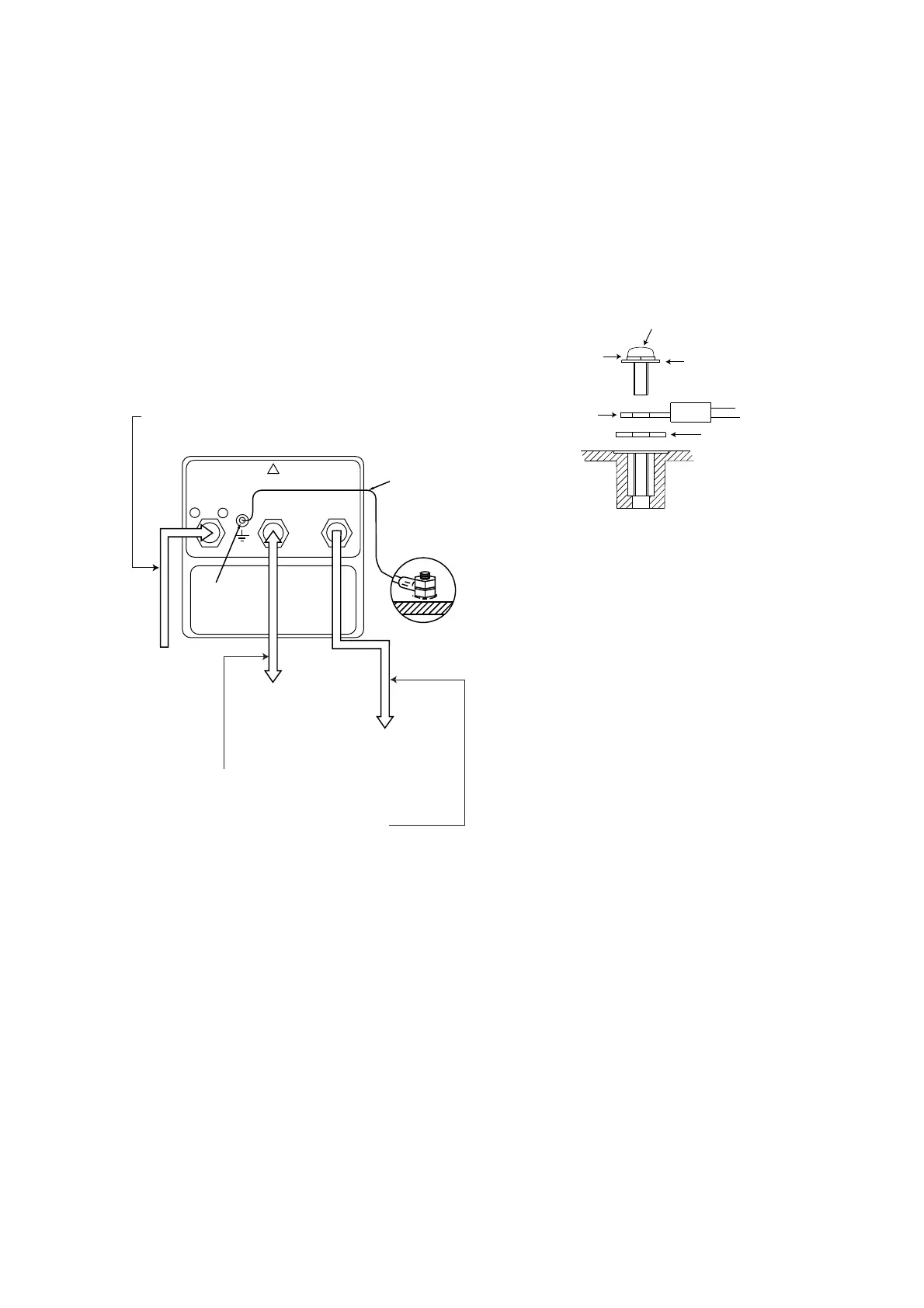

3.2 Connections
Connect cables as shown below.
Leave sufficient slack in cables for
maintenance and checking ease. If cables
run outside the bridge, run them through
conduit to protect them from corrosion.
Note: The NMEA port (the mid position) can
receive and send data. However,
when connecting with the
NAVpilot-500 or RD-30, the NMEA
port is for output only.
-
+
BOW
12-24 VDC
NMEA
AD10
Grounding
12-24 VDC
or
Processor Unit
of NAVpilot-500
Ground
terminal
External equipment
(Radar, etc.)
Ground cable
(Local supply)
External equipment
(Current Indicator, etc.)
MJ-A6SPF0007-100
(supplied as installation material)
12-24 VDC: MJ-A7SPF0009-020 (supplied)
NAVpilot-500: MJ-A7SPF0010-100
(supplied with the NAVpilot-500)
MJ-A6SPF0003-050 (option)
Sensor, top view
Grounding
Ground the equipment as follows to prevent
loss of sensitivity:
• The ground wire should be as short as
possible.
• The ground wire should be about 1.25 sq
and not contain steel.
• Use only a closed-end lug.
Pan head screw
Spring washer
Flat washer
Crimp-on lug
(closed,
local supply)
Seal washer
Ground wire
(1.25 sq,
local supply)
Ground terminal, sectional view
Connection of external equipment
NMEA: Digital interface NMEA format
input/output terminal.
Output: HDG, HDT, HDM (Magnetic
Heading)
Input*: RMC or VTG
AD-10: Outputs heading information in
AD-10 format.
12-24VDC: Power input, Digital interface
NMEA format input/output terminal
Output: HDG, HDT, HDM (Magnetic
Heading)
Input*: RMC or VTG
*Only one port can be for Input.
Note: Cover unused connector(s) with the
rubber cap (supplied) to prevent
ingress of water.
