2. WIRING
2-6

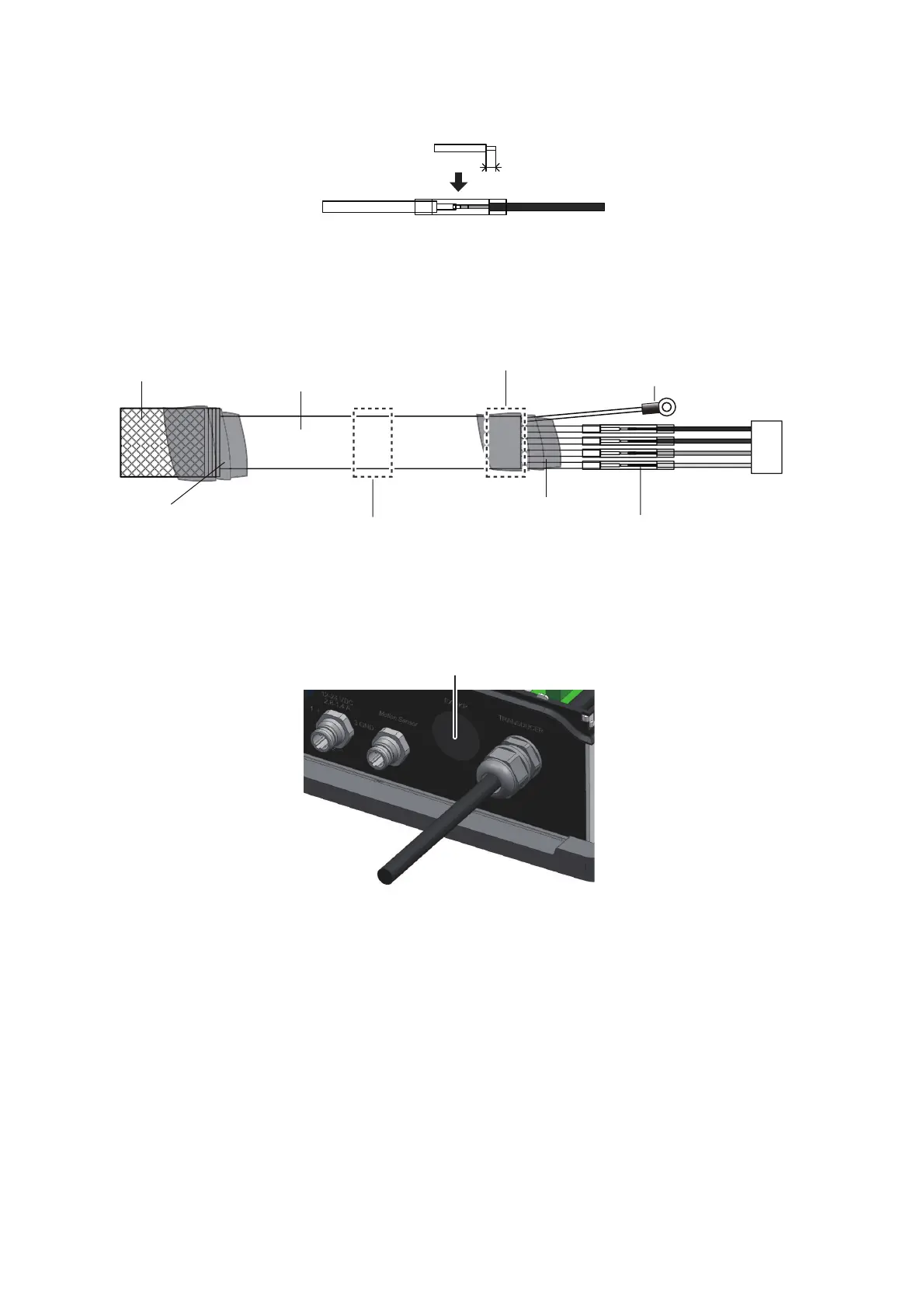

e) Remove 5 mm of the vinyl sheath from the cores then connect a crimp-on lug
to each core as shown below.
f) Attach supplied crimp-on lug (FV1.25-4(LF) RED)) to the shield.
g) Referring to the illustration below, wrap the armor with vinyl tape at the loca-
tions shown. Pass the cable through its cable gland. Fix the cable with the ca-
ble clamp and sealing nut.
2. Remove the outer cover.
3. Loosen four screws to remove the inner chassis cover.
4. Detach the protective sheet from the location for the external KP cable.
Approx. 5 mm
This part is fixed with
the sealing nut.
Lay this part in
the cable clamp.
Armor
Vinyl sheath
NCW-1.25
Wrap with
vinyl tape.
Wrap with
vinyl tape.
Crimp-on lug
FV1.25-4(LF) RED
Protective sheet
