2. INTERPRETING THE DISPLAYS
2-9
2.4 Course Plot Display

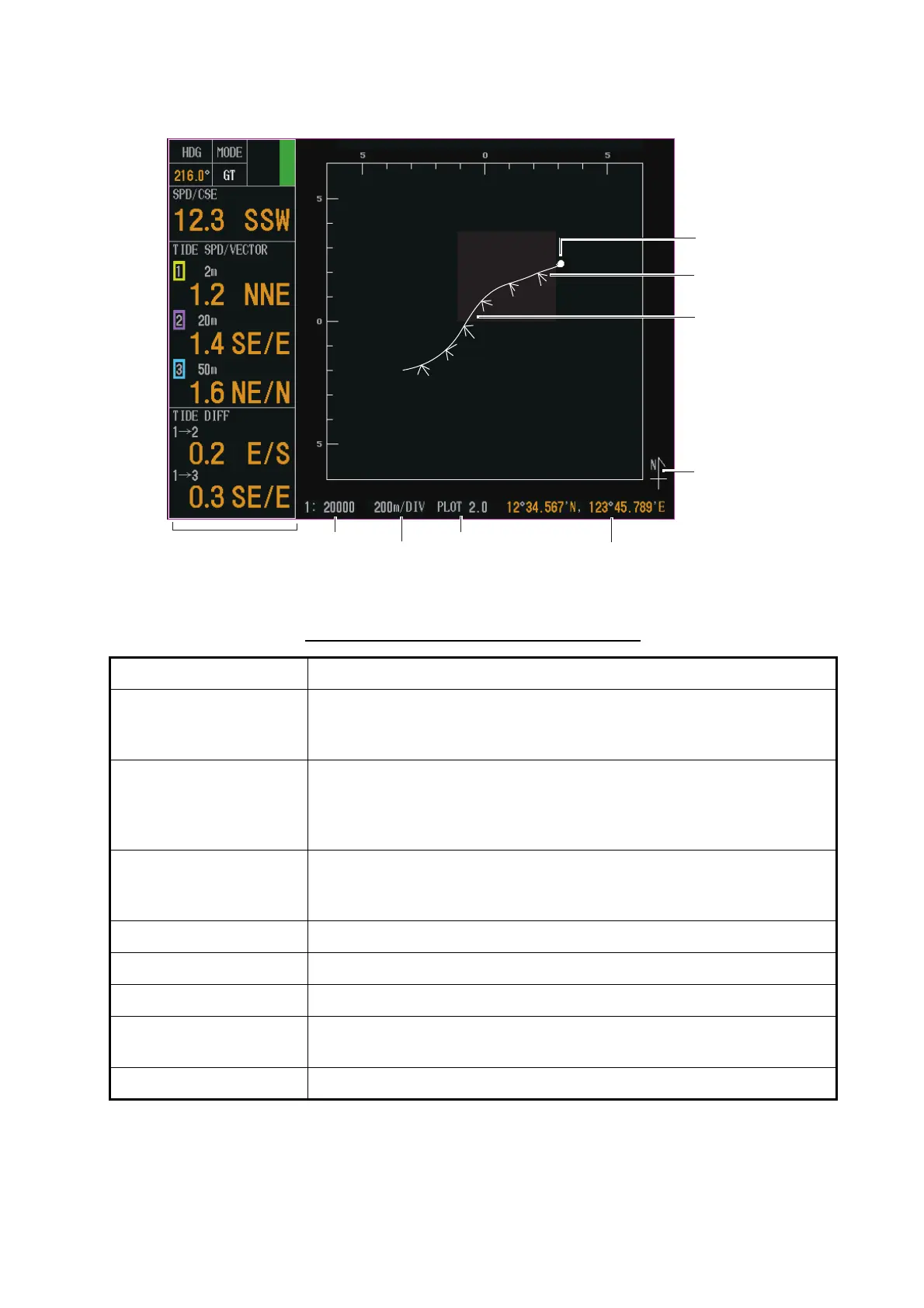

Course plot display
Description of course plot display indications
Item Description
Text window The text window can be turned on or off with TEXT WINDOW in the
DISP2 menu. With the text window turned off, the amount of track dis-
played is greater.
Ship's track Ship's track is drawn with a white solid line. Ship's track starts extending
from the screen center and when own ship position reaches the edge of
the screen it is brought back to the screen center. You may turn the
ship's track line on or off with SHIP TRACK in the DISP2 menu.
Tide vector The length of the tide vectors may be chosen with VECTOR LENGTH in
the DISP2 menu. Vectors may be turned on or off with LAYER 1 - LAY-
ER 3 in the DISP1 menu.
North mark The north mark points upward on the course plot display.
Scale You may choose the scale with SCALE in the DISP2 menu.
DIV Shows range per scale division.
Tide display interval You may choose the tide display interval with INTERVAL in the DISP2
menu. In the illustration above the interval is "2".
Position Position is shown in latitude and longitude.
Own Ship Position
Tide Vector
Ship's Track
North Mark
*
: Sensor required.
Position*
Tide Display Interval
DIV
ScaleText Window
kn
kn
kn
