1. OPERATIONAL OVERVIEW
1-24

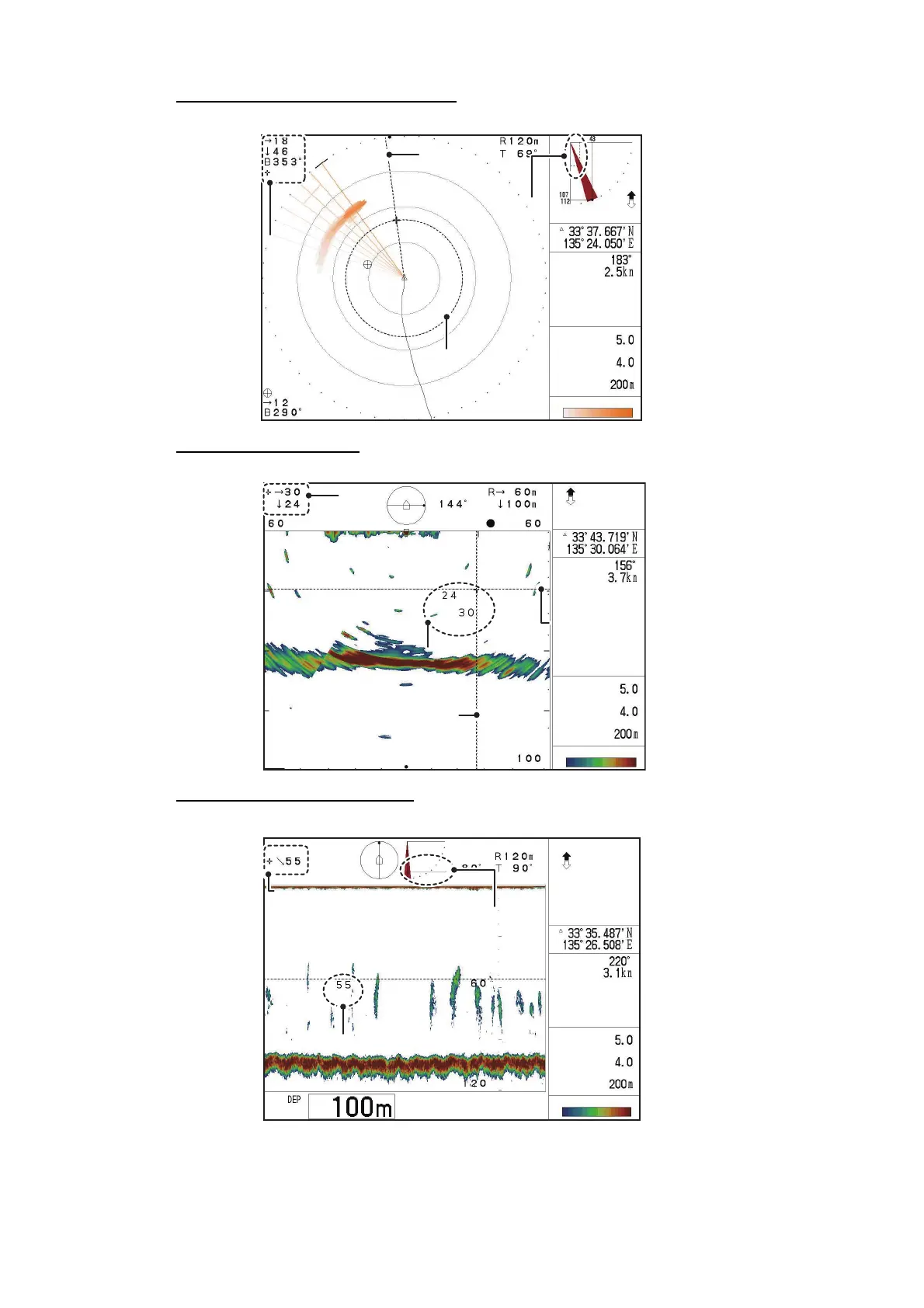

Full-circle A-Scope display mode
Vertical display mode
Echo sounder display mode
GAIN
CSE
SPD
TVG LEVEL
DISTANCE
COLOR
Range ring
shown as a
dashed line
Range ring
shown as a
dashed line
Cursor location
indicator shows
horizontal range,
depth and bearing
to cursor location
Cursor location
indicator shows
horizontal range,
depth and bearing
to cursor location
Train indication
shows horizontal
range and depth
as a dashed line
Train indication
shows horizontal
range and depth
as a dashed line
Bearing line
shown as a
dashed line
Bearing line
shown as a
dashed line
GAIN
PORT
STBD
CSE
SPD
TVG LEVEL
DISTANCE
COLOR
Cursor location
indication shows
horizontal range
and depth to
cursor location
Cursor location
indication shows
horizontal range
and depth to
cursor location
Depth mark
shown as a
horiztontal
dashed line
Depth mark
shown as a
horiztontal
dashed line
Range and depth displayed
numerically at cursor position
Range and depth displayed
numerically at cursor position
Range mark shown as
a vertical dashed line
Range mark shown as
a vertical dashed line
GAIN
CSE
SPD
TVG LEVEL
DISTANCE
COLOR
Cursor location indication
shows range to cursor
location.
Cursor location indication
shows range to cursor
location.
Depth range to marker displayed
numerically. Indication moves with the
range line.
Depth range to marker displayed
numerically. Indication moves with the
range line.
Train indication shows
depth as a dashed line.
Train indication shows
depth as a dashed line.
