1. OPERATIONAL OVERVIEW
1-22
1.14 How to Use the Event Marker
The event marker function marks important locations on the display, and up to five
markers may be inscribed. This function requires connection to speed and positions
sensors. When [TLL Output] is set to [ON], the CH-600 outputs event mark information
to the external navigational equipment such as a gyrocompass, a GPS receiver and
so on. Press key to output own ship information from NMEA2000 port.
The procedure to inscribe an event mark is the same for all display modes.
1.14.1 How to inscribe an event mark
When the capacity for event marks is reached, the oldest mark is erased to make room
for the newest mark.
Note 1: For Horizontal and Full-circle A-scope display modes, the range and bearing
for the latest event mark is displayed at the bottom-left of the screen.
Note 2: Where Horizontal + Cross-Section display mode is in use, event marks can
only be inscribed in the main window.
To inscribe an event mark, move the cursor to the location to mark, then press the
EVENT key .

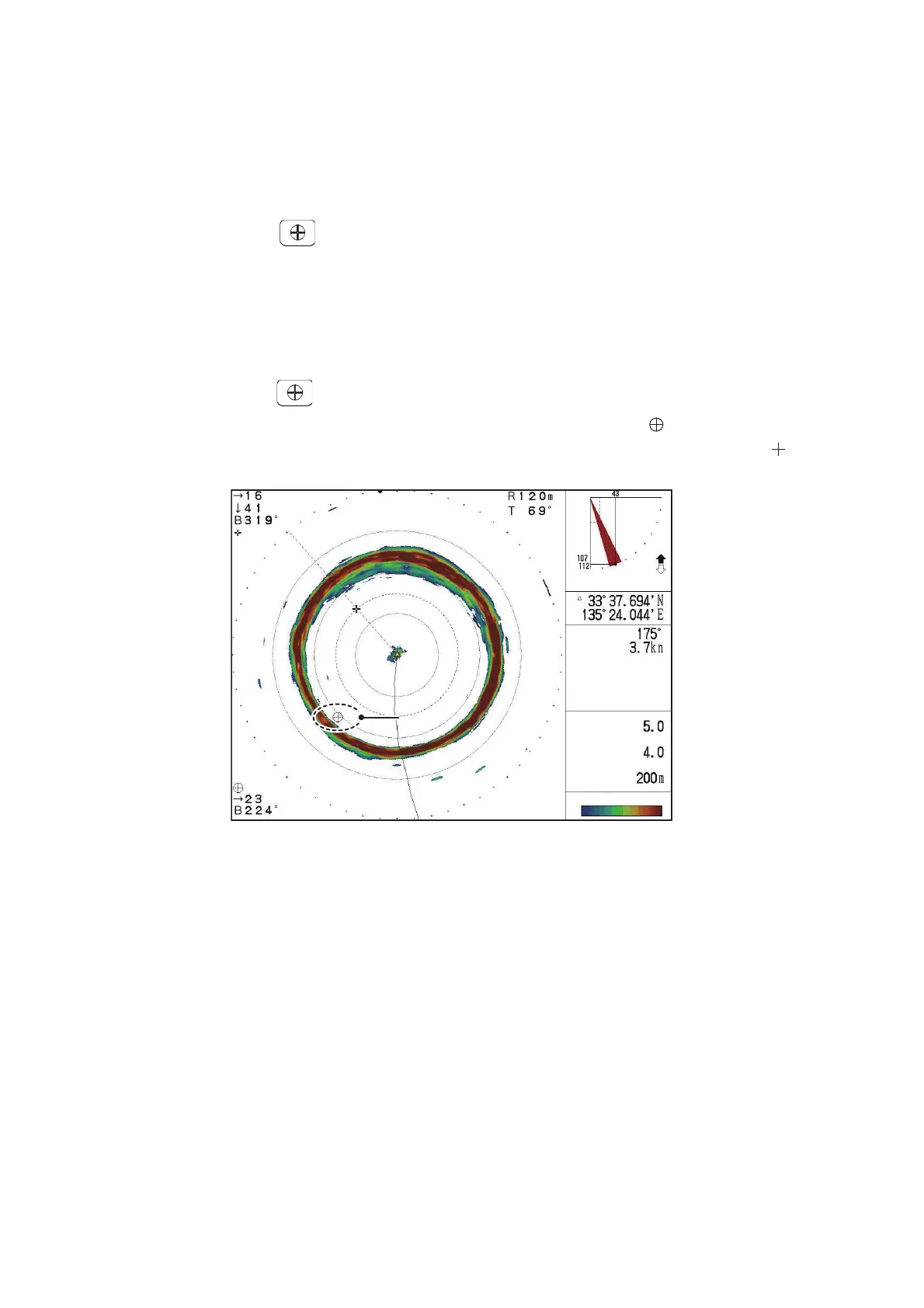

Each time the EVENT key is pressed, the latest event mark icon ( ) appears at the cur-
sor location. All previous marks are displayed with the previous event mark icon ( ).
CSE
SPD
GAIN
TVG LEVEL
DISTANCE
COLOR
Event mark inscribedEvent mark inscribed
