2. INSTALLATION AND INITIAL SETTINGS
2-6
2.2 Wiring

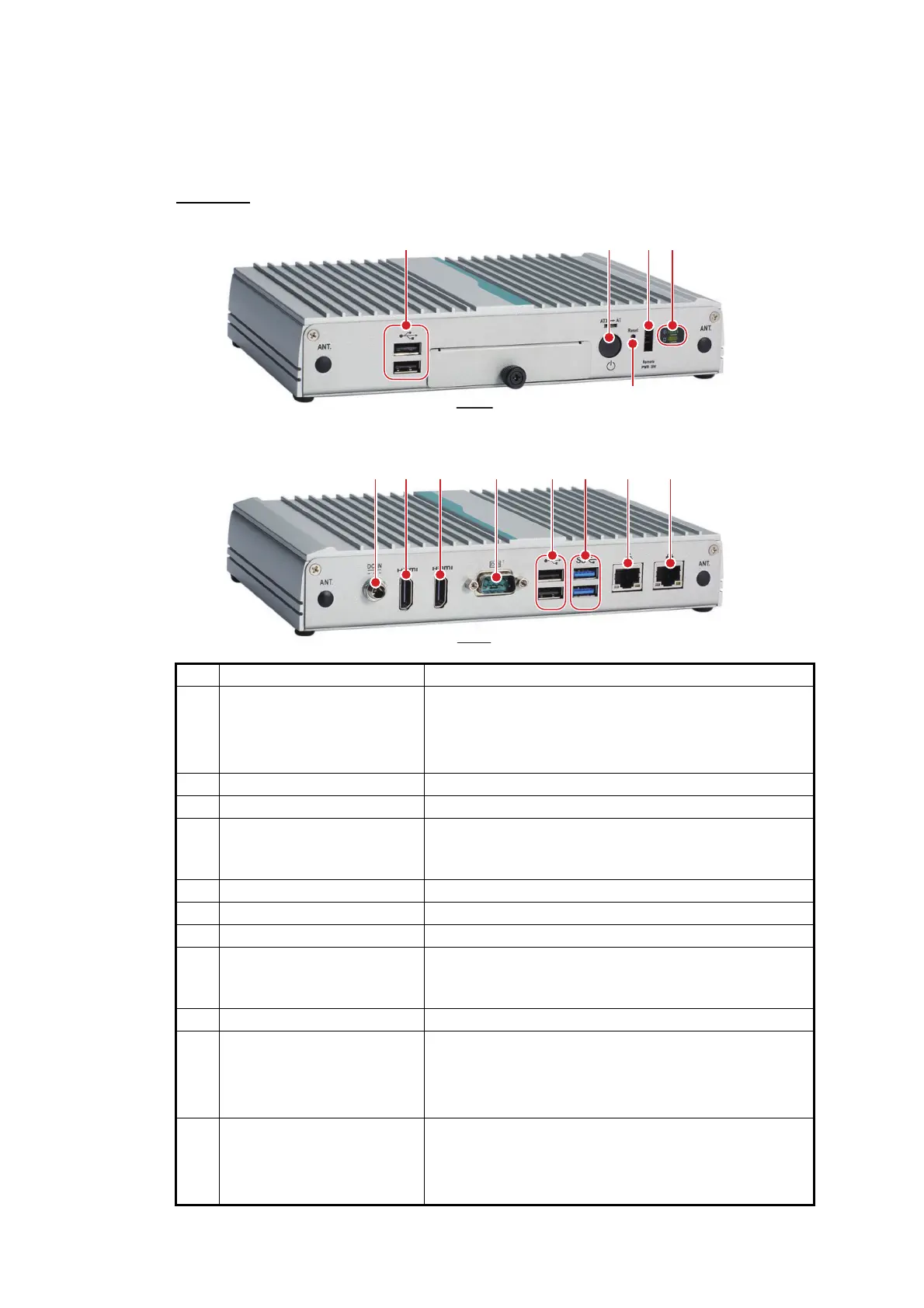

2.2.1 Main PC
Interface
No. Name Description
1 USB2.0 Port 2 USB2.0, used for connecting the trackball, ENC
dongle, USB flash memory and USB keyboard*.
Note: Do not connect a USB device other than the
above-mentioned devices.
2 Power Button Turns the system on/off.
3 Reset Button Resets the system.
4 Remote PWR Switch Port Connect a remote switch (locally supplied), using the
supplied remote switch cable, to turn the system on/
off from the remote switch.
5 LED Indicator Upper is for power, lower is for SSD.
6 12 VDC Power Input Port Connect the supplied AC adapter.
7 HDMI 2 Port Not used.
8 HDMI 1 Port Connect a monitor unit (locally supplied), using the
supplied HDMI cable. It is recommended to use a
monitor whose resolution is full HD (1920 1080).
9 Serial Port RS-232C port, Not used.
10 USB2.0 Port 2 USB2.0, used for connecting the trackball, ENC
dongle, USB flash memory and USB keyboard*.
Note: Do not connect a USB device other than the
above-mentioned devices.
11 USB3.0 Port 2 USB3.0, used for connecting the trackball, ENC
dongle, USB flash memory and USB keyboard*.
Note: Do not connect a USB device other than the
above-mentioned devices.
Front
Rear
12
6 7 8 9
10 11 12
13
3
4 5
