2-1
2. INSTALLATION AND INITIAL
SETTINGS
The procedure for the installation of the AR navigation system is as follows.
1) Mount and wire each unit, referring to section 2.1 and section 2.2.
2) Login as a service technician and enter the initial settings, referring to section 2.3.
3) Confirm the system operation, referring to section 2.4.
2.1 Mounting
2.1.1 Main PC
Note: Locate the unit away from direct sunlight.

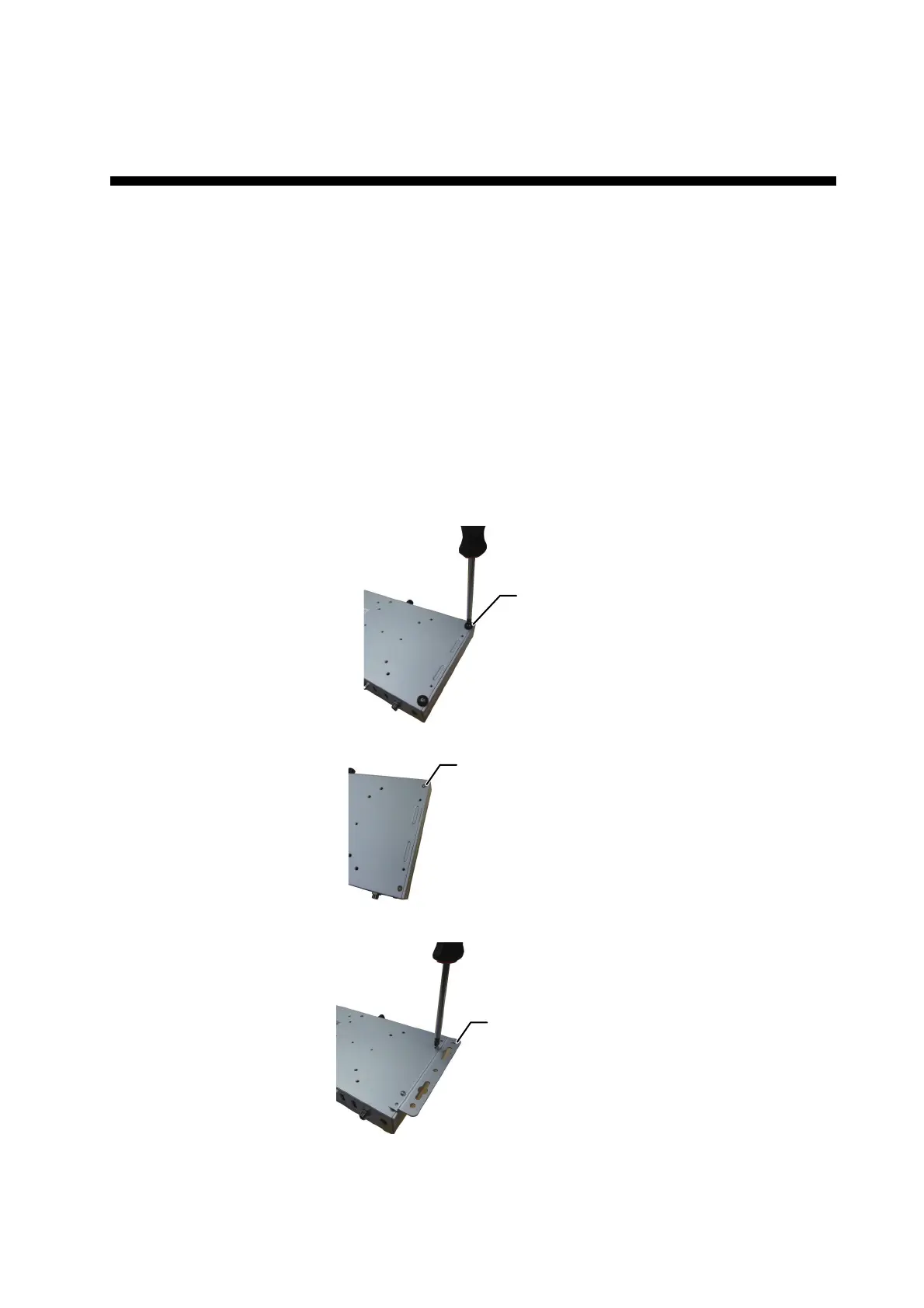

1. Unfasten four screws to remove the four foot pads at the bottom of the main PC.
2. Insert the supplied four countersunk screws to the screw hole for the foot pad.
3. Attach two mounting brackets to the main PC, using the supplied screws.
4. Drill four pilot holes in the mounting location for the mounting screws.
5. Secure the unit using the four supplied self-tapping screws and flat washers.
Foot pad
(4 pcs)
Countersunk screw
(4 pcs)
Mounting bracket
(2 pcs)
