C US
15 AMP
MINIPORT
120 VAC, 50/60 Hz
MAX LOAD 15A
POWER
EXTREME VOLTAGE
CLASS 2 WIRING
FORCE
OFF
P
P
S
S
SECONDARY
LINK
SMARTSEQUENCING
OUT
IN
+12V
STAT
REM
GND
DLY OUT
REMOTE
PORT
PRIMARY
LINK
BYPASS
120 VAC
/60/HZ
A MAX.
15 AMPS
PUSH TO RESET
C US
CN-15MP
3
Important Safety Instructions
1. Please read and follow all instructions.
2. Please keep these instructions.
3. Please heed all warnings.
4. WARNING: This device is intended for indoor use only. Do not use this device
near water. To reduce the risk of fire or electric shock, do not expose this device
to rain or moisture.
5. CAUTION: To reduce risk of shock, please disconnect the CN-15MP / CN-
20MP Sequencer from AC power before servicing any equipment connected to
the CN-15MP / CN-20MP Sequencer.
6. Clean only with dry cloth.
7. CAUTION: Do not install near any heat sources such as radiators, heat regis-
ters, stoves, or other equipment that may produce heat.
8. Protect the power cord from being walked on or pinched, particularly at plugs
and the point where they exit the device.
POWER Illuminated GREEN indicates when
the AC duplex is powered.
POWER PROTECTION INDICATORS
EXTREME VOLTAGE Illuminated RED when
an extreme voltage condition is present
(consequently, all outlets are powered off).
SECONDARY LINK – Multi-color LED indicates the condition
of communication between the Secondary Link and the
Primary Link of the following unit.
PRIMARY LINK – Multi-color LED indicates the condition
of communication between the Secondary Link and the
Primary Link of the preceding unit.
CIRCUIT BREAKER 15A Press to
reset in the event of current overload.
No circuit breaker on CN-20MP
CONNECTION STATUS LIGHTS
CN-15MP
TWO NEMA 5-15R AC RECEPTACLES
CN-15MP
10 FT. AC POWER CORD
3/14 AWG, NEMA 5-15P PLUG
9. Please, only use accessories specified by the manufacturer.
10. Refer all servicing to qualified personnel.
Servicing is required when the unit has been damaged in any way or fails to
operate.
11. WARNING: Do not use power cord as the main power disconnect. The device
is intended for AC power sequencing.
12. Do not defeat the safety purpose of the polarized plug. A polarized plug has
two blades, with one wider than the other. The wide blade is provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet. (*See below for 20A plug)
13. Do not defeat the safety purpose of the grounding prong. A ground type plug
has two blades and a third grounding prong. The third prong is provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
14. WARNING: This device must be connected to an AC outlet with a protective
earth ground connection.
SmartSequencing Barrier Strip (1)
Primary terminals connect OUT to Secondary terminals
of next SmartSequencing device.
Secondary terminals connect IN from Primary terminals
of previous SmartSequencing device.
NOTE: Chain units in series.
Force Off Barrier Strip (2)
Remote Barrier Strip (3)
+12V - Main DC terminal output for remote triggering
STAT - DC terminal output for a remote LED indicator (ANODE)
REM - Main terminal input for remote triggering
GND -
Terminal for remote LED status and/or triggering (CATHODE)
DLY OUT - Legacy Miniport compatible Delay On function
FORCE OFF Provides immediate
shutdown by fire alarm
PHOENIX TYPE CONNECTORS
CN-20MP
TWO NEMA 5-20R
AC RECEPTACLES
CN-20MP
10 FT. AC POWER CORD
3/12 AWG, NEMA 5-20P PLUG
CLASS 2 WIRING
CN-20MP
FORCE
OFF
P
P
S
S
PRIMARY
LINK
SECONDARY
LINK
POWER
SMARTSEQUENCING
OUT
IN
120 VAC, 50/60 Hz
MAX LOAD 20A
20 AMP
MINIPORT
+12V
STAT
REM
GND
DLY OUT
REMOTE
PORT
EXTREME VOLTAGE
C US

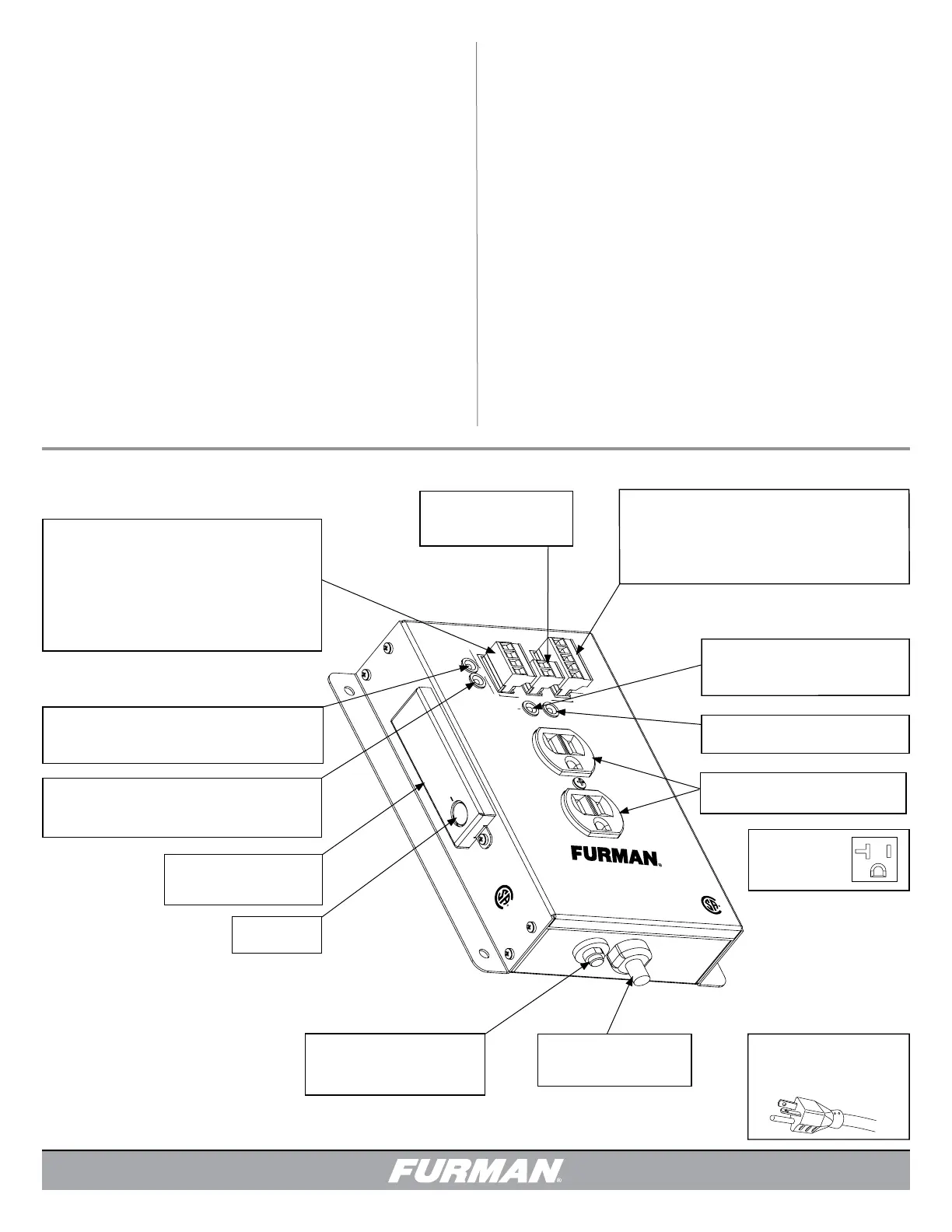

ABBREVIATED PRODUCT FEATURES
SECURITY PLATE Protects DIP
Switches and Delay Adjustment
Settings
BYPASS SWITCH
For force on
