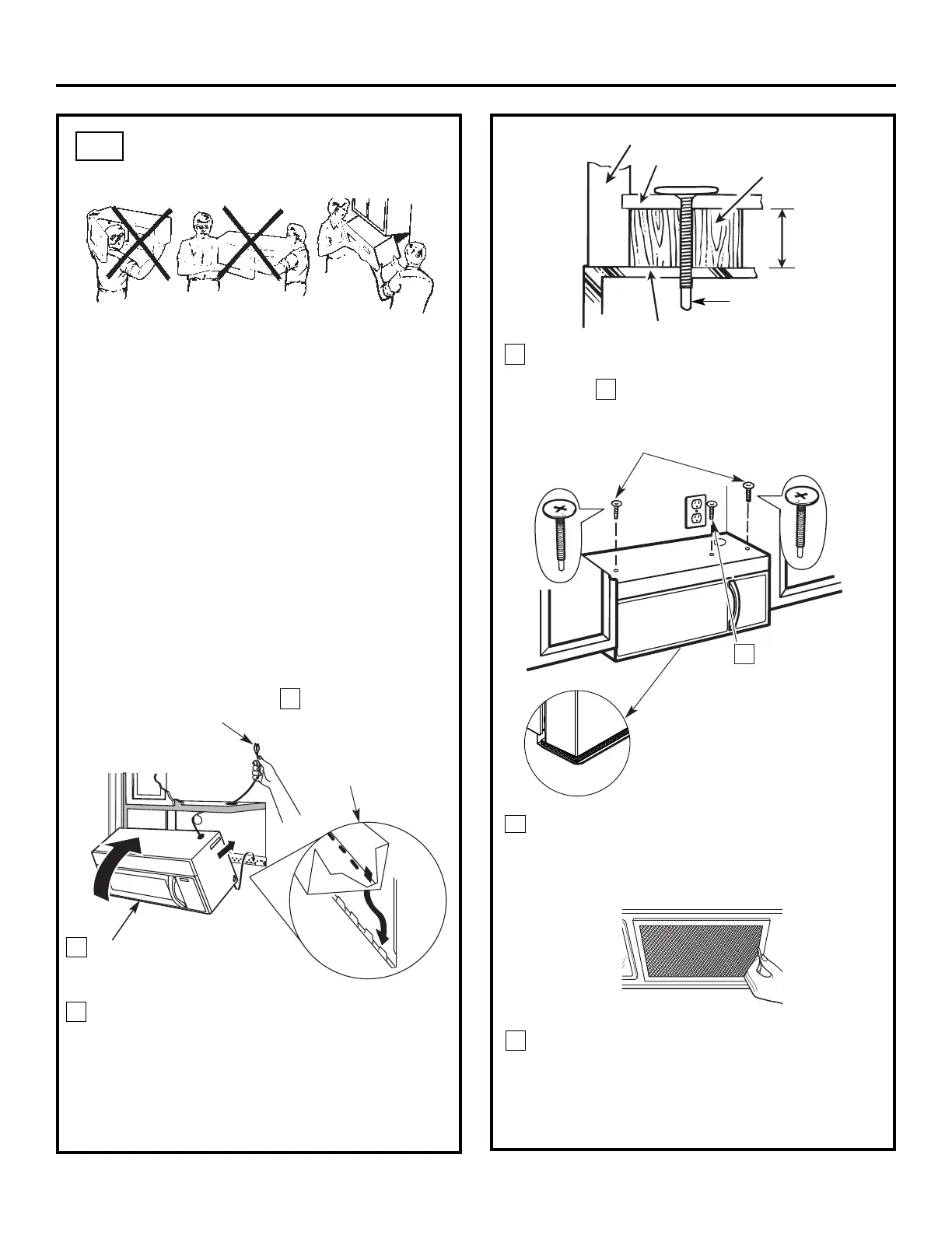

nstallation Instructions
3
MOUNT THE
MICROWAVE OVEN
B6.
8
7
5
Cabinet Front
Cabinet Bottom Shelf
Tighten the outer two screws to the top
of the microwave oven. (While tightening
screws, hold the microwave oven in place
against the wall and t
he top cabinet.)
Filler Block
Equivalent
to Depth
of Cabinet
Insert 2 self-aligning
screws th
rough outer
top cabinet holes. Turn
two full turns on each
screw.
Recess
Self-Aligning Screw
Microwave Oven Top
Attach the microwave oven to the top
cabinet.
4
2
Rotate front of oven
up against cabinet
bottom.
Insert a self-aligning screw through top
center cabinet hole. Temporarily secure the
oven by turning the screw at least two full
tu
rns after the threads have engaged. (It
wi
ll be completely tightened later.) Be sure
to keep power cord tight. Be careful not to
pinch the cord, especially when mounting
flush to bottom of cabinet.
NOTE
: When mounting the
microwave oven, thread
power cord through hole
in bottom of top cabinet.
Keep it tight throughout
Steps 1–3. Do not pinch
cord or lift oven by pulling
cord.
Li
ft microwave,
tilt it forward, and
hook slots at back
bottom edge onto
four lower tabs of
mounting plate.
1
Tighten center
screw
completely.
Install grease filters. See the Use
& and Care packed with th
e microwave.
IMPORTANT: Remove the cardhoard spacers
between heat shield and door.
FO
R EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or use the
handle or heat shield during installation.
Do not remove the cardboard spacers
between the heat shield and door.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom
shelf.
IMPORTANT: If filler blocks are not
used, case damage may occur from
overtightening screws.
6
EN-19
