C. INSTALLATION OF THE UNIT

NOTE: The Wall Sleeve must be

horizontally level (side-to-side)

and pitched 1/4 bubble to the

outside when installed in an

opening.

The mounting hole location

should be approximately 2-4”

from the top and bottom of the

sleeve.

MOUNTING

HOLES

PLASTIC ANCHORS

WOOD SCREW

ALTERNATE

FASTENING METHODS

(Field Supplied)

TOGGLE BOLT

EXPANSION

ANCHOR BOLT

SCREWS

WALL

SLEEVE

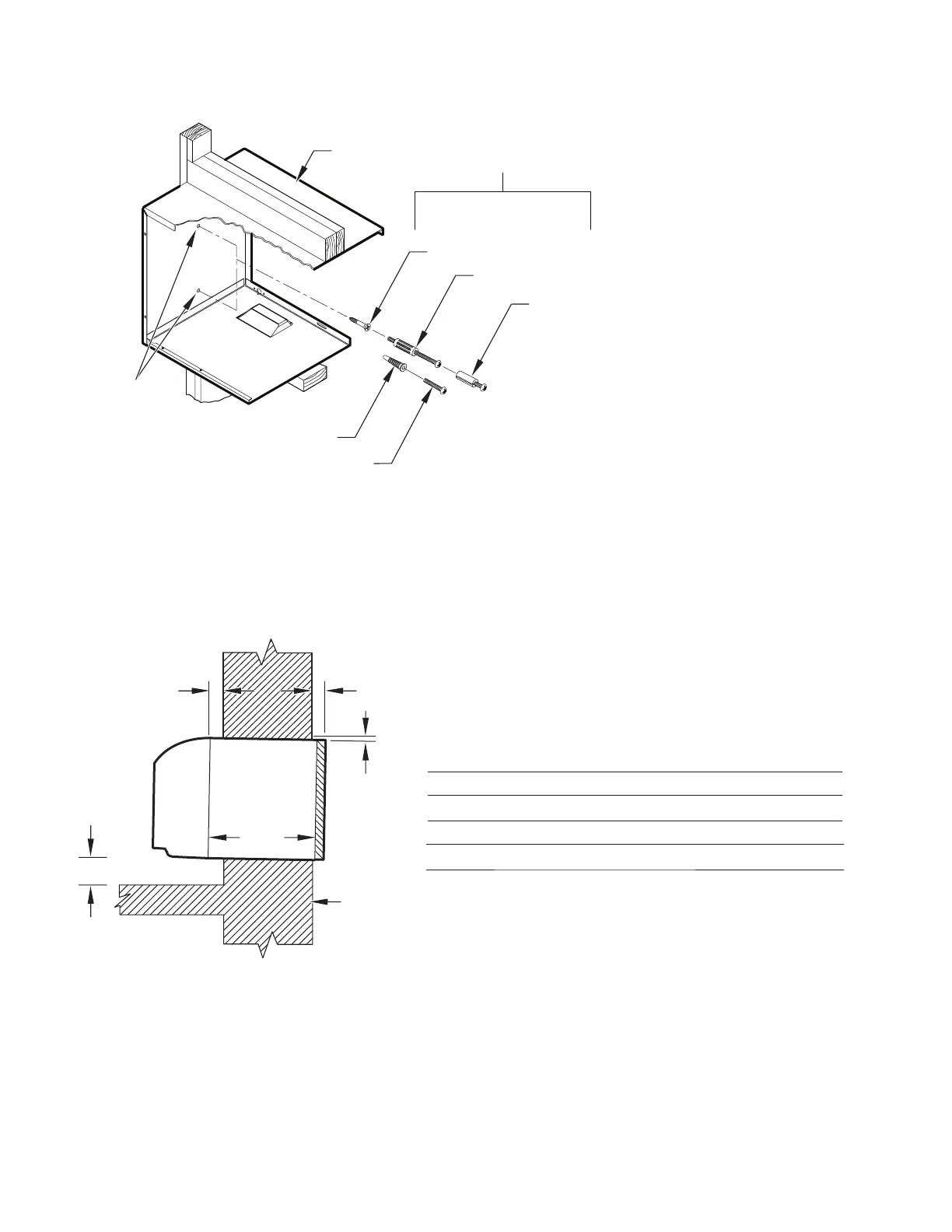

C.4.3 Wall Sleeve Installation Instructions (PDXWS)(Cont)

¼"

13-¾"

Dimension*

Allow

for floor

finishing

Allow

for wall

finishing

(Minimum)Min. Max.

No Accessories

¼"

MIN.

WALL

¼"

---

With Subbase 1-¾" 3-½" 5"

With Lateral Duct ¾"

Allow

for proper

drainage

(Front-to-Back)

¼"

---

* If more than one accessory is to be used, use the maximum

dimension. If the wall thickness is more than 13-¾" - (A+ ¼"),

a sleeve extension must be used.

Wall Sleeve Tilt ¼"

---------

Figure C.4.3.6 Wall Sleeve Attachment

Figure C.4.3.7 Block and Brick Veneer
