C. INSTALLATION OF THE UNIT

C.4.3 Wall Sleeve Installation Instructions (PDXWS)(Cont)

OPTIONAL

SUBBASE

LEVELING SCREW

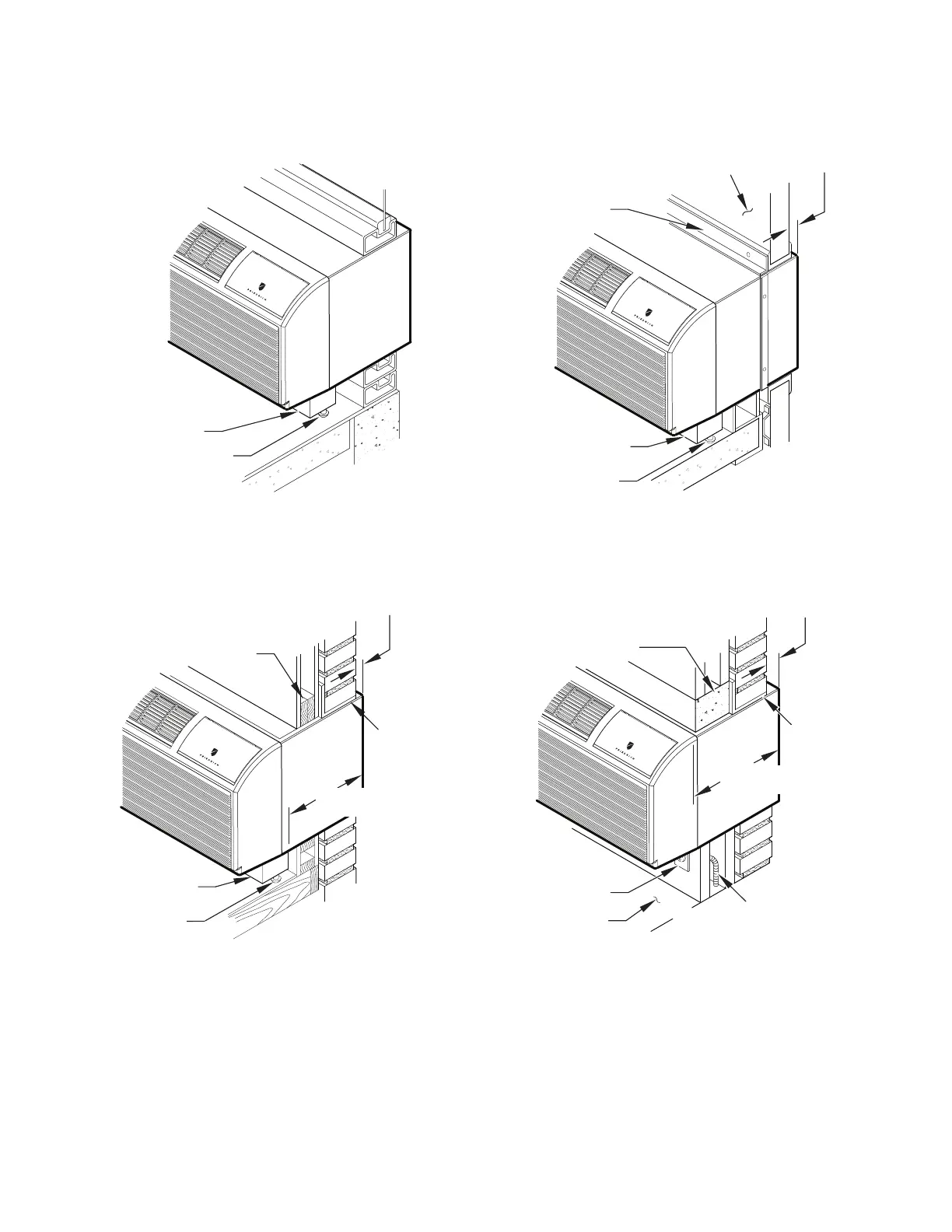

Figure C.4.3.2 (Panel Wall)

1/4" MIN

PROJECTION

OPTIONAL

SUBBASE

LEVELING SCREW

WOOD FRAME

STEEL

LINTEL

11" MIN.

WITH SUBBASE

Figure C.4.3.4 Frame and Brick Veneer

CASE FLANGE

(BY OTHERS)

WALL OR

WINDOW

1/4" MIN

PROJECTION

OPTIONAL

SUBBASE

LEVELING SCREW

Figure C.4.3.3 Curtain Wall

1/4" MIN

PROJECTION

STEEL

LINTEL

FINISHED FLOOR

POWER SUPPLY CONDUIT

(SUPPLIED BY INSTALLER)

RECEPTACLE

CONCRETE LINTEL

13-3/4" MIN.

WITHOUT

SUBBASE

Figure C.4.3.5 Block and Brick Veneer

NOTE: Follow all wall system manufacturer installation instructions. For sunrooms and modular buildings, adhere to their installation

instructions for supporting and sealing sleeve to their frames. All wall and window/wall installations must provide for proper drainage. In

applications where the drain holes on the PTAC wall sleeve are not exposed beyond the wall an internal drain system is recommended. It is

the installer’s responsibility to ensure there is adequate drainage for the PTAC unit.

Figure C.4.3.6 Wall Sleeve Attachment

Figure C.4.3.7 Block and Brick Veneer
