ROUTINE MAINTENANCE

Cord Routing Change-Kuhl

Unplug unit.

WARNING

Electrical Shock Hazard

Make sure your electrical receptacle has the

same configuration as your air conditioner’s

plug. If different, consult a Licensed Electrician.

Do not use plug adapters.

Do not use an extension cord.

Do not remove ground prong.

Always plug into a grounded 3 prong outlet.

Failure to follow these instructions can result in

death, fire, or electrical shock.

For convenience and optimum appearance, the direction that the power cord

exits the unit may be changed from left to right by following the procedure below.

Select the exit location on the left or right based on proximity to the power outlet.

The 30 Amp power Cord installation is shown in Figure 404 If your unit plug is in

this conguration, you do not need to rotate plug in order to change the routing.

You can skip to step 5.

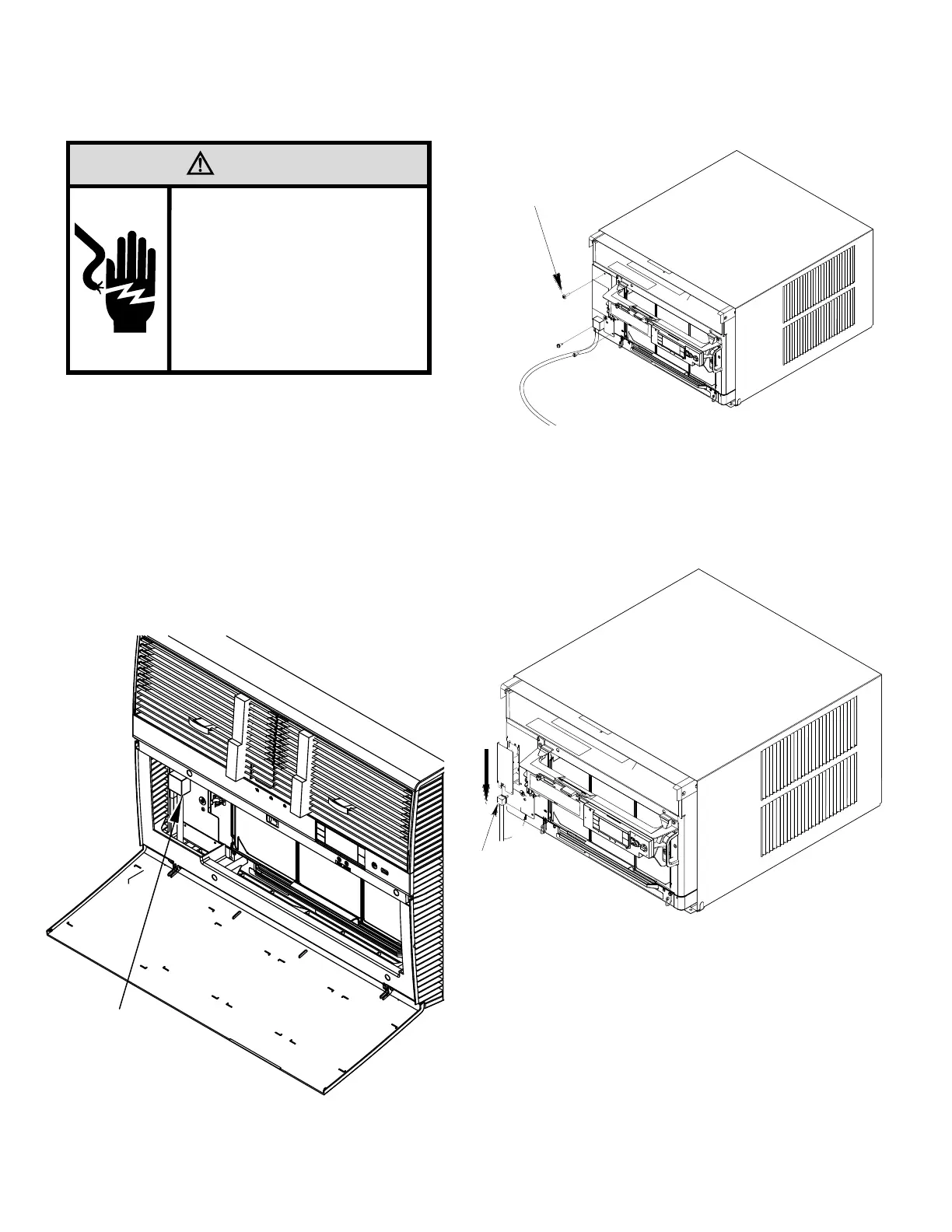

STEP 1 Remove the 3 screws as shown from the access panel.

Save to reinstall later.

Figure 405

Figure 404

STEP 2. Pull electrical cord strain relief downward until free and rotate 90

degrees to the right.

Figure 406

ELECTRICAL CORD

STRAIN RELIEF

PANEL SCREWS (3)

90°

PLUG MOUNTED

MIDWAY ON PANEL
