43 43

WARNING

ELECTRIC SHOCK HAZARD

Disconnect power to the unit before

servicing. Failure to follow this warning

could result in serious injury or death.

Remove the decorative front cover.

1. Remove the FRONT PANEL. Using the handles, pull panel out until it is released from the two retaining snaps. Place the cover aside

carefully.

2. Remove the lter by pulling it from the handles releasing it from the slots on the frame. Wash the lter with water to remove all dust

and then rinse, remove water excess and let it dry. Do not twist. Remove the intake grill by applying slight outward pressure on the

chassis removal handles and popping grill out out of slots.

3. Remove the 4 screws and remove the decorative front assembly.

Install the decorative front cover.

1. Install the front decorative assembly with 4 screws .

2. Install the lter by inserting each tab in their respective slot.

3. Install Intake grill by applying slight outward pressure on the chassis removal handle.

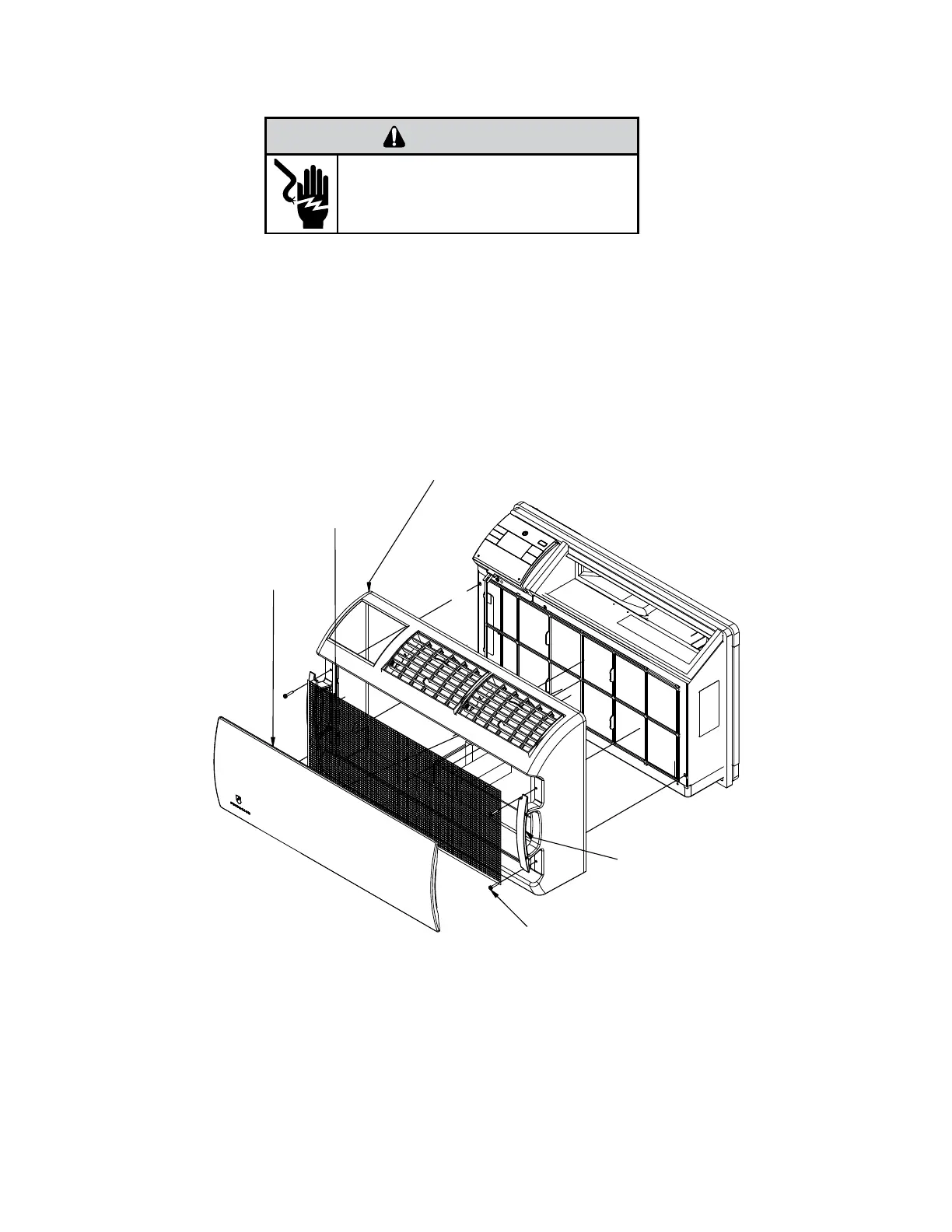

Figure 403 (Remove and Install the Decorative Front Assembly)

Screws (4 ea)

Decorative Front Assembly

Filter

Intake Grill

Chassis removal

Handel

ROUTINE MAINTENANCE

Remove and Install Front Cover -Wallmaster
