FREE
LOCK
O
P
E
N

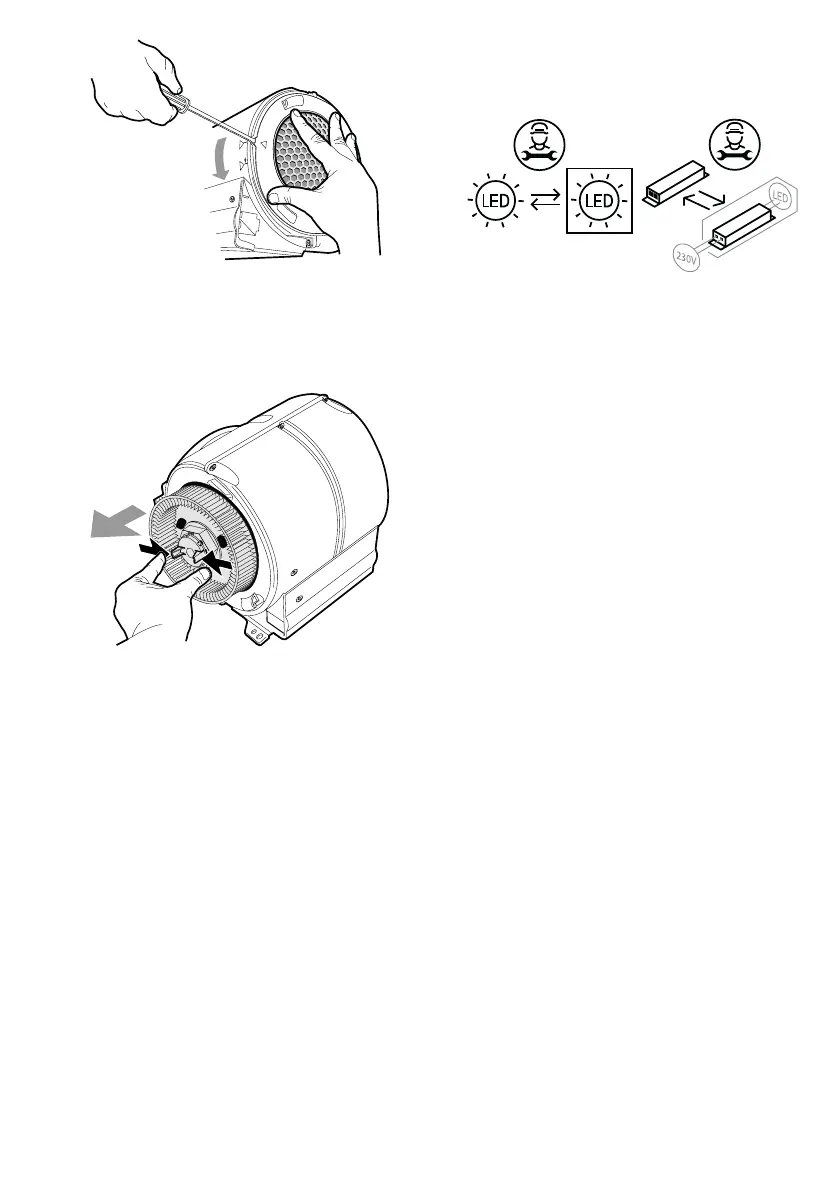

Fig. 11
The side grilles are detached by lifting up
the stop lug with a screwdriver and rotating
the grille in the direction of the arrow, Fig.
11.
Fig. 12
The impellers are removed by pressing to-
gether the plastic tabs in the centre of the
wheels while simultaneously pulling the
wheels outwards, Fig. 12.
The impeller and side grilles should be clea-
ned in warm water with washing-up liquid.
The parts can also be washed in a
dishwasher.
After washing and drying, assemble the
parts in reverse order. Check that the parts
snap into place and that the motor assem-
bly and electrical connector are properly
seated.
REPLACEMENT OF LED LIGHTING
AND LED DRIVER
Fig. 13
Attention!
The replacement of the LED lighting and
LED driver must be carried out by an
authorised professional. Contact the ser-
vice organisation.
If the lighting and driver are damaged, they
must be replaced with an equivalent special
light fixture and driver from the manufactu-
rer or its service agent.
991.0357.839/D000000006696/180165/2021-09-24 15
