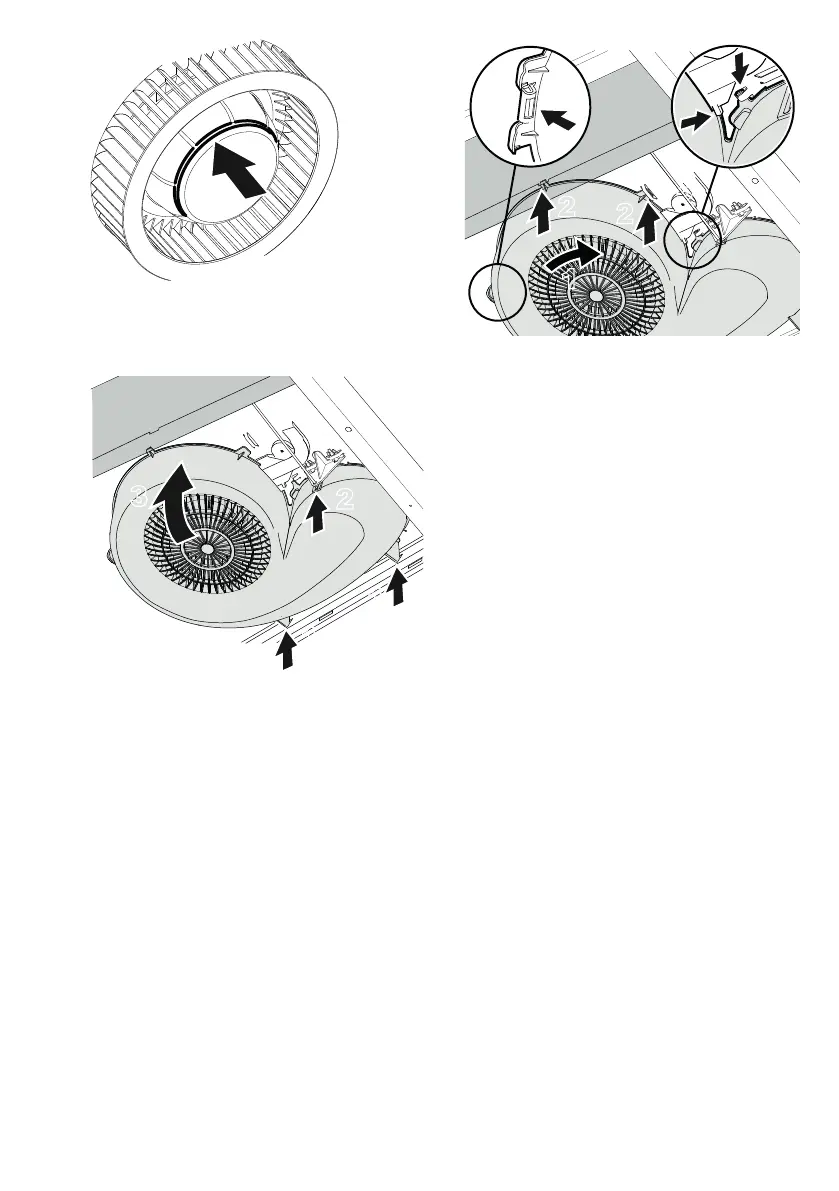

Fig. 6
Refit the impeller. Make sure that it is level
in the groove on the motor.
1
1
3
2
1
Fig. 7
Refit the blower by inserting the supports in
the rear of the fan (1). Check that the dam-
per shaft is correctly positioned in the blo-
wer (2). Bend up the blower (3). Fig. 7
2
2
2
3
1
Fig. 8
Make sure all the snap retainers fit onto the
cooker hood lugs. Twist the blower (1) into
the lugs (2). Press the blower’s snap retai-
ner back into the lug (3).Fig. 8
Attention!
Check that the parts snap firmly into
place.
