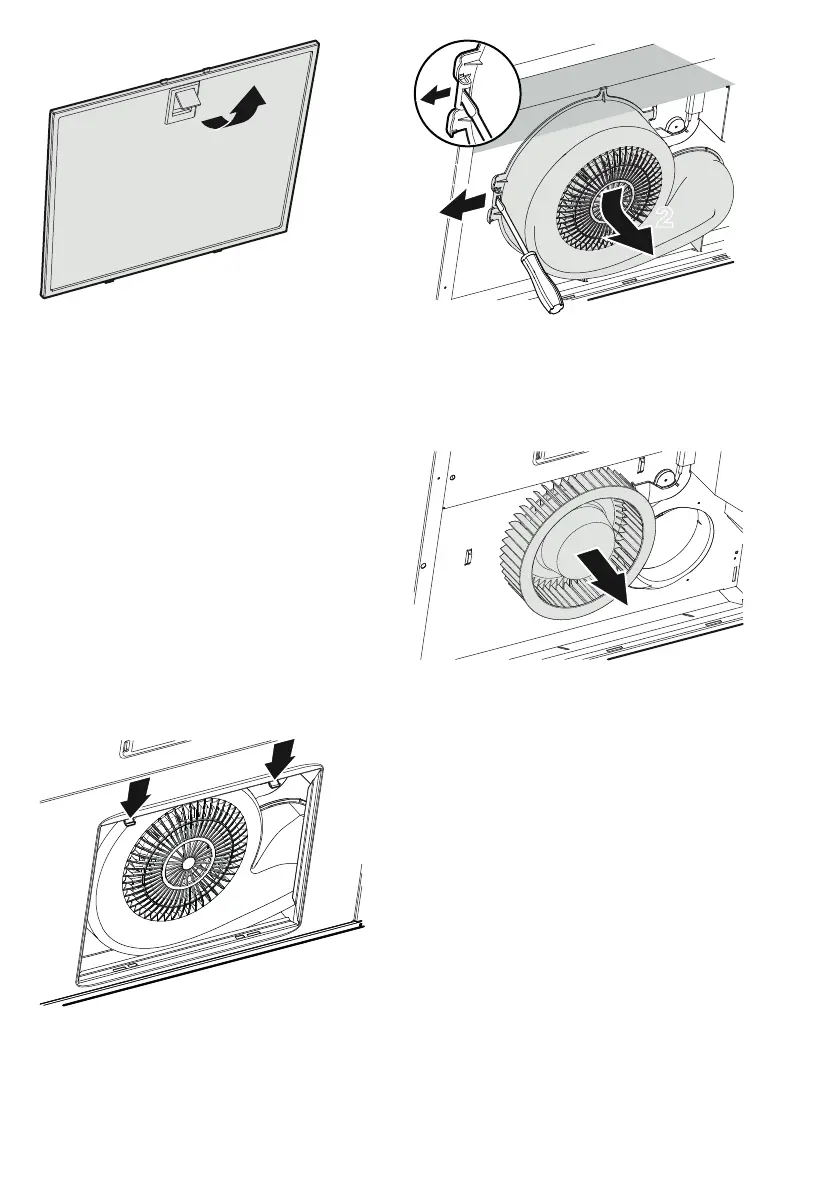

Fig. 2
Remove the grease filter by opening the
snap retainer, Fig. 2.
Handle the filter carefully, taking care not
to bend it.
Soak the filter in a solution of warm water
and washing-up liquid. The filter can also be
washed in a dishwasher.
Refit the grease filter after cleaning, making
sure it snaps firmly into place.
Cleaning other parts
Attention!
Check that the damper is in the closed
position when removing and refitting it.
The interior of the cooker hood, removable
parts and the damper should be cleaned at
least twice a year.
Fig. 3
Remove the bottom plate by pushing the
snap retainers in the direction of the ar-
rows.Fig. 3
1
2
Fig. 4
Release the blower by bending the snap re-
tainer outwards in the direction of the ar-
row (1) and pushing the blower away from
you and down (2),Fig. 4.
Fig. 5
Release the impeller by pulling in the direc-
tion of the arrow, Fig. 5
Clean the bottom plate, blower and impeller
using warm water and washing-up liquid.
The blower and impeller can also be wash-
ed in a dishwasher. After washing and dry-
ing, assemble the parts in reverse order.
