- 26 -

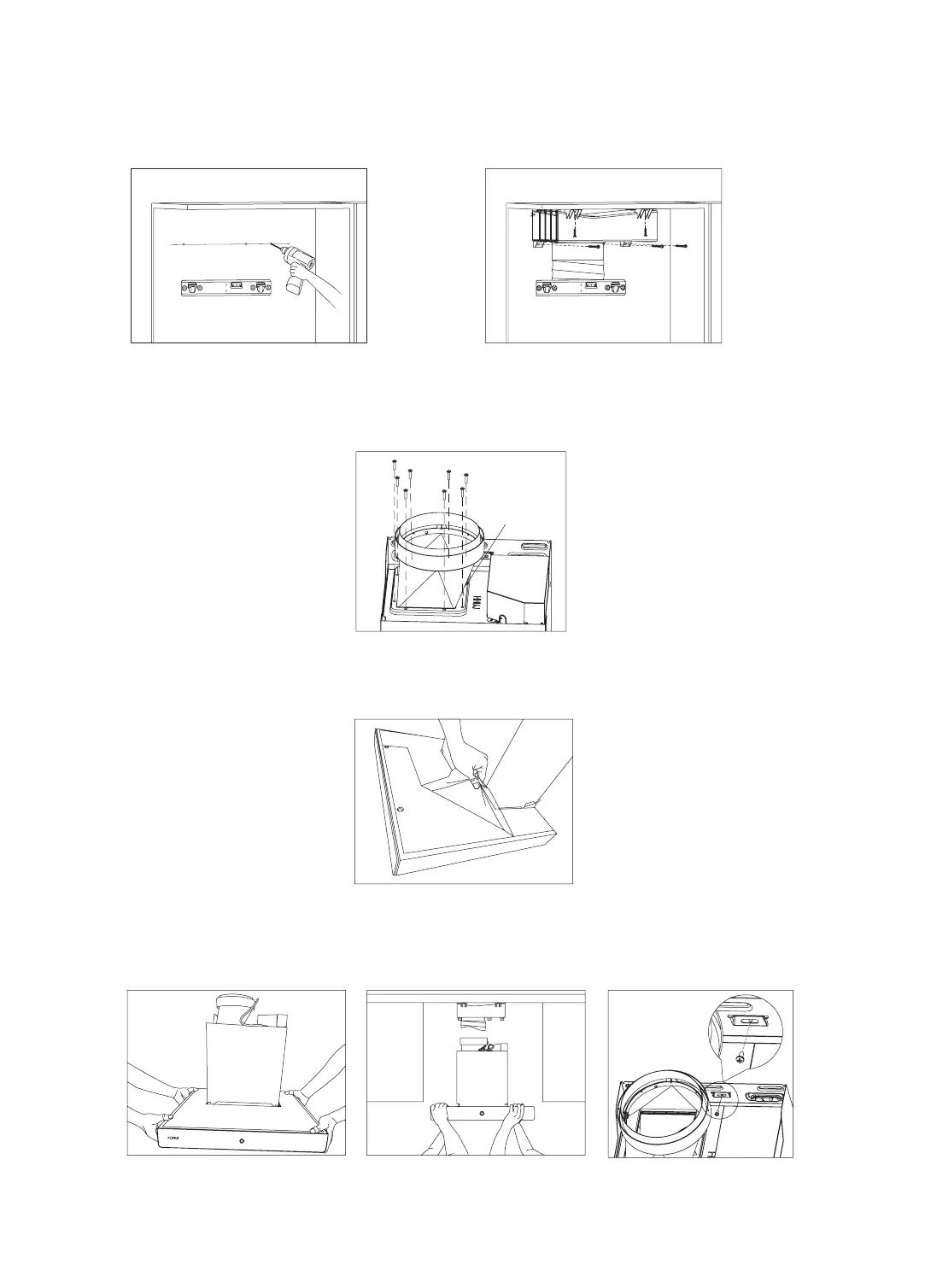

6. Fix the wind-guide box: directly screw the gypsum board expansion tube (φ4×40mm) into the
wall surface with a screwdriver at the drilling mark (3 on the back wall and 2 on the ceiling), and then
x the wind-guide box with the hook screw (ST4.2 × 36 mm);
7. . Install the exhaust hood: x the exhaust hood and sealing ring at the air outlet of the main body with
8 exhaust hood screws (M4 × 18 mm);
The bevel
should towards
the electrical box
8. Remove the protective lm from the top plate surface;
9.
Lift the main body, hang the back hook hole onto the hook, conrm the level of the main
body with a level bar, and x the fan frame and the hook with the fan frame screw (M4 ×
6mm);
